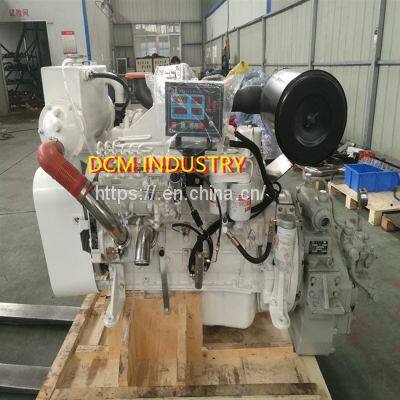

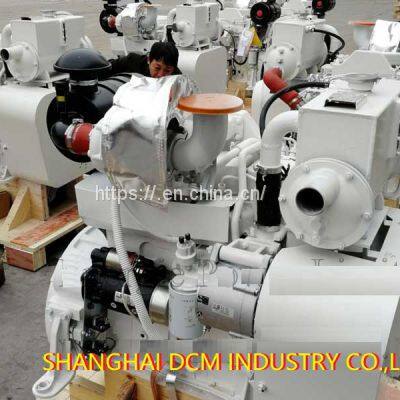

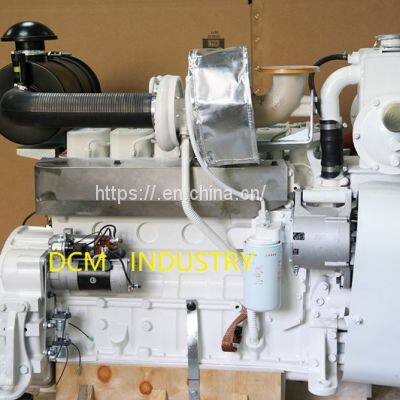

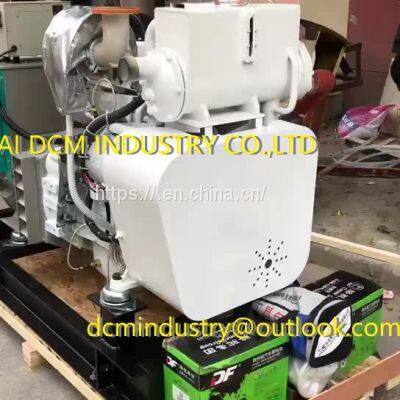

Cummins Marine Generator 50kVA Ccfj40j

Cummins Marine Generator 50kVA Ccfj40j thumbnail-1
Cummins Marine Generator 50kVA Ccfj40j thumbnail-2
Cummins Marine Generator 50kVA Ccfj40j thumbnail-3
Cummins Marine Generator 50kVA Ccfj40j thumbnail-4
Cummins Marine Generator 50kVA Ccfj40j thumbnail-5
Cummins Marine Generator 50kVA Ccfj40j photo-1
Cummins Marine Generator 50kVA Ccfj40j photo-2
Cummins Marine Generator 50kVA Ccfj40j photo-3
Cummins Marine Generator 50kVA Ccfj40j photo-4
Cummins Marine Generator 50kVA Ccfj40j photo-5
US$ 5000 - 200000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CUMMINS
Place of Origin:
China
Model Number:
Cummins Marine Generator 50kVA Ccfj40j
Contact Supplier Request Quote Chat Now
Shanghai DCM Diesel Engine Industry Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CUMMINS
Place of Origin China
Model Number Cummins Marine Generator 50kVA Ccfj40j
Type Container Ship
Condition New
Fuel Type Diesel
Hull Material IRON
DWT 10000 - 34999t
Length (m) < 50m
Year Built 2022
TEU 10
Draft 10

Cummins Marine Generator 20KW CCFJ20

WE CAN SUPPLY MARINE GENERATOR FOR CUMMINS BRAND, DEUTZ BRAND and other brand made in China.

Engine Features:
1. Genuine Marine diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner


8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adaptors and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9.Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
10.Digital Control panel

Controller Brand: Smartgen
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.

MODEL STANDBY PRIME ENGINE MODEL DIMENSION (L*W*H)mm
50Hz kVA KW kVA KW
SDEM-CCF30 41.25 33 37.5 30 4BTA3.9-GM47 1600*730*1200
SDEM-CCF40 55 44 50 40 4BTA3.9-GM47 1600*730*1200
SDEM-CCF50 68.75 55 62.5 50 6BT5.9-GM83 2000*730*1200
SDEM-CCF64 87.5 70 80 64 6BT5.9-GM83 2000*730*1200
SDEM-CCF75 103.75 83 93.75 75 6BTA5.9-GM100 2000*850*1200
SDEM-CCF100 137.5 110 125 100 6CT8.3-GM115 2150*850*1400
SDEM-CCF120 165 132 150 120 6CTA8.3-GM155 2150*850*1400
SDEM-CCF140 187.5 150 175 140 6LTAA8.9-GM200 2400*1000*1550
SDEM-CCF160 220 176 200 160 6LTAA8.9-GM200 2400*1000*1550
SDEM-CCF200 275 220 250 200 NTA855-D(M) 2600*1000*1700
SDEM-CCF250 343.75 275 312.5 250 NTA855-D(M) 2850*1000*1700
50kva cummins marine generator for sale:


1. Specification of genset
Gensets model CCFJ40J
Prime power 50KVA
Rated voltage 400V
Rated current 72A
Rated frequency(HZ) 50
Rated speed 1500rpm
Power factor 0.8(lagging)
Dimensions(mm) (L×W×H) 1610×900×1280
Genset Weight(kg) 1000
2. Specification of diesel engine
Engine brand Cummins
Engine model 4BTA3.9-GM47
Number of Cylinders 4
Cylinder arrangement Vertical in-line
Cycle Four stroke
Air Intake System Turbocharged and aftercooled
Fuel System AD type fuel pump
Bore×Stroke (mm×mm) 102 x 120
Displacement (Liter) 3.9
Compression Ratio 16.5:1
Speed Governor Electronic
Cooling System By heat exchanger
Total lubrication system capacity (L) 16.4
Fuel Consumption at 100% Load (g/kwh) 213
Starting Method DC24V electrical starting
3. Specification of alternator
Alternator brand Marathon
Alternator model MP-H-40-4
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
4. Specification of control system
? Microcomputer digital control, and reliable work.
? Digital display of parameters of diesel engine, and integration of measuring and monitoring.
? Modularization of functional configuration, and ntegration of product structures.
? Resistance to vibration, humidity, salt mist and high/low temperature.
? Powerful ability to resist interference, convenient installation and use, and high performance-price ratio.
? Remote monitoring of running parameters.
? Automatic zero set of lubricating oil pressure.
? Accumulation of running period of diesel engine.
? Automatic shut offs on high temperature & low oil pressure.


SHANGHAI  STONE  DIESEL  ENGINE  CO.,   LTD  CAN  SUPPLY  CUMMINS  MARINE  GENERATOR


Model Rated  Power  (kw/rpm) Max  Power  (kw/rpm) Intake  Way
6BTA5.9-M150 110/2200 120/2200 Turbocharged  and  intercooled
6CTA8.3-M188 138/2328 152/2328 Turbocharged  and  intercooled
6CTA8.3-M205 151/2328 166/2328 Turbocharged  and  intercooled
6CTA8.3-M220 164/1800 180/1800 Turbocharged  and  intercooled
6CTAA8.3-M260 190/2134 209/2134 Turbocharged  and  air  to  air  intercooled
6LTAA8.9-M300 224/1800 245/1800 Turbocharged  and  air  to  air  intercooled
6LTAA8.9-M315 230/2134 253/2134 Turbocharged  and  air  to  air  intercooled
Note:   All  the  aboce  engine  model  have  got  the  type  approval  certification  of  CCS.   Some  have  procured  IMO  emission  certification.






DCEC-Cummins  marine  auxiliary  engine


Model Rated  Power  (kw/rpm) Max  Power  (kw/rpm) Intake  Way
4BTA3.9-GM47 47/1500 52/1500 Turbocharged  and  intercooled
6BT5.9-GM83 83/1500 92/1500 Turbocharged
6BTA5.9-GM100 100/1500 110/1500 Turbocharged  and  intercooled
6BTAA5.9-GM115 115/1500 127/1500 Turbocharged  and  air  to  air  intercooled
6CT8.3-GM115 115/1500 127/1500 Turbocharged
6CTA8.3-GM155 155/1800 170/1500 Turbocharged  and  intercooled
6CTA8.3-GM155(IMO) 155/1500 170/1500 Turbocharged  and  intercooled
6LTAA8.9-GM200(IMO) 200/1500 220/1500 Turbocharged  and  air  to  air  intercooled
4BT3.9-GM65 65/1800 71/1800 Turbocharged  and  intercooled
6BT5.9-GM100 100/1800 110/1800 Turbocharged
6BTA5.9-GM120 120/1800 132/1800 Turbocharged  and  intercooled
6CT8.3-GM129 129/1800 142/1800 Turbocharged
6CTA8.3-GM175(IMO) 175/1800 193/1800 Turbocharged  and  intercooled
6LTAA8.9-GM129(IMO) 215/1800 237/1800


Product Tags: MARINE ENGINE , CUMMINS ENGINE , Shanghai Stone Diesel Engine Co., Ltd can supply cummins marine engine 4BTA3.9 6BTA5.9 6CTA8.3 6LTAA8.9 NTA855 KTA19 KTA38 KTA50 1. CCS Class IMO certificate 2. BV class IMO2 certificate 3. Assemble with gearbox and PTO 4. W
