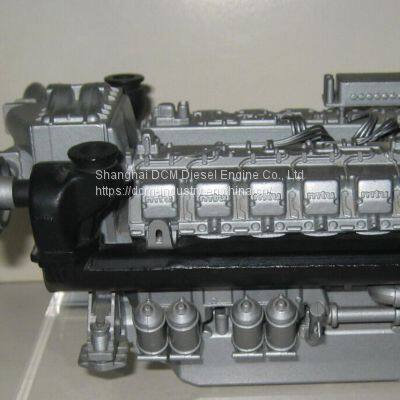

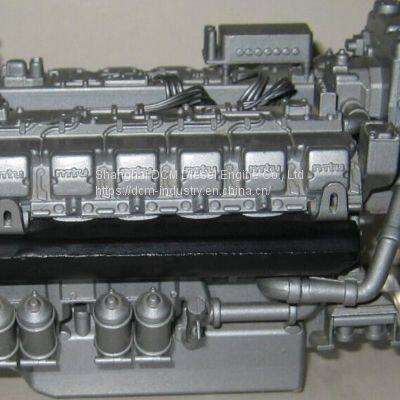

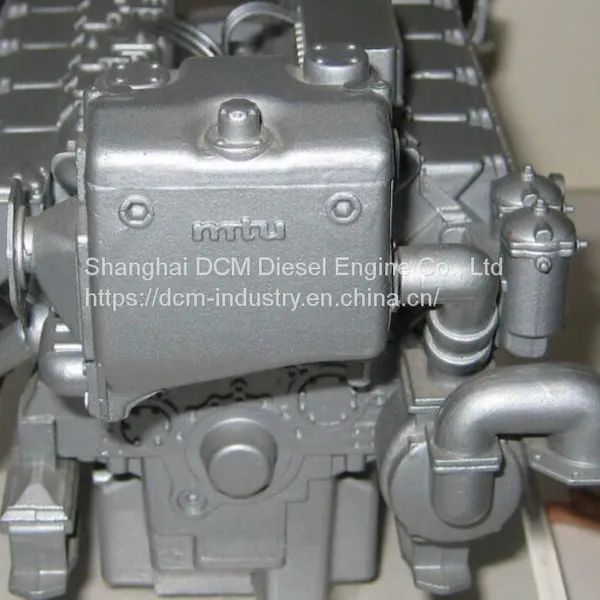

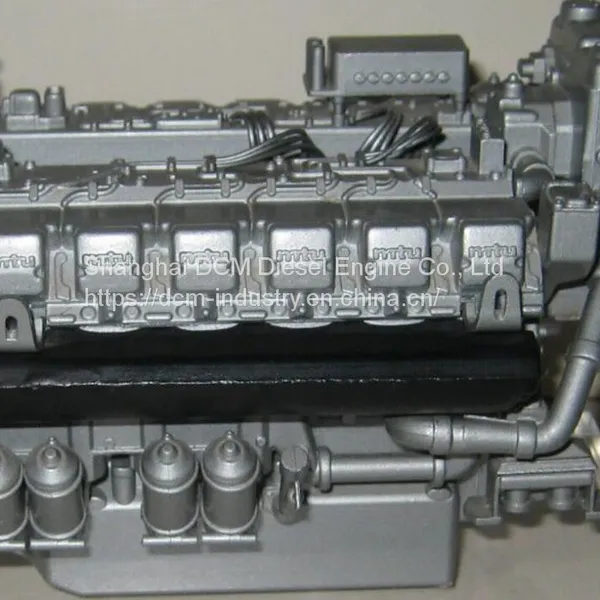

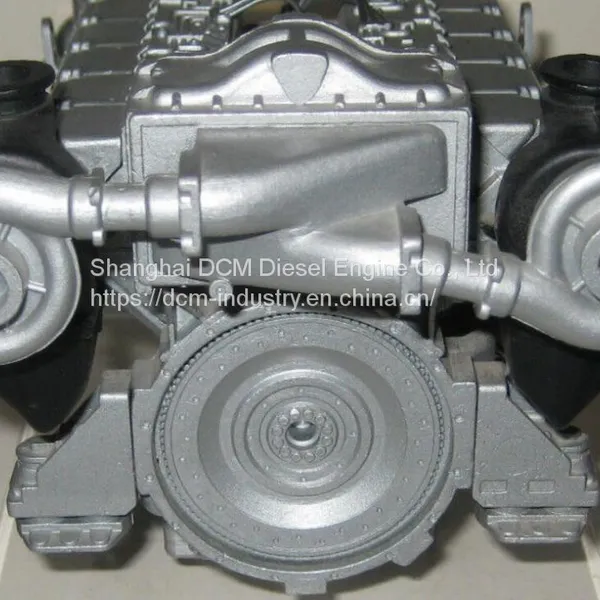

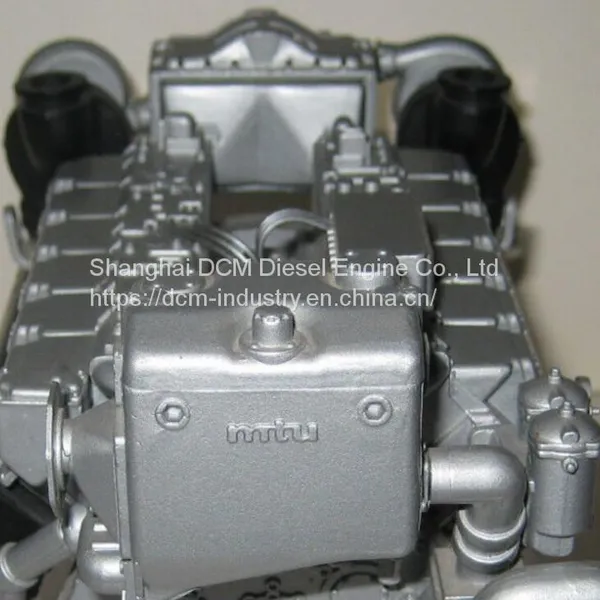

12V396TB93 Navy Diesel Motor
- shanghai
- T/T
- 15 days
You May Like
Product Details
| Brand Name | MTU | Place of Origin | Germany | |
| Model Number | 12V396TB93 Navy Diesel Motor | Part | Other, engine |
Product Description
MTU 396 Series engine
| 396TB Series engine used for yacht or naval ships | |||||
| Model | Rating power (kW/r/min) | Dimension( mm) | N.W( kg) | ||
A | B | C | |||
| 16V396TB84 | 2040/1940 | 3550 | 1420 | 1910 | 7000 |
| 12V396TB94 | 1920/2100 | 2984 | 1480 | 2000 | 6200 |
| 16V396TB94 | 2560/2100 | 3876 | 1480 | 2060 | 7640 |
| 396SE Series engine used for submarine | |||||
| Model | Rating power (kW/r/min) | Dimension( mm) | N.W( kg) | ||
A | B | C | |||
| 8V396SE84 | 600/1800 | 2380 | 1650 | 2450 | 5400 |
| 12V396SE84 | 1000/1800 | 2984 | 1480 | 2000 | 7400 |
| 16V396SE84 | 1350/1800 | 3876 | 1480 | 2060 | 8800 |
| Item | Engine type | Part name | Part no. | Note |
| 1 | MTU 396 | Piston | 555 030 02 18 | Bolt connect |
| 2 | MTU 396 | Piston | 555 030 05 18 | Bolt connect |
| 3 | MTU 396 | Piston | 555 030 01 18 | Bolt connect |
| 4 | MTU 396 | Piston | 555 030 61 17 | Welding type |
| 5 | MTU 396 | Piston | 555 030 2218 | Bolt connect |
| 6 | MTU 396 | Piston | 555 030 40 17 | Welding type |
| 7 | MTU 396 | Piston rings | Match piston (555 030 40 17) | |
| 8 | MTU16V396TE84 | Piston rings | 006 037 09 19 | Top rings |
004 037 24 19 | Middle rings | |||
009 037 85 18 | Third rings | |||
| 9 | MTU 396 | Cylinder liner | 555 011 15 10 | |
| 10 | MTU 396 | Cylinder liner Std | 555 011 16 10 | |
| 11 | MTU 396 | Cylinder liner 0-1 | 555 011 17 10 | |
| 12 | MTU 396 | Cylinder liner 0-2 | 555 011 18 10 | |
| 13 | MTU 396 | Cylinder liner 1-1 | 555 011 19 10 | |
| 14 | MTU 396 | Cylinder liner 1-2 | 555 011 20 10 | |
| 15 | MTU 396 | Cylinder liner 2-2 | 555 011 21 10 | |
| 16 | MTU 396 | Cylinder head | 555 010 51 41 | |
| 17 | MTU 396 | Cylinder head | 555 016 08 01 | |
| 18 | MTU 396 | Cylinder head | 555 010 15 21 | |
| 19 | MTU 396 | Cylinder head | 555 010 72 21 | |
| 20 | MTU8V396TE94 | turbocharger | ZR140 | |
| 21 | MTU16V396TE94 | Charge air cooler | 003 098 32 20 | |
| 22 | MTU16V396TE54 | turbocharger | ZR170 | |
| 23 | MTU16V396SE84 | turbocharger | 511 020 09 08 | Left ZR170 |
511 020 10 08 | Right ZR170 | |||
| 24 | MTU16V396TE94 | turbocharger | 511 020 71 07 | Left ZR170 |
511 020 74 07 | Right ZR170 | |||
| 25 | MTU 396 | turbocharger | K42(φ135) | |
| 26 | MTU 396 | valve rotary parts | 000 053 31 35 | |
| 27 | MTU 396 | Injector assembly | 555 010 00 51 | |
| 28 | MTU 396 | Drain Valve part | 556 000 10 17 | |
| 29 | MTU 396 | Drain Valve part | 559 000 10 17 | |
| 30 | MTU 396 | Seawater pump | 555 200 11 01 | |
| 31 | MTU 396 | Seawater pump | 555 200 22 01 | |
| 32 | MTU 396 | Water pump | 555 200 01 01 | |
| 33 | MTU 396 | Crankshaft bearing | 555 030 75 40 | |
| 34 | MTU 396 | Con rod bearing | 555 030 21 60 | |
| 35 | MTU 396 | Support plate | 550 016 07 18 | |
| 550 016 08 18 | ||||
| 36 | MTU 8V396 | Turbocharger parts | 53371202116 | KKK brand |
| 37 | MTU 8V396 | Turbocharger parts | 53421232000 | KKK brand |
| 38 | MTU 8V396 | Turbocharger parts | 53317110502 | KKK brand |
| 39 | MTU 396 | Crankshaft bearing | 550 030 89 40 | |
| 40 | MTU 396 | Con rod bearing | 550 030 18 66 | |
| 41 | MTU 396 | Con rod bearing | 550 030 19 66 | |
| 42 | MTU 396 | Crankshaft bearing | 555 030 75 40 | |
| 43 | MTU 396 | Crankshaft bearing | 555 030 76 40 | |
| 44 | MTU 396 | Crankshaft bearing | 555 030 77 40 | |
| 45 | MTU 396 | Crankshaft bearing | 555 030 78 40 | |
| 46 | MTU 396 | Crankshaft bearing | 555 030 79 40 | |
| 47 | MTU 396 | Con rod bearing | 555 030 21 60 | |
| 48 | MTU 396 | Con rod bearing | 555 030 22 60 | |
| 49 | MTU 396 | Con rod bearing | 555 030 23 60 | |
| 50 | MTU 396 | Con rod bearing | 555 030 24 60 | |
| 51 | MTU 396 | Con rod bearing | 550 030 18 66 | |
| 52 | MTU 396 | Crankshaft bearing | 550 030 89 40 | |
| 53 | MTU 396 | Crankshaft bearing | 550 030 90 40 | |
| 53 | MTU 396 | Crankshaft bearing | 550 030 93 40 | |
| 55 | MTU 396 | turbocharger parts | 5342 123 2016 | KKK brand |
| 56 | MTU 396 | gasket | 550 098 02 80 | |
| 57 | MTU 396 | turbocharger parts | 5232 150 00 08 | KKK brand (4LE/4LF/4) |
| 58 | MTU 396 | fuel filter element | 000 092 17 05 | |
| 59 | MTU 396 | oil filter element | 001 184 72 25 | |
| 60 | MTU 396 | air filter element | C30850/2 | |
| 61 | MTU183TA12 | fuel filter element | BFU811 | |
| 62 | MTU183TA12 | oil filter element | H12110/2X | |
| 63 | MTU183TA12 | air filter element | C23440/3 | |
| 64 | MTU 396 series | Valve seat (inlet) | 550 053 1231 | |
| 65 | MTU 396 series | Valve seat (outlet) | 550 053 0232 | |
| 66 | MTU 396 series | Valve guide (inlet) | 555 053 3244 | 555 053 4244 |
| 67 | MTU 396 series | Valve guide (outlet) | 555 053 2744 | 555 053 8630 |
| 68 | MTU 396 | Inlet Valve | 550 053 04 01 | |
| 69 | MTU 396 | Outlet Valve | 555 053 01 05 | |
| 70 | MTU 396 series | connecting rod | 555 030 2020 | |
| 71 | MTU 396 series | connecting rod bolts | 870 038 0171 | matched with555 030 2020 |
| 72 | MTU 396 series | connecting rod | 555 030 2120 | |
| 73 | MTU 396 series | connecting rod bolts | 555 038 0271 | matched with555 030 2120 |
| 74 | MTU 396 | connecting rod | 555 030 20 20 | |
| 75 | MTU 396 | connecting rod bolts | 870 038 01 71 | |
| 76 | MTU 396 | connecting rod | 555 030 21 20 | |
| 77 | MTU 396 | connecting rod bolts | 555 038 02 71 | |
| 78 | MTU 396 | spring retainer | 550 053 00 25 | |
| 79 | MTU 396 | pipe | 550 016 04 32 | |
| 80 | MTU 396 | protective sleeve | 555 017 00 53 | |
| 81 | MTU 396 | pipe | 550 031 01 22 | |
| 82 | MTU 396 | piston rings | 00 80376419 | |
| 83 | MTU 396 | piston rings | 00 80376319 | |
| 84 | MTU 396 | piston rings | 00 90378518 | |
| 85 | MTU 396 | piston rings | 00 10376019 | |
| 86 | MTU 396 | piston rings | 00 30373819 | |
| 87 | MTU 396 | piston rings | 5500370018 | |
| 88 | MTU 396 | piston rings | 01 20371418 | |
| 89 | MTU 396 | piston rings | 00 80379219 | |
| 90 | MTU 396 | piston rings | 00 90373419 | |
| 91 | MTU 396 | piston rings | 01 20372918 | |
| 92 | MTU 396 | piston rings | 00 90373519 | |
| 93 | MTU 396 | piston rings | 01 20370618 | |
| 94 | MTU 396 | piston rings | 01 20370819 | |
| 95 | MTU 396 | piston rings | 00 80375819 | |
| 96 | MTU 396 | piston rings | 00 60379019 | |
| 97 | MTU 396 | piston rings | 00 10377619 | |
| 98 | MTU 396 | piston rings | 00 20376019 | |
| 99 | MTU 396 | piston rings | 00 80370018 | |
| 100 | MTU 396 | piston rings | 00 20371319 | |
| 101 | MTU 396 | piston rings | 00 60379119 | |
| 102 | MTU 396 | piston rings | 11-03431-0019 | |
| 103 | MTU 396 | cover Ex | 550 018 00 02 | 000 011 00 32 |
| 104 | MTU 396 | o ring cylinder liner | 555 011 01 59 | |
| 105 | MTU 396 | sleeve | 550 011 01 54 | |
| 106 | MTU 396 | stud | 550 033 00 74 | |
| 107 | MTU 396 | camshaft bearing | 550 051 17 10 | |
| 108 | MTU 396 | roller bearing | 000 981 88 01 | |
| 109 | MTU 396 | roller bearing | 205412 203014 | |
| 110 | MTU 396 | roller bearing | 000 981 88 01 | |
| 111 | MTU 396 | ball bearing | 550 981 07 25 | |
| 112 | MTU 396 | sleeve | 550 031 01 53 | |
| 113 | MTU 396 | screw | 555 031 00 71 | |
| 114 | MTU 396 | con rod bolt | 870 038 01 71 | |
| 115 | MTU 396 | small end bush | 555 038 03 50 | |
| 116 | MTU 396 | support ce ring | 550 017 02 60 | |
| 117 | MTU 396 | ce ring | 000 017 06 60 | |
| 118 | MTU 396 | pipe | 550 187 24 01 | |
| 119 | MTU 396 | valve rotator | 000 053 36 35 | |
| 120 | MTU 396 | valve stem seal | 000 053 03 61 | |
| 121 | MTU 396 | protective sleeve | 555 017 00 53 | |
| 122 | MTU 396 | gasket | 550 016 01 21 | |
| 123 | MTU 396 | washer | 559 990 00 40 | |
| 124 | MTU 396 | washer | 550 900 15 40 | |
| 125 | MTU 396 | screw | 559 990 00 01 | |
| 126 | MTU 396 | washer | 000137 008203 | |
| 127 | MTU 396 | screw | 555 990 01 04 | |
| 128 | MTU 396 | tab washer | 556 994 03 30 | |
| 129 | MTU 396 | gasket | 556 142 01 57 | |
| 130 | MTU 396 | sleeve | 550 091 06 53 | |
| 131 | MTU 396 | drive shaft | 555 064 00 03 | |
| 132 | MTU 396 | damper strip | 537 078 00 38 | |
| 133 | MTU 396 | damper strip | 537 078 00 38 | |
| 134 | MTU 396 | rorary seal | 000 201 75 19 | |
| 135 | MTU 396 | shaft seal | 007 997 72 47 | |
| 136 | MTU 396 | angler ball bearing | 000 981 35 27 | |
| 137 | MTU 396 | pressure relief valve | 550 180 10 15 | |
| 138 | MTU 396 | plug | 550 997 05 30 | |
| 139 | MTU 396 | sealing ring | 007603 018101 | |
| 140 | MTU 396 | plug in pipe | 556 203 17 53 | |
| 141 | MTU 396 | gasket | 550 184 00 61 | |
| 142 | MTU 396 | pressure relief valve | 550 180 12 15 | |
| 143 | MTU 396 | pressure limiting valve | 555 180 00 15 | |
| 144 | MTU 396 | flat tube oil cooler | 002 188 36 01 | |
| 145 | MTU 396 | valve cone | 555 184 00 32 | |
| 146 | MTU 396 | pressure sping | 000 184 18 20 | |
| 147 | MTU 20V 956 TB92 | piston | ||
| 148 | MTU 20V 956 TB92 | clip for exhaust pipe | 000 559 09 07 | |
| 149 | MTU 20V 956 TB92 | con rod bush | 584 038 01 50 | 974.770 0 |
| 150 | MTU 20V 956 TB92 | camshaft bearing | 580 051 04 50 | 132.115544 |
| 151 | MTU 20V 956 TB92 | con rod bearing | 580 030 06 66 | 1663.4562 |
| 152 | MTU 20V 956 TB92 | main bearing | 580 033 38 30 | 193.212/ 194.212180.14268 |
| 153 | MTU 20V 956 TB92 | main bearing assembly | 584 030 17 04 | 213.0295.8868 |
| 154 | MTU 20V 956 TB92 | valve spring (outer) | 580 053 00 20 | 74.216.90264.65 |
| 155 | MTU 20V 956 TB92 | valve spring (inter) | 580 053 01 20 | 364.590.3 |
| 156 | MTU20V956TE94 | Turbocharger | AGL340 | |
| 157 | MTU20V956TB92 | Turbocharger | AGL340 | |
| 158 | MTU20V956TB92 | Inlet valve | 580 053 01 01 | |
| 159 | MTU20V956TB92 | Outlet valve | 580 053 02 05 | |
| 160 | MTU20V956TB92 | Bearing for camshaft | 580 051 00 50 | |
| 161 | MTU20V956TB92 | Seawater pump(suck) | 580 200 51 01 | |
| 162 | MTU20V956TB92 | Lubrication pump | 580 180 28 01 | |
| 163 | MTU20V956TB92 | Cooled water pump | 584 200 05 01 | Left |
584 200 06 01 | Right | |||
| 164 | MTU20V956TB92 | Connecting rod | ||
| 165 | MTU20V956TB92 | Fuel pump | 590 180 07 01 | |
| 166 | MTU20V956TB92 | Engine block | ||
| 167 | MTU20V956TB92 | Crankshaft assembly | ||
| 168 | MTU20V956TB92 | cylinder liner | ||
| 169 | MTU 1163 | Piston crown | 584 037 16 25 |
Contact Us
- Shanghai DCM Diesel Engine Co., Ltd
- Contact nameDCM INDUSTRY Chat Now
- Phone86-135-64760257
Product Categories
| CUMMINS ENGINE | Deutz air cooler diesel engine | MTU engine parts |
New Products
-
MTU ENGINE PARTS
-
MTU Parts
-
Cummins NT855 M270/ NT855 M Marine Engine
-
Cummins NT855 M300/ NT855-M Marine Engine
-
Cummins NTA855 M350/ NTA855 M Marine Engine
-
Favorites Share Cummins NTA855 M400/ NTA855 M Marine Engine
-
Cummins KT19 M/ KTA19 M425 Marine Engine
-
Cummins KTA19 M/ KTA19 M500 Marine Engine
-
Cummins KTA19 M3/ KTA19 M600 Marine Engine
-
Kta38 M1/ Kta38 M1000 Cummins Main Marine Propulsion Diesel Engine
-
Cummins Marine Engine (4BTA3.9 6BTA5.9 6CTA8.3 6LTAA8.9 N855 K19 K38 M11)
-
Cummins Marine Generator 50kVA Ccfj40j
Popular Searches
- diesel generator
- power diesel generator
- diesel engine
- marine engine
- power generator
- generator set
- cummins engine
- silent diesel generator
- marine diesel engine
- diesel genset
- soundproof diesel generator set
- diesel generator set
- soundproof generator
- marine motor
- mwm
- diesel generator engine
- engine set
- faw engine
- horsepower
- mtu generator
- generating drive
- nature gas engine
- large horsepower
- high-power genset
- marine equipment
- gasoline engine
- cummins diesel engine
- fishing boat
- power generator
- propeller shaft
Recommended Products
- Caterpillar Gas Engine G3608 G3606 Pipe 4W-7322
- Remanufactured Cylinder Head for CAT C27 C32 Engines
- For CAT High Quality 4226493 422-6493 Air Compressor for 305/306 Small Excavators
- for Vogel Paver 2100-3 96.2951.1000 054808 Hydraulic Gear Pump 9629511000 Gear Pump
- CAT Original Gasket 7E-3478
- Perkins Engine 404D-22 404D-22T Electronic Speed Controller T434827, U85186160
- Wilson P550E3 Generator Set Perkins 2506 Starter Motor CH12807
- Advantages of Cummins QSK45 Engine Supply
- CAT Grade Control Grader 140GC 120GC Drive Shaft 597-0843
- CAT PERKINS Engine C18 2806 Turbocharger T403095, 358-4920
- C15 C18 2506 2806 Engine Particle Trap T402574, 390-0645
- Caterpillar 120H Grader Oil Pressure Control Valve 107-0543 CAT Original Parts
Find Similar Products By Category
- Industrial Equipment & Components > Engine & Part > Engine Parts
Product Tags:
Shanghai DCM Diesel Engine Co., Ltd
Business license
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
DCM INDUSTRY
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
