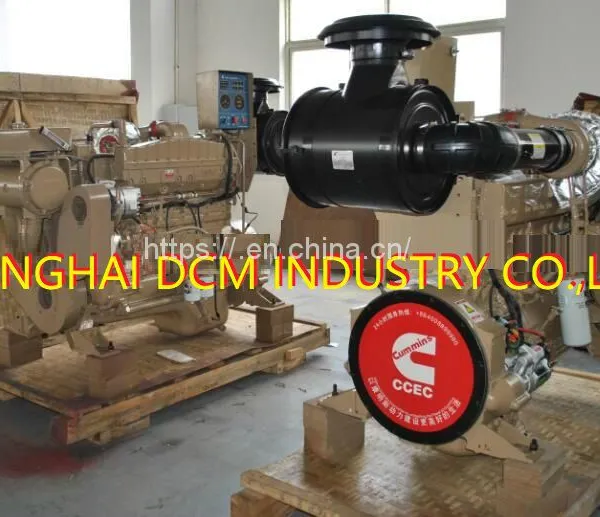

Favorites Share Cummins NTA855 M400/ NTA855 M Marine Engine photo-2

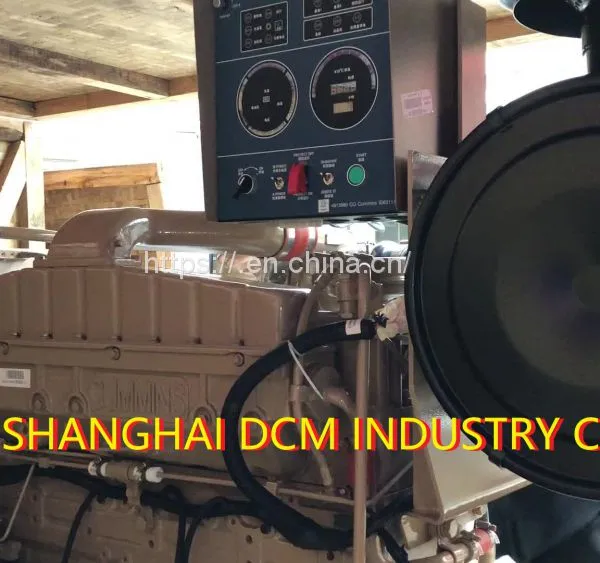

Favorites Share Cummins NTA855 M400/ NTA855 M Marine Engine photo-3

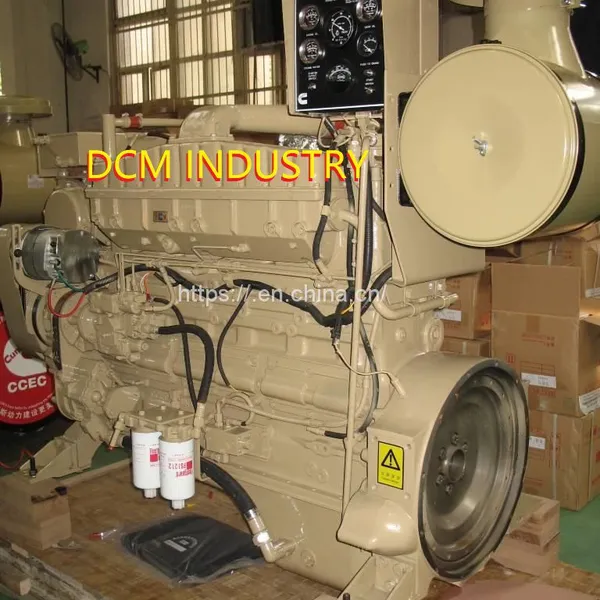

Favorites Share Cummins NTA855 M400/ NTA855 M Marine Engine photo-4
Favorites Share Cummins NTA855 M400/ NTA855 M Marine Engine photo-5
US$ 5000 - 200000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CUMMINS
Place of Origin:
China
Model Number:
Cummins NTA855 M400/ NTA855 M Marine Engine
Contact Supplier Request Quote Chat Now
Shanghai DCM Diesel Engine Industry Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CUMMINS
Place of Origin China
Model Number Cummins NTA855 M400/ NTA855 M Marine Engine
Type Container Ship
Condition New
Fuel Type Diesel
Hull Material IRON
DWT 10000 - 34999t
Length (m) < 50m
Year Built 2022
TEU 10
Draft 10

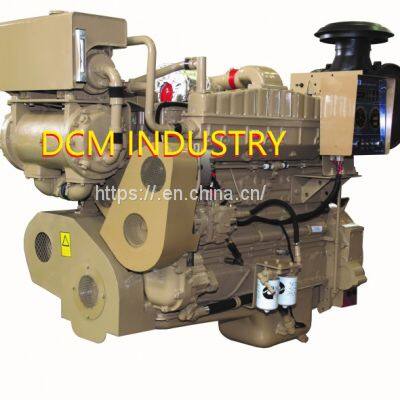

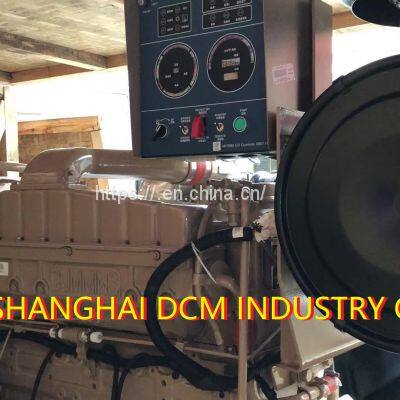

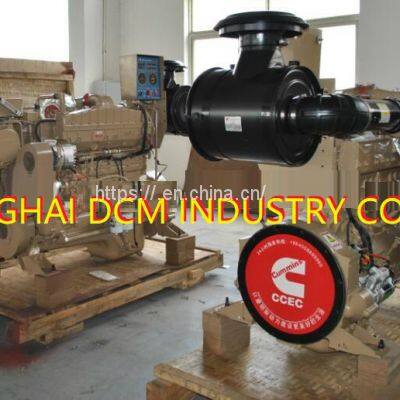

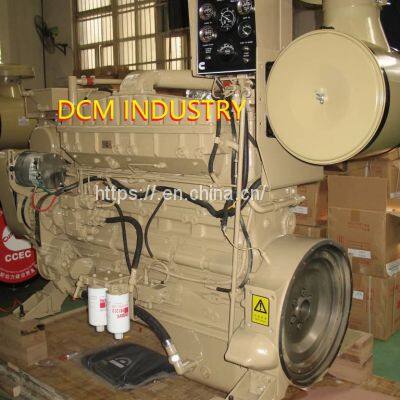

Shanghai DCM DIESEL ENGINE Co., Ltd CAN SUPPLY CUMMINS NTA855 M400/ NTA855 M MARINE ENGINE
General Engine Data
Engine Model NTA855-M ( cummins NTA855 M400 marine engine)
Displacement: 14.0 litre [855 in. 3] Aspiration: Turbocharged/Aftercooled
Bore: 139 mm [5.50 in. ]
Stroke: 152 mm [6.00 In. ] kW [HP] @ RPM
Fuel System: PT Advertised Power 298 [400] @ 2100
Cylinders: 6
Rating Type Continuous
Rated Engine Power kW [HP] 298 [400]
Rated Engine Speed RPM 2100
High Idle Speed Range RPM 2289 - 2457
Idle Speed Range RPM 575 - 675
Engine Torque N. M [ft lb] 1356 [1000]
Brake Mean Effective Pressure kPa [PSI] 1216 [176]
Compression Ratio 14.5: 1
Piston Speed m sec [ft min] 10.7 [2100]
Average Noise Level dBA at 1m 99
Maximum Torque Capacity from Front of Crank
Firing Order 1-5-3-6-2-4
Fuel System
Fuel Consumption litre hr [GPH] 79.0 [20.9]
Approximate Fuel Flow to Pump litre hr [GPH] 238 [63]
Fuel ail Pressure Range kPa [PSI] 1109 [161]
Weights (Dry)
Engine Only kg [lb] 1303 [2870]
With Heat Exchanger Cooling System kg [lb] +127 [280]
NTA855-M450 450HP/1800RPM
NTA855-M SO13458 336KW/1800RPM IMO
NTA855-M SO13497 305KW/1744RPM
NTA855-M SO13510 271KW/1744RPM
NTA855-M SO13520 298KW/2100RPM IMO
NT855-M SO13638 110KW/1600RPM
NT855-M SO13639 140KW/1600RPM
NT855-M SO13640 160KW/1600RPM
NTA855-M SO13649 198KW/1600RPM
NTA855-M SO13650 220KW/1744RPM
NTA855-M SO13660 271KW/1744RPM
NTA855-M SO13662 336KW/2100RPM
NTA855-M SO13710 336KW/2100RPM
NTA855-M SO13711 298KW/1800RPM
N855-M SO13715 298KW/1800RPM IMO2
N855-M SO13716 261KW/1800RPM IMO2
N855-M SO13717 298KW/2100RPM IMO2
NT855-M SO13725 183KW/1744RPM
NTA855-M SO13732 110KW/1600RPM
KTA19-M SO40001 351KW/1800RPM IMO
KTA19-M SO40002 373KW/1800RPM IMO
KT19-M SO40021 317KW/1800RPM IMO
KTA19-M3 SO40028 447KW/1800RPM IMO
KTA19-M SO40036 410KW/2100RPM IMO
KTA19-M3 SO40044 477KW/1800RPM IMO
KTA19-M4 SO40077 522KW/2100RPM IMO
KTA19-M SO40197 351KW/1800RPM IMO
KTA19-M3 SO40200 434KW/1744RPM
KTA19-M3 SO40201 407KW/1744RPM
KTA19-M SO40203 339KW/1744RPM
KTA19-M SO40204 318KW/1744RPM
KT19-M SO40213 288KW/1744RPM
KT19-M SO40301 317KW/1800RPM IMO
KT19-M SO40302 288KW/1744RPM
KTA19-M SO40303 373KW/1800RPM IMO
KTA19-M SO40304 339KW/1744RPM
KTA19-M3 SO40305 407KW/1744RPM
KT19-M SO40336 373KW/1800RPM IMO
KTA19-M SO40366 339KW/1700RPM
KTA19-M3 SO40370 447KW/1800RPM IMO
KTA19-M3 SO40372 447KW/1800RPM BV
KTA19-M SO40373 258KW/1600RPM
KTA19-M SO40374 237KW/1600RPM
KTA19-M3 SO40379 373KW/1800RPM IMO
KT19-M SO40381 193KW/1600RPM
KTA19-M SO40382 373KW/1800RPM BV
KT19-M SO40397 220KW/1744RPM
KT19-M SO40398 203KW/1600RPM
KTA19-M SO40405 300KW/1744RPM
KTA19-M SO40406 288KW/1744RPM
KTA19-M SO40407 265KW/1744RPM
KTA19-M SO40413 373KW/1800RPM
K19-M SO40415 373KW/1800RPM IMO2
K19-M SO40416 410KW/2100RPM IMO2
K19-M SO40417 447KW/1800RPM IMO2
K19-M SO40418 477KW/1800RPM IMO2
KTA19-M SO40425 237KW/1600RPM
KTA19-M SO40426 258KW/1600RPM
K19-M SO40433 477KW/1800RPM IMO2
K19-M SO40436 373KW/1800RPM IMO2
K19-M SO40437 447KW/1800RPM IMO2
KT38-M SO60008 596KW/1800RPM IMO
KTA38-M0 SO60135 671KW/1800RPM IMO
KT38-M SO60137 543KW/1744RPM
KTA38-M1 SO60155 746KW/1800RPM IMO
KT38-M SO60170 582KW/1800RPM IMO
KTA38-M2 SO60180 895KW/1800RPM IMO
KT38-M SO60186 407KW/1744RPM
KTA38-M2 SO60240 895KW/1800RPM BV
KTA38-M1 SO60243 746KW/1800RPM
KT38-M SO60266 440KW/2100RPM
KTA38-M2 SO60270 895KW/1800RPM
KTA38-M2 SO60285 895KW/1800RPM BV
KTA38-M2 SO60287 407KW/1600RPM
KT38-M SO60288 350KW/1600RPM
K38-M SO60293 1007KW/1900RPM IMO2
K38-M SO60294 895KW/1800RPM IMO2
K38-M SO60298 671KW/1600RPM IMO2
K38-M SO60300 1007KW/1900RPM IMO2
K38-M SO60301 970KW/1800RPM IMO2
K38-M SO60302 560KW/1600RPM IMO2
K38-M SO60303 596KW/1800RPM IMO2
K38-M SO60304 634KW/1800RPM IMO2
K38-M SO60305 746KW/1800RPM IMO2
K38-M SO60306 821KW/1800RPM IMO2
K38-M SO60307 821KW/1800RPM IMO2
