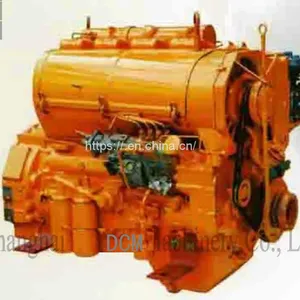

Deutz Diesel Engine Bf8l413f Bf8l513 thumbnail-1
Deutz Diesel Engine Bf8l413f Bf8l513 thumbnail-2
Deutz Diesel Engine Bf8l413f Bf8l513 thumbnail-3
Deutz Diesel Engine Bf8l413f Bf8l513 photo-1
Deutz Diesel Engine Bf8l413f Bf8l513 photo-2
Deutz Diesel Engine Bf8l413f Bf8l513 photo-3
US$ 5000 - 200000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
DEUTZ
Place of Origin:
China
Model Number:
BF8L413F
Contact Supplier Request Quote Chat Now
Shanghai DCM Diesel Engine Industry Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DEUTZ
Place of Origin China
Model Number BF8L413F
After-sales Service Provided Overseas service center available
Warranty 18 months
Weight 550kg
Dimension(L*W*H) 1150/731/1036
Condition New
Fuel Diesel
Start Electric Start
Cold Style Air-Cooled
Stroke 4 Stroke
Usage Other
Cylinder Multi-cylinder

We can supply deutz engine bf8l413f f8l413f diesel engines.

Model intake way displacement(l) working condition rated power(kw) standby power(kw)

1500(50Hz) 1800(60Hz) 1500(50Hz) 1800(60Hz)
F8l413f natural 12.763 continuous power 117 137 129 151
Real power 122 143 129 151
Over load power 129 151
F10L413f natural 15.953 continuous power 147 171 162 188
Real power 154 179 162 188
Over load power 162 188
Bf8l513 turbocharger 12.763 continuous power 147
Real power
Over load power
Bf8l513c turbo-intercooler 12.763 continuous power 174
Real power
Over load power
F12L413f turbocharger 19.144 continuous power 176 206 194 227
Real power 184 218 194 227
Over load power 194 227
Bf6m1015 turbo-intercooler 11.906 continuous power 195 211 215 232
Real power 210 228 231 250
Over load power 231 250
Bf6m1015c turbo-intercooler 11.906 continuous power 250 271 275 298
Real power 285 310 314 341
Over load power 314 341
Bf6m1015cp turbo-intercooler 11.906 continuous power 303 320 333 352
Real power 338 351 372 386
Over load power 365 384
Bf8m1015c turbo-intercooler 15.874 continuous power 333 362 366 398
Real power 380 413 418 454
Over load power 418 454
Bf8m1015cp turbo-intercooler 15.874 continuous power 399 426 439 469
Real power 448 473 493 520
Hc4132 turbo-intercooler 7.9 continuous power 175 192
Real power
Over load power deutz f6l413f 6 125/130 77-141/1500 613 1047*1038*860
Deutz f8l413f 8 125/130 103-180/1500-2650 817 1211*1038*860
Deutz bf8l413f 8 125/130 12.76 235/2500 1080/1650 1452*1138*1042 920
Deutz f12L413f 12 125/130 282/1500 1226 1575*1038*956
Deutz f12L413fc 12 125/130 282/1500 1226 1575*1038*956
Deutz bf6l513 6 125/130 10.68 177/2300 905/1500 1506*790*1018 865
Deutz bf8l513 8 125/130 12.76 243/2300 1170/1500 1452*1138*1042 920
Deutz bf8l513fl 8 125/130 235/2300 1170 1575*1038*956
Deutz bf12L513flc 12 125/130 19.144 386/2300 1900 1580*1192*1099
Deutz bf6l513flrc 6 125/130 10.676 177/2100 941 1506*790*1036 865

Model Bore/Stroke Displacement Kw/Rpm Peak Torque Overall Dimension Net Weight
F4L413FR 125/130 6.381 51/1500 408 N.m 1150/731/1036 550
F4L413FR 125/130 6.381 94/2500 408 N.m 1150/731/1036 550
F6L413F 125/130 9.572 77/1500 613 N.m 1047/1038/860 605
F6L413F 125/130 9.572 141/2500 613 N.m 1047/1038/860 605
F8L413F 125/130 12.763 103/1500 760 N.m 1211/1038/860 770
F8L413F 125/130 12.763 188/2500 760 N.m 1211/1038/860 770
BF8L413F 125/130 12.763 129/1500 980 N.m 1202/1168/1156 950
BF8L413F 125/130 12.763 235/1800 980 N.m 1202/1168/1156 950
F10L413F 125/130 15.953 129/1500 1020 N.m 1412/1038/937 940
F10L413F 125/130 15.953 235/2500 1020 N.m 1412/1038/937 940
F12L413F 125/130 19.144 154/1500 1226 N.m 1575/1038/956 1120
F12L413F 125/130 19.144 282/2500 1226 N.m 1575/1038/956 1120
BF12L413F 125/130 19.144 194/1500 1470 N.m 1573/1192/1050 1250
BF12L413F 125/130 19.144 353/2500 1470 N.m 1573/1192/1050 1250
BF12L413FC 125/130 19.144 230/1500 1695 N.m 1580/1192/1140 1400
BF12L413FC 125/130 19.144 386/2500 1695 N.m 1580/1192/1140 1400
BF4L513R 125/130 6.381 69/1500 585 N.m 1122/765/1001 550
BF4L513R 125/130 6.381 118/2300 585 N.m 1122/765/1001 550
BF8L513 125/130 12.763 213/2300 1060N.m
1500-1700rpm		 1201/1148/1042 920
BF8L513 125/130 12.763 235/2300 1170N.m
1500-1700rpm		 1201/1148/1042 920
BF8L513 125/130 12.763 137/1500 1200N.m
1500-1700rpm		 1190/1168/1156 950
BF8L513 125/130 12.763 243/2300 1200N.m
1500-1700rpm		 1190/1168/1156 950
BF8L513LC 125/140 13.744 192/1500 1506N.m
1500-1700rpm		 1202/1188/1156 970
BF8L513LC 125/140 13.744 265/2100 1506N.m
1500-1700rpm		 1202/1188/1156 970
BF12L513C 125/130 19.144 230/1500 1900N.m
1500-1700N.m		 1580/1192/1140 1400
BF12L513C 125/130 19.144 406/2100 1900N.m
1500-1700N.m		 1580/1192/1140 1400
F8L513 128/130 13.382 103/2300 890N.m
1500-1700rpm		 1211/1038/860 770
F8L513 128/130 13.382 188/2300 890N.m
1500-1700rpm		 1211/1038/860 770
F12L513 128/130 20.074 154/2300 1335N.m
1500-1700rpm		 1500/1038/860 1130
F12L513 128/130 20.074 282/2300 1335N.m
1500-1700rpm		 1500/1038/860 1130
