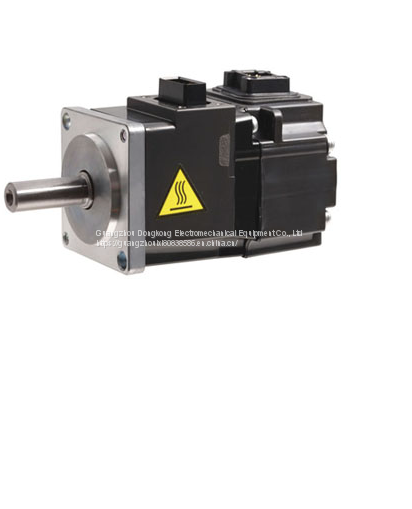

Mitsubishi Servo Motor HG-SR301J With Oil Seal

Mitsubishi servo motor HG-SR301J with oil seal

HG-SR301J parameter description: medium inertia | medium capacity, with oil seal, rated speed 1000r/min, rated output 3Kw Mitsubishi standard motor.

Mitsubishi servo motor standard HG-SR301J

[Voltage level] 200V

[Applicable drive]

. CC-Link IE field network interface

MR-J4-350GF、MR-J4-350GF-RJ、MR-J4-350B-RJ010

SSCNET III/H interface: MR-J4-350B, MR-J4-350B-RJ

General interface: MR-J4-350A, MR-J4-350A-RJ

[Power supply capacity] 4.8kVA

[Continuous characteristic] Rated output 3Kw, rated torque 28.6 N.m

[Torque] 85.9N. m

[Rated speed] 1000r/min

[Speed] 1500r/min

[Instantaneous allowable speed] 1725r/min

[Power ratio under continuous rated torque] Standard 82.3kW/s, with electromagnetic brake 75.3kW/s

[Rated current] 13A

[Current] 42A

[Inertia J] HG-SR301J standard 99.7, HG-SR301BJ with electromagnetic brake 109

[* * * Load inertia ratio] less than 15 times

[Speed and position detector] Position and increment share a 22-bit encoder (resolution of servo motor per revolution: 4194304pulses/rev)

[Oil seal] None

[Heat resistance level] 155 (F)

[Structure] Fully enclosed self-cooling (protection grade: IP67)

[Vibration level] V10

[Allowable load of shaft] L 79mm, radial 2058N, axial 980N

[Weight] HG-SR121 standard 20kg, HG-SR121B with electromagnetic brake 26kg.

1. Mitsubishi full series PLC, frequency converter, human-machine interface, servo system.

2. Xinjie PLC, frequency converter, human-machine interface and servo system.

3. Delta PLC, frequency converter, human-machine interface and servo system.

4. Wellington human-machine interface and Hytec human-machine interface.

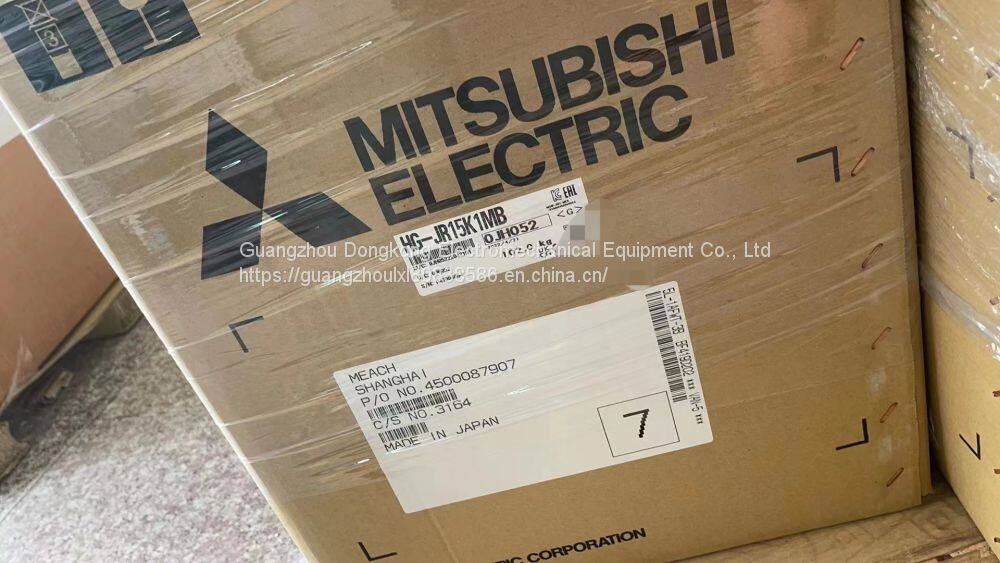

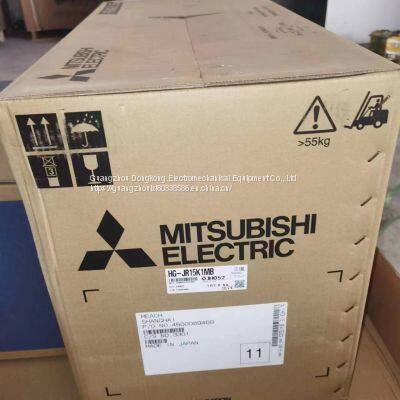

Mitsubishi servo motor HG-JR15K1MB;
