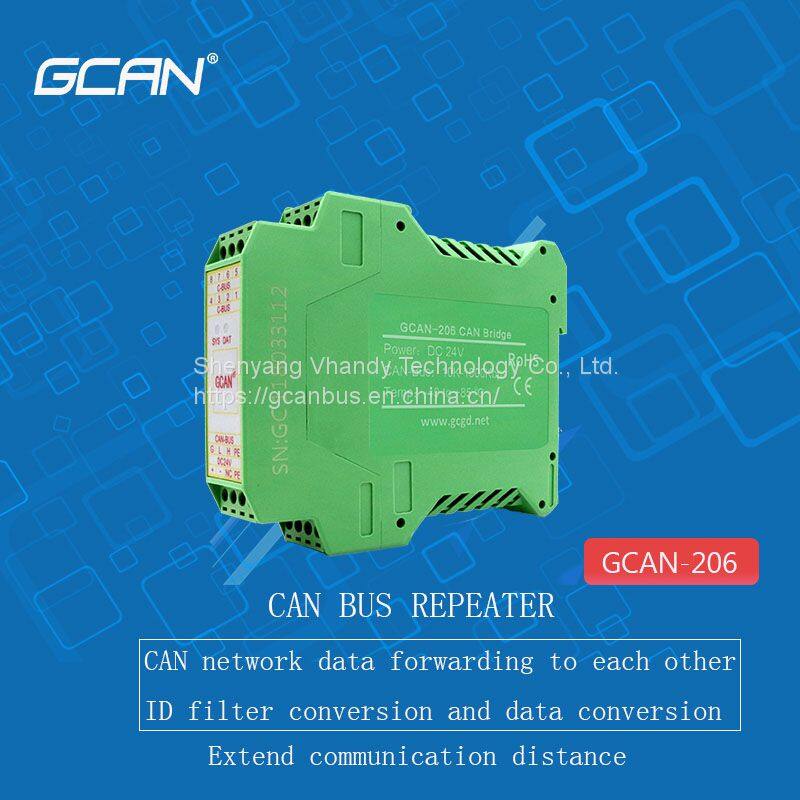

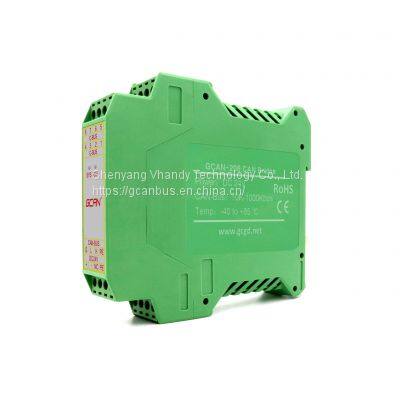

GCAN 206 for CAN-Bus and Serial Bus Gateway Supports Independent CAN Baud Rate, Electrical Isolation 1500V

Quick Details

• Place of Origin:Liaoning, China

• Brand Name:GCAN

• Model Number:GCAN-206

• Electric isolation:DC1500V

• Voltage:DC 5V

• Communication:CAN-Bus

• Size:95 * 65 * 26mm

• Current:20mA

• weight:120g

• Working temperature:-40~ 85℃

• Color:green

•

  Packaging & Delivery

• Selling Units:Single item

• Single package size: 21X16X6 cm

• Single gross weight:0.500 kg

• Package Type:Export carton

• Lead Time:

• Quantity(sets)	1 - 500	>500
  Est. Time(days)	7	To be negotiated

•

•

• GCAN-206 is a CAN-Bus adapter, used for data collection and data processing of CAN-Bus network. It is a high-performance adapter,
  whose function is to realize CAN-Bus message receiving/transmitting and monitoring.

•

•

• Features

  Computer interface:USB1.0,USB2.0,USB3.0

  Support CAN2.0A and CAN2.0B,conform to ISO/DIS11898

  Support Windows operating system:Windows XP,7,8,10,etc

  Support secondary development,we can provide routine such as VC,VB,Net,Delphi,Labview,C + + builder and others

  Support ECANTools testing software

  Support customization

•

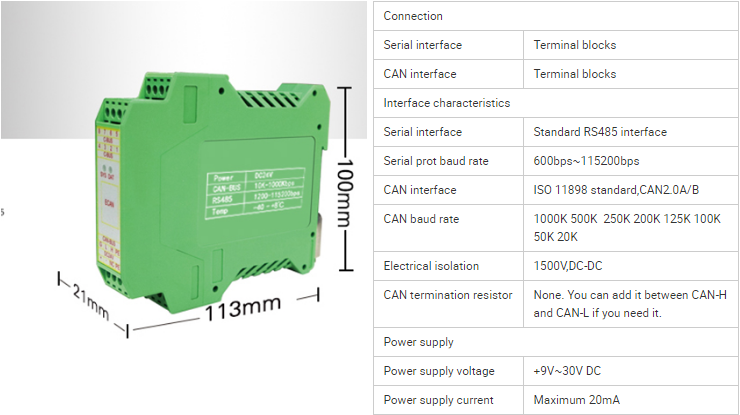

• Parameter

  Interfaces:two CAN-Bus channels with terminal

  Integrate with electrical isolation protection module

  Set parameters through webpage

  Support communication baud rate:5Kbps~1Mbps

  Electric isolation,insulation level:DC 1500V

  Receive maximum data flow:1400FPS

  Use external power(DC+24V)

  Voltage:DC 5V

  Current:20mA

  Working temperature:-40~85℃

  Size:95*65*26mm

•
