Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > GCAN PLC With CAN Bus, Digital and Analog Inputs and Outputs
GCAN PLC With CAN Bus, Digital and Analog Inputs and Outputs
US$ 251 - 266
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GCAN
Place of Origin:
China
Model Number:
PLC-511
Payment & Shipping
Payment Methods:
Port of Shipment:
DaLian
Delivery Detail:
7 days
Related Products
-
GCAN-PLC Controller Adopts High-speed CPU to Realize Remote Control and Real-time Data Monitoring PLC ControllerUS$ 172 - 187MOQ: 1 Set -
GCAN-PLC Programmable Logic Controller Made in China Low Cost High Quality PLC Controller With CAN InterfaceUS$ 233 - 248MOQ: 1 Set
-
PLC Programmable Logic Controller Mini Modular Scalable PLC Programmable Logic ControllerUS$ 251 - 266MOQ: 1 Set
-
GCAN-IO-8000 CANopen Adapter Uses High-speedUS$ 124 - 139MOQ: 1 Set
-
24V DC (18~36V) Standard Modbus Slave Station Baud Rate 600bps~115200bps Support CRC CheckUS$ 124 - 139MOQ: 1 Set
Brand Name
GCAN
Place of Origin
China
Model Number
PLC-511
Product introduction

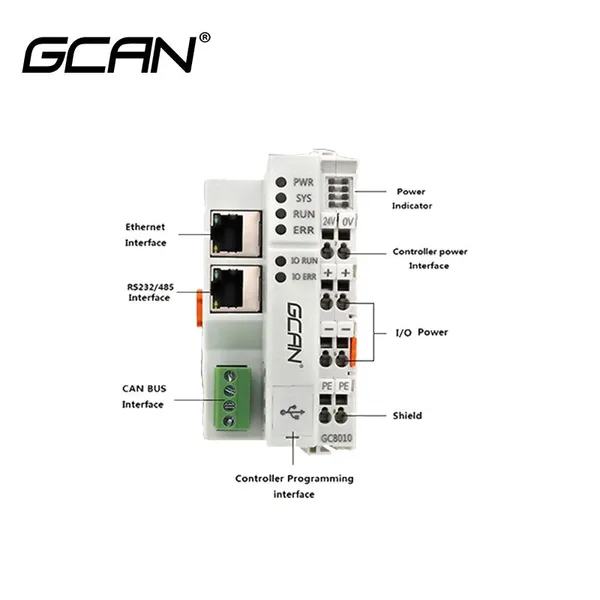

GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
Total 3 control modules
Model |
Characteristic |
Communication bus |
GCAN-PLC-400
|
CPU frenquency 168M |
1*CAN+1*Ethernet+
1*RS232(or RS485)
|
Program storage:16M byte | ||
Data storage:512K byte | ||
GCAN-PLC-510
|
CPU frenquency 400M |
1*CAN+1*Ethernet+
1*RS232(or RS485)
|
Program storage:32M byte | ||
Data storage:16M byte | ||
GCNA-PLC-511
|
CPU frenquency 400M |
1*CAN+1*Ethernet+
1*RS232+1*RS485
|
Program storage:32M byte | ||
Data storage:16M byte |
Total 2 communication module| Performance | CANopen adapter (GCAN-IO-8000) | Modbus adapter (GCAN-IO-8100) |
| Node number | 1~127 | 1~247 |
| Baud rate | 10Kbps~1000Kbps | 600bps~115200bps |
| Power input | 24V DC (18~36V) | |
| Insert I/O module number | 32 pieces (at most 32*8 IO point) | |
| Dimension | 100mm*69mm*48mm | |
| Working temperature, humdidness | -40℃~+85℃, 0~90%RH, without condensation | |
| IP grade | IP20 | |

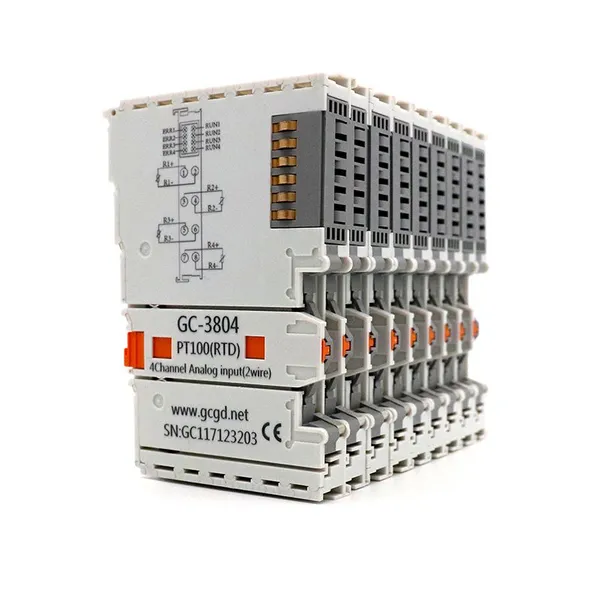

Input and output modules
packaging
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
