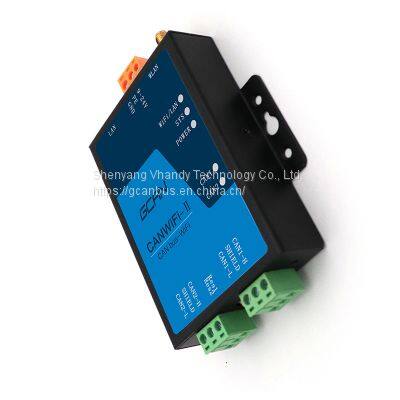

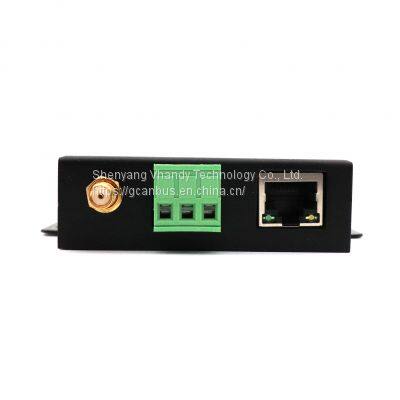

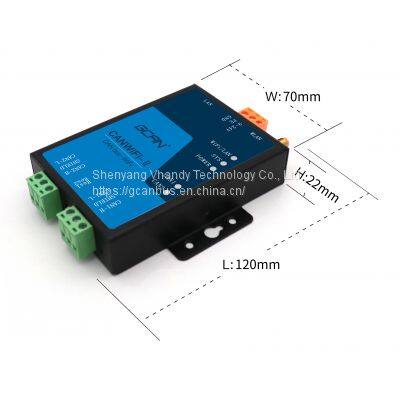

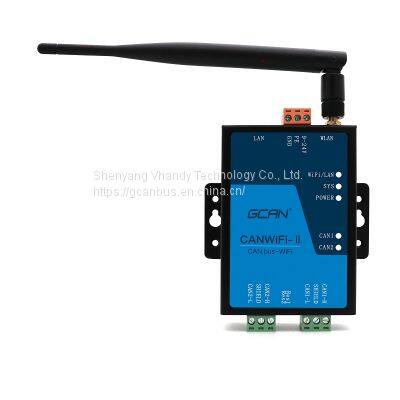

GCAN CAN to Wireless Router Repeater/Wifi CANBus Gateway the Converter With Wifi to Can Wifi Bridge Transmission Module
US$ 120 - 135
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GCAN
Place of Origin:
China
Model Number:
GCAN-211
Payment & Shipping
Payment Methods:
Port of Shipment:
DaLian
Delivery Detail:
7 days
Related Products
-
GCAN-212 Ethernet To Can Converter 2 Can Interface 1 Ethernet Interface Form Canbus Network Control NodeUS$ 136 - 151MOQ: 1 Set -
GCAN 206 for CAN-Bus and Serial Bus Gateway Supports Independent CAN Baud Rate, Electrical Isolation 1500VUS$ 175 - 190MOQ: 1 Set
-
GCAN-203 Bluetooth To CAN Converter for Real-time Data Mobile APP Monitoring In CarUS$ 115 - 130MOQ: 1 Set
-
GCAN-204 Converter Communication Device Connected To Canbus Plc With An Existing Can Network For Control SystemUS$ 175 - 190MOQ: 1 Set
-
GCAN-205 Modbus TCP to CAN Converter for Beginners to Learn CANUS$ 175 - 190MOQ: 1 Set
Brand Name
GCAN
Place of Origin
China
Model Number
GCAN-211
Place of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-211
PC interface:Ethernet interface, RJ45
CANbus interface:Terminal blocks
Ethernet interface:10 / 100M adaptive
CAN interface:ISO 11898 standard, CAN2.0A/B
CAN baud rate:5Kbit/s~1Mbit/s
Electrical isolation:1500V DC-DC
Power supply voltage:9-30V DC
Power supply curren:50mA 24V DC
- Packaging & Delivery
Selling Units:Single item
Single package size: 26X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
Quantity(sets) 1 - 500 >500 Est. Time(days) 7 To be negotiated -
Product Feature■ Power supply: 9~30V(50mA,24V DC)
■ Working temperature range from -40 to 85 °C
■ CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS 11898 standards
■ CAN baud rates range from 5Kbps to 1Mbps
■ CAN-Bus interface with electrical isolation
■ CAN-Bus insulation voltage: DC 1500V
■ Standard Ethernet interface: RJ45
■ Supports 10 / 100M adaptive
■ The working port, the target IP and the target port can be modified
■ Support agreement: ETHERNET, ARP, IP, ICMP, UDP, DHCP, DNS, TCP
■ Compatible with SOCKET work (TCP Server, TCP Client, UDP)
■ 2.4G WLAN interface, in line with IEEE802.11a / b / g standard
■ AP mode and station modeTypical application
■ CAN bus data remote transmission.
■ Underground data acquisition aystem of coal time.
■ Intelligent remote monitoring system for parking lot.
■ Power industry CAN bus interface equipment wireless remote distance monitoring
