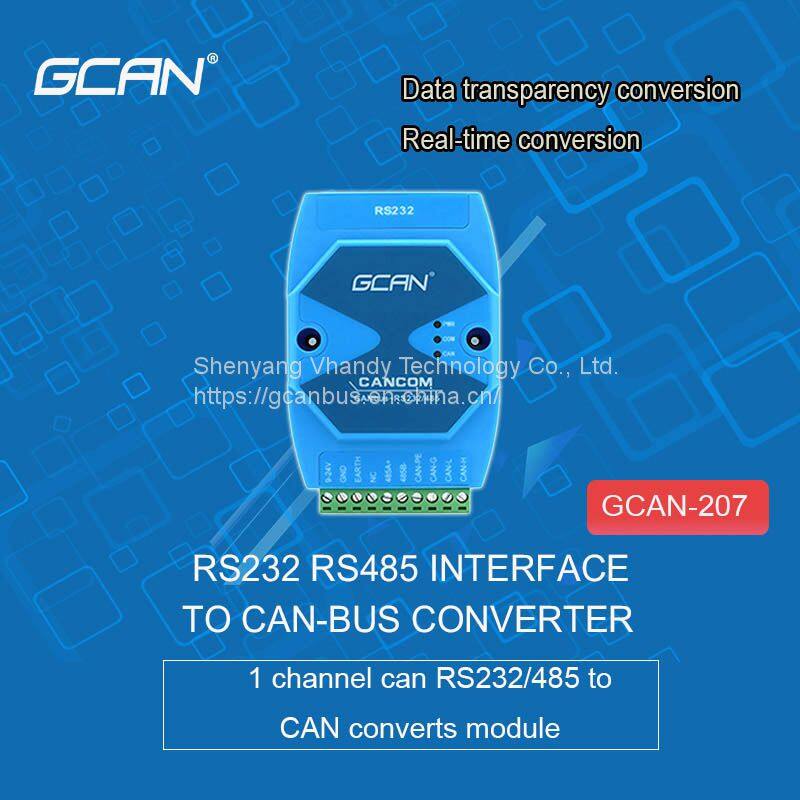

Gcan-207 Rs232/485 To Can Converter for Bidirectional Communication

OverviewQuick Details

Place of Origin:Liaoning, China

Brand Name:GCAN

Model Number:GCAN-207

Communication:RS232/485 to CAN

Voltage:+9 ~ 30V DC

Current:20mA (Max), 24V DC

Working temperature:-40℃~ +85℃

Dimension:112*70*25mm

color:blue

Weight:100g

IP grade:IP 20

Packaging & DeliverySelling Units:Single itemSingle package size: 26X16X6 cmSingle gross weight:0.500 kgPackage Type:Export cartonLead Time:

• Quantity(sets)	1 - 500	>500
  Est. Time(days)	7	To be negotiated

•

• The GCAN-207 converter has integrated one standard CAN-Bus interface, one serial-Bus interface (RS232 or RS485). GCAN-207
  converter can build a connection between Serial-Bus and CAN-Bus. With this converter,equipment that used Serial-Bus can connect to
  CAN-Bus without changing the hardware structure, this makes multi-Bus interconnection very flexible, and extends the application
  scope of CAN-Bus.

•

• Parameters
  Interface	RS485,CAN use terminal inerface,RS232 use DB9 interface
  Connection method	RS232 interface adapts three-lines connection,RS485 interface adapters two-lines connection
  Protection module	Integrate with electrical isolation protection module
  Support CAN-Bus communication baud rate	5Kbps~1Mbps
  Support serial interface baud rate	600bps~115200bps
  Electric isolation,insulation level	DC1500V
  Receive maximum data flow	14000FPS
  Voltage	9~30V DC power supply(DC24V)
  Current	20mA
  Working temperature	-40℃~85℃
  Size	112*70*25mm

•

•

• Features
  Protocol	Support CAN2.0A and CAN2.0B,conform to ISO/DIS11898
  Supply two kinds of conversion modes	transparent conversion,transparent conversion with identity,format conversion
  Configure three kinds of conversion directions	bidirectional conversion.CAN→serial interface.serial interface→CAN
  Support Windows operating system	Windows XP,7,8,10,etc
  Whether it can be redeveloped	Support secondary development,we can provide routine such as VC,VB,Net,Delphi,Labview,C + +,builder and others
  Software	Support Access Port assistant sotfware
  Custom made	Support customization

•

• Typical application
  ■ Pile public bicycle system communication bus transformation.
  ■ No CAN interface PLC to collect CAN bus data.
  ■ RS485 interface sensor CAN communication transformation.
  ■ Transformation of long-distance communication of fire-fighting equipment.

•
