GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine

Shenyang Vhandy Technology Co., Ltd.
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine thumbnail-1
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine thumbnail-2
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine thumbnail-3
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine thumbnail-4
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine thumbnail-5
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine photo-1
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine photo-2
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine photo-3
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine photo-4
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine photo-5
US$ 233 - 248 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GCAN
Place of Origin:
China
Model Number:
GCAN-412
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
DaLian
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GCAN
Place of Origin China
Model Number GCAN-412

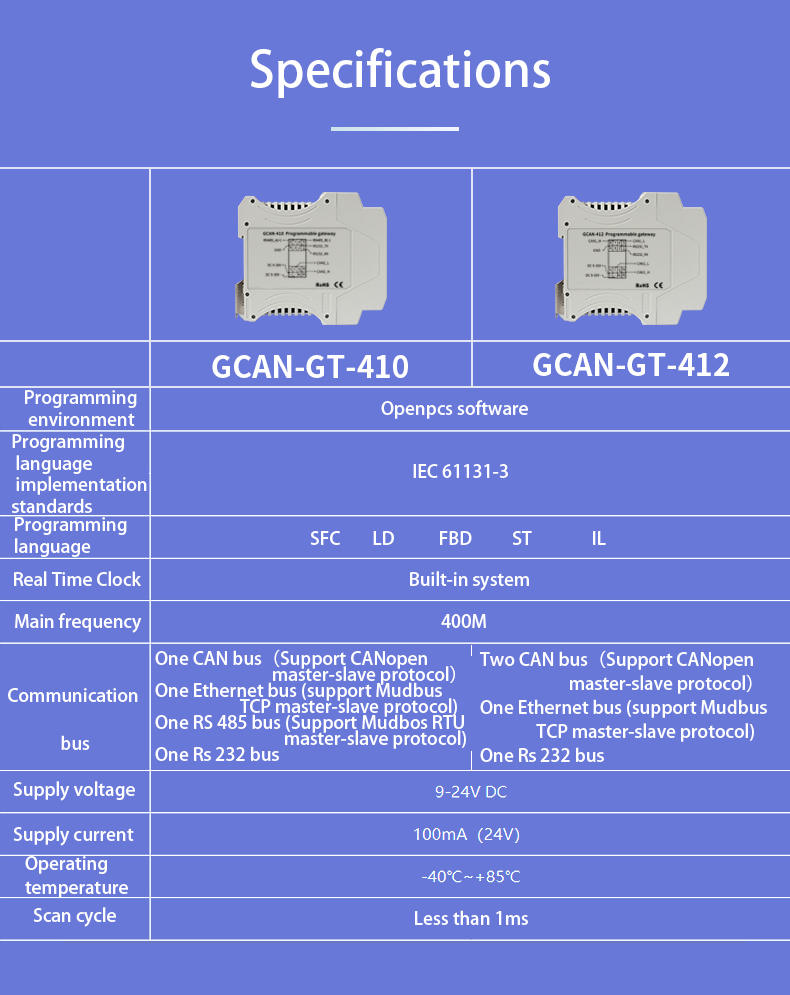

    Overview         Quick Details

  • Overview

    Essential details

    Place of Origin:Liaoning, China

  • Brand Name:GCAN

  • Model Number:GCAN-GT-412

  • Type::Gateway

  • Programming languages::SFC LD FBD ST IL

  • Programming environment::OpenPCS software

  • Flash (program memory)::32M bytes

  • SRAM (data memory)::16M bytes

  • User data storage area::2K bytes

  • Run-Time system:1 PLC task

  • PLC cycle time::1000 instructions take about 3ms

  • Power shock::24V DC max / 10A max

  • package-img

  • Lead Time:

  • Quantity(sets)1 - 500>500
    Est. Time(days)7To be negotiated

  •

  •
    Description

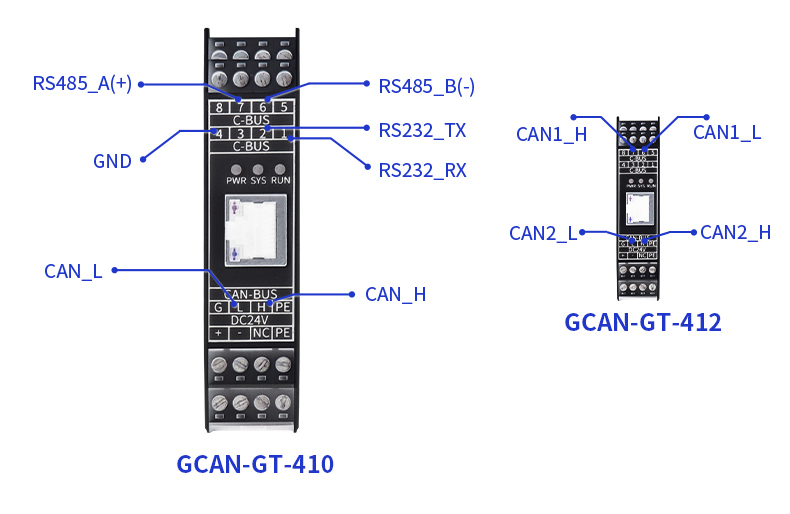

    GCAN-GT-412 is a programmable bus gateway/converter. The device integrates 2 CAN bus interfaces, 1 Ethernet bus interface, and 1 RS232 bus interface. Before actual use, users need to write application programs for the device through openPCS software to achieve data between different bus interfaces Of each other.

    The GCAN-GT-412 module supports multiple standard communication protocols, such as CANopen, SAE J1939, Modbus TCP, Modbus RTU,etc.
    In actual use, the user can directly select the function block of the corresponding protocol to load it. The addition of the function block makes the user Programming work becomes simple, users only need to understand the basic PLC programming
    instructions and the characteristics and parameters of the corresponding bus corresponding protocol to complete the programming work.

    GCAN-GT-412 can be programmed using OpenPCS software, which supports five standard PLC programming languages that comply with the IEC-61131-3 standard, such as: SFC (sequential function diagram), LD (ladder diagram), FBD ( Function block), ST (structured text), IL (instruction list), which makes the program very portable and reusable, and the software also has a variety of debugging
    functions (such as power off, single step, monitoring, etc.) ) To make the debugging process more convenient.

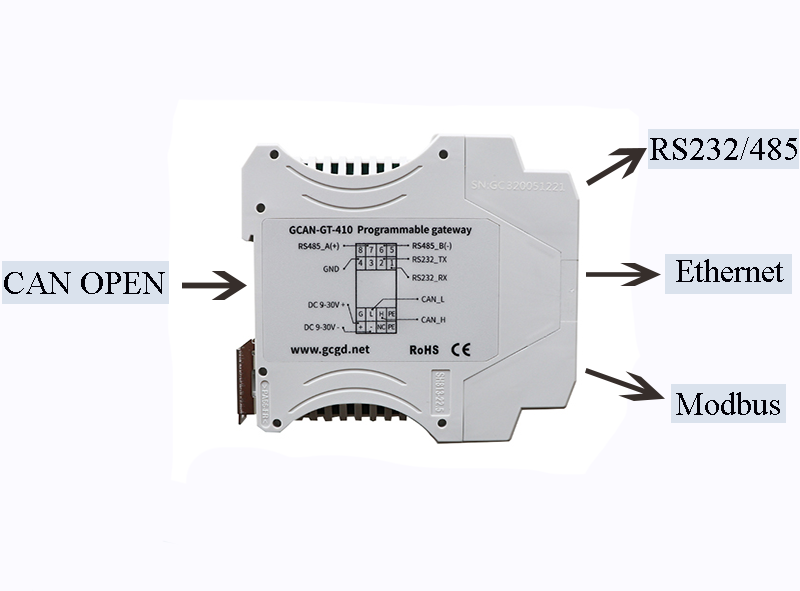

    Support CAN,Ethernet,RS232/485 three buses are used simultaneously
    GCAN-GT series programmable gateway modules come with three different types of bus interface.these three bus interface can be used at the same time,so users can flexibly convert the data on each bus to other buses in combination with the actual needs of the field.
    Support standard communication protocols
    The CAN bus,Ethernet bus and RS232/485 bus of GCAN-GT series programmable gateway modules support commonly used communication protocols.Users can develop programs based on actual needs similar to :Modbus TCP slave to CANopen master,RS485 to CANopen master/slave and other equipment.

    Programming software based on IEC 61131-3
    The GCAN-GT series of programmable gateway modules support users to use the 5 programming languages stipulated in the IEC 61131-3 standard to program them.This is very easy for users who have done PLC programming before,and we also provide users with various the function blocks of various bus and various protocols,users can directly use the function blocks to quickly make application programs.

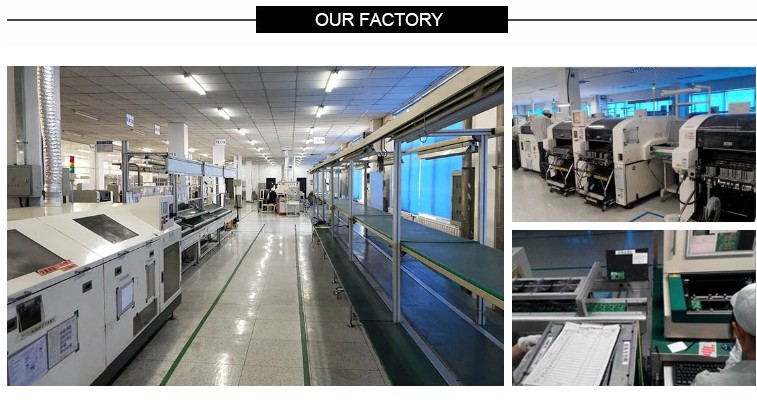

    Factory
    Centifications
