GCAN-204 Converter Communication Device Connected To Canbus Plc With An Existing Can Network For Control System
US$ 175 - 190
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GCAN
Place of Origin:
China
Model Number:
GCAN-204
Payment & Shipping
Payment Methods:
Port of Shipment:
DaLian
Delivery Detail:
7 days
Related Products
-
GCAN-205 Modbus TCP to CAN Converter for Beginners to Learn CANUS$ 175 - 190MOQ: 1 Set -
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle EngineUS$ 233 - 248MOQ: 1 Set
-
GCAN 206 Supports Independent CAN Baud Rate, Galvanically Isolated 1500VUS$ 175 - 190MOQ: 1 Set
-
Gcan-207 Rs232/485 To Can Converter for Bidirectional CommunicationUS$ 112 - 127MOQ: 1 Set
-
GCAN CAN to Wireless Router Repeater/Wifi CANBus Gateway the Converter With Wifi to Can Wifi Bridge Transmission ModuleUS$ 120 - 135MOQ: 1 Set
Brand Name
GCAN
Place of Origin
China
Model Number
GCAN-204
Place of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-204
Working temperature:-40℃~ +85℃
Support serial interface baud rate:600bps~115200bps
Current:20mA
Receive maximum data flow:400 FPS
insulation level:DC1500V
Size:114.5mm * 99mm * 22.6mm
Voltage:9~30V DC power supply( DC24V)
baud rate:5Kbps~1Mbps
- Packaging & Delivery
Selling Units:Single item
Single package size: 21X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
Quantity(sets) 1 - 500 >500 Est. Time(days) 7 To be negotiated

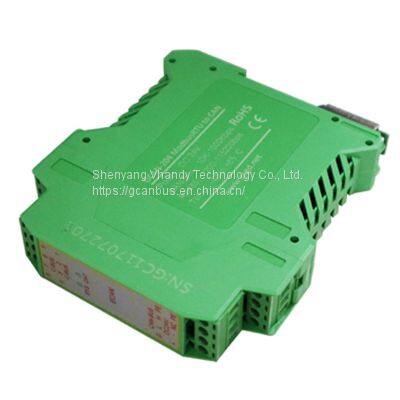

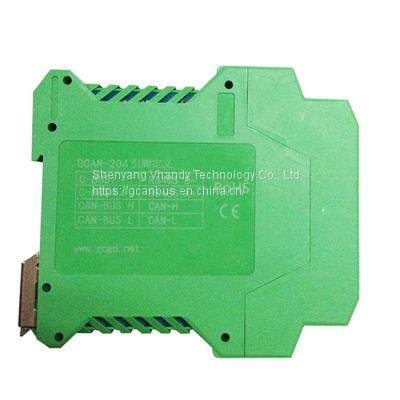

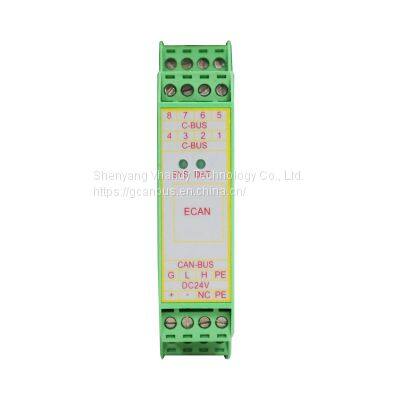

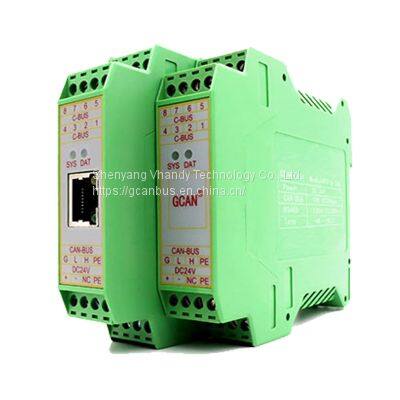

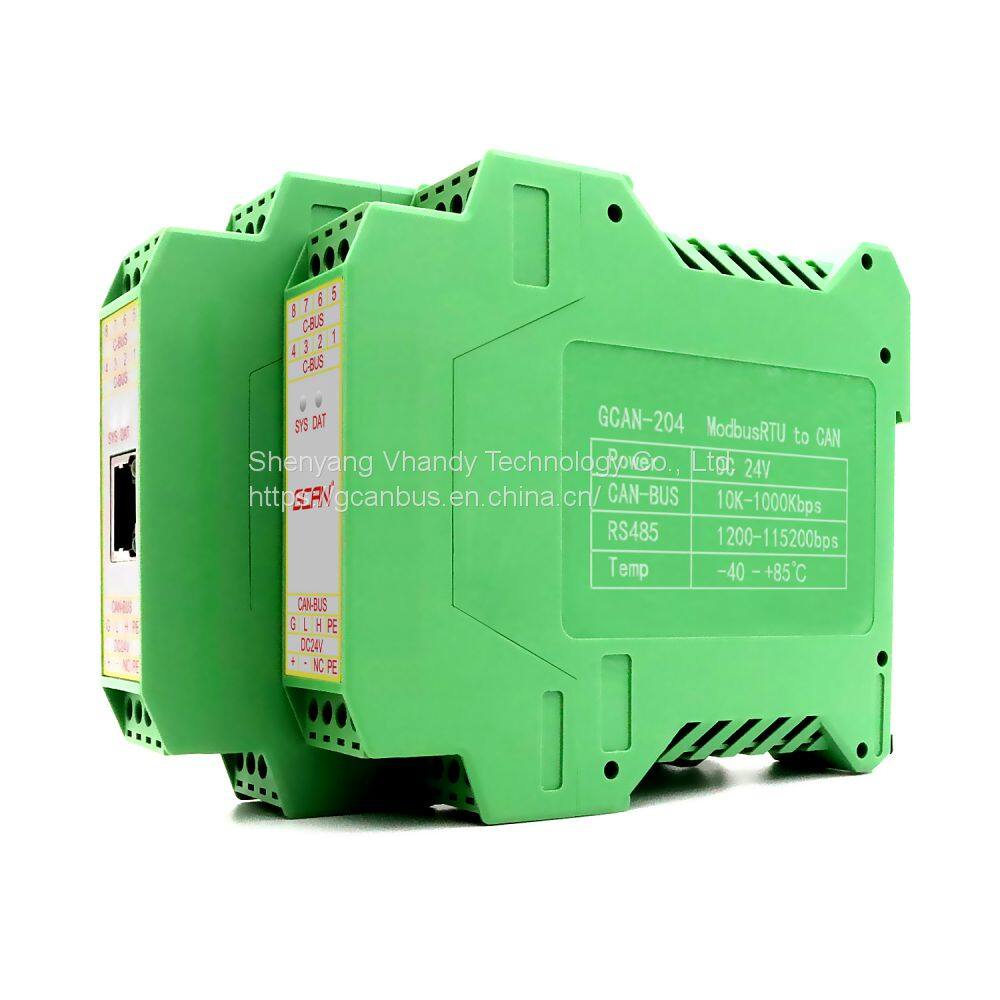

GCAN-204 converter has one CAN-Bus interface, one serial interface. The GCAN-204 integrates the Modbus RTU protocol. With the GCAN-204 , user can use the serial bus connect to other equipment (with Modbus RTU protocol) access the CAN-Bus communication interface. GCAN-204 has integrated isolation protection module. Using DIN railway fixed, it can be easier to integrate into the control cabinet.
The GCAN-205 is a CAN-Bus and ethernet converter. GCAN-205 converter ethernet-side integrated Modbus TCP protocol. GCAN-205 can convert the data between CAN-Bus and Modbus TCP. With this converter, equipment that used Modbus TCP protocol can connect to CAN-Bus without changing the hardware structure, this makes multi-Bus interconnection very flexible, and extends the application scope of CAN-Bus.
Hardware feature
■ High-speed 32-bit processor ■ Embedded hardware watchdog timer ■ Power supply voltage: DC 24V ■ Maximum current: 40mA ■ Electrostatic discharge immunity level: contact discharge ± 2KV, air discharge ±15KV ■ Surge immunity level: ± 1KV ■ Operating temperature range: -40 ℃ ~ +85 ℃ ■ Operating humidity range: 5% to 95% RH ■ Electrical fast transient burst immunity level: ± 1KV
CAN feature
■ Integrated 1 CAN-Bus interface with terminal ■ CAN-Bus signals : CAN_H, CAN_L, CAN_GND ■ CAN-Bus supports CAN2.0A and CAN2.0B frame format, conform to ISO/DIS11898 standards ■ CAN-Bus baud rates range from 5Kbps to 1Mbps ■ CAN-Bus isolation converter insulation voltage: DC 1500V
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
