Home > Products > CAN Bus Gateway Series > GCAN-203 Bluetooth To CAN Converter for Real-time Data Mobile APP Monitoring In Car

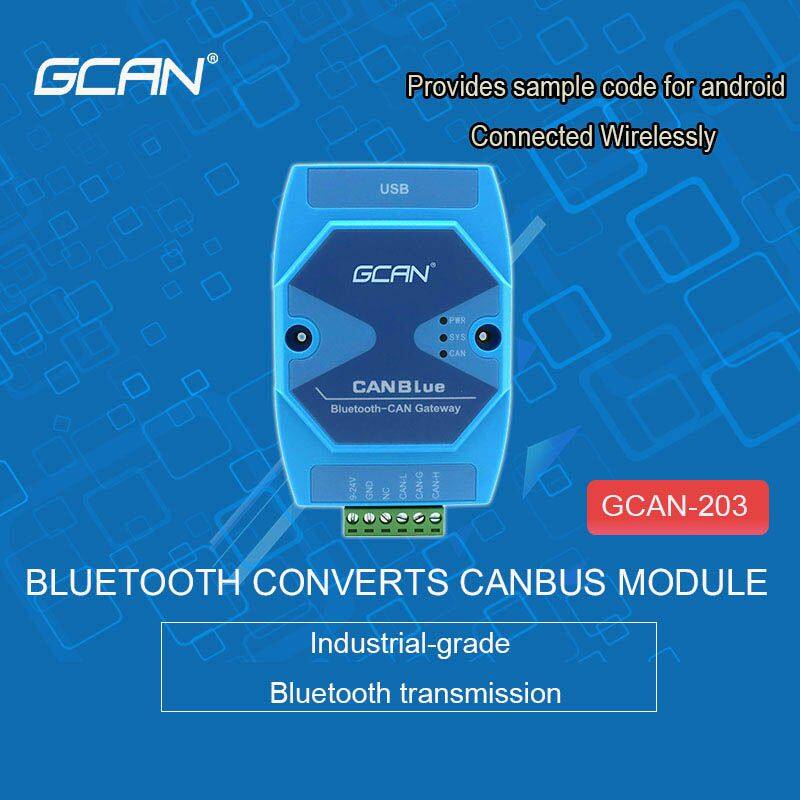

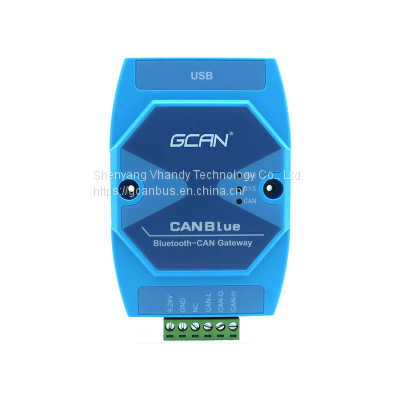

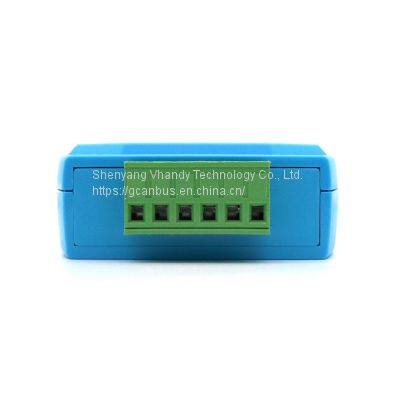

GCAN-203 Bluetooth To CAN Converter for Real-time Data Mobile APP Monitoring In Car
US$ 115 - 130
/ Set
1 Set(Min. Order)
- DaLian
- T/T L/C D/P D/A Money Gram Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
GCAN-204 Converter Communication Device Connected To Canbus Plc With An Existing Can Network For Control System
-
GCAN-205 Modbus TCP to CAN Converter for Beginners to Learn CAN
-
GCAN Bus Gateway Module Converter GCAN-GT-412 For Communication Between Gasoline Vehicle Ecu And Diesel Vehicle Engine
-
GCAN 206 Supports Independent CAN Baud Rate, Galvanically Isolated 1500V
-
Gcan-207 Rs232/485 To Can Converter for Bidirectional Communication
-
GCAN CAN to Wireless Router Repeater/Wifi CANBus Gateway the Converter With Wifi to Can Wifi Bridge Transmission Module
Product Details
| Brand Name | GCAN | Place of Origin | China | |
| Model Number | GCAN-203 |
Product Description
Place of Origin:Liaoning, China
Brand Name:GCAN
Model Number:GCAN-203
Certificate:CE
Power flow:30mA 24V DC
Max data traffic:300 frames/s
Function:data transmission

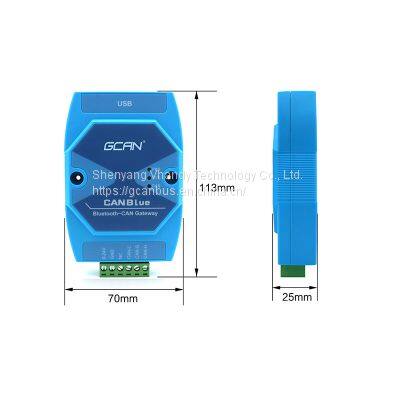

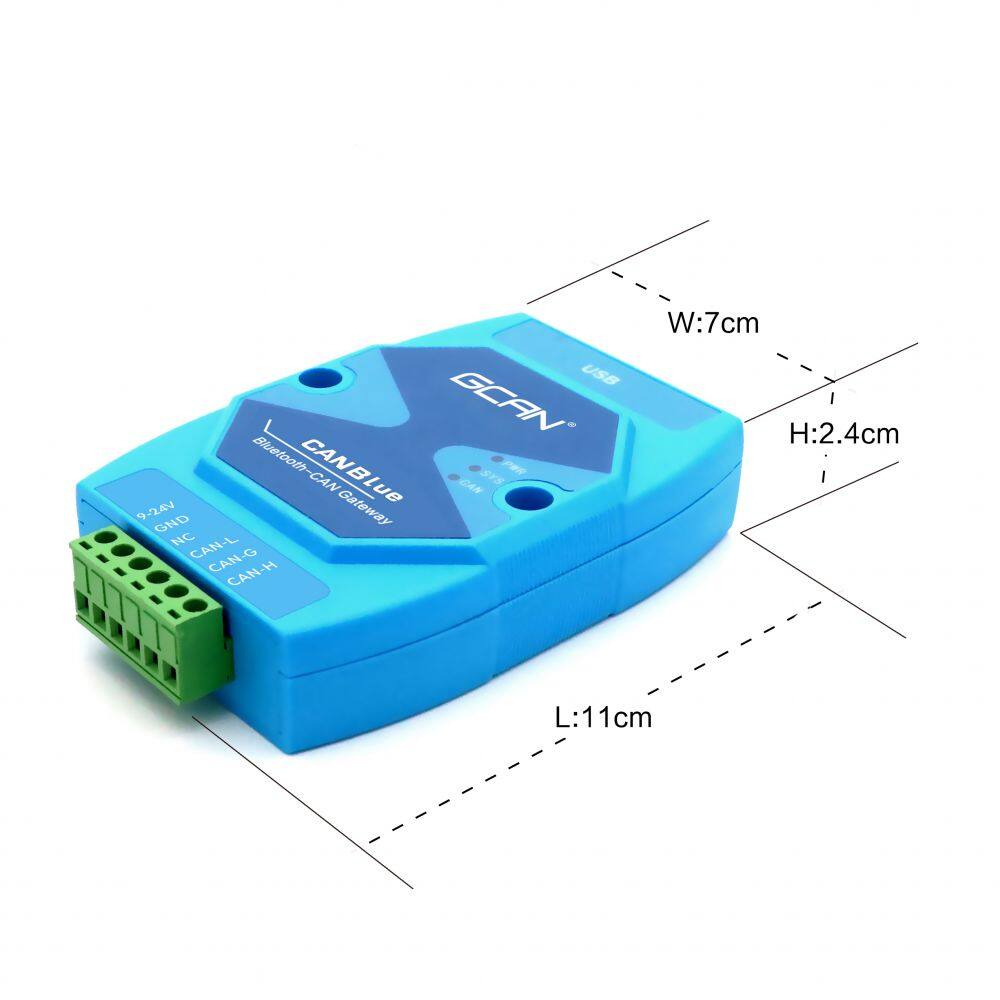

Size:112*70*24mm
Power Supply:+9~30V DC
Working temperature:-40℃~+85℃
Baud rate:5Kbps~1Mbps
maximum flow:300 FPS
Current:30mA, 24V DC
- Packaging & Delivery
Selling Units:Single item
Single package size: 26X16X6 cm
Single gross weight:0.500 kg
Package Type:Export carton
Lead Time:
Quantity(sets) 1 - 500 >500 Est. Time(days) 7 To be negotiated
Product description
- The GCAN-203 is a CAN-Bus converter, used for connecting the upper computer by Bluetooth in wireless. It is a high-performa nce CAN-Bus converter, whose function is to realize CAN system access in the case that it's hard to connect physically.Product parameter
CAN-Bus baud rates range 10K~1Mbps
Maximum data traffic: 300 frames per second
Bluetooth using 2.0 or 5.0
Power supply: 9~30V (20mA,24V DC)
Installation method: DIN rail
Working temperature range: -40 ~ +85 ℃;
CAN-Bus isolation module insulation voltage: DC 1500V
CAN Blue ConfigCustomize the passwordCAN-Bus test function
After-sale servicesTypical applications
■ CAN system access without connection;
■ Industrial network data monitoring;
■ CAN teaching application;
■ CAN industrial automation control system;
■ Data collection and analysis of low-speed CAN network;
■ CAN-Bus application system of intelligent building broadcast
