GCAN PLC Complies With ISO 11898 32 I/O Modules Support OpenPCS Programming Environment

Name: GCAN PLC Complies With ISO 11898 32 I/O Modules Support OpenPCS Programming Environment
Brand: GCAN
Availability: InStock

FOB Price

US$ 233 - 251 / Set

1 Set(Min. Order)

Port LIAONING
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GCAN		Place of Origin	China
Model Number	PLC-510

Product Description

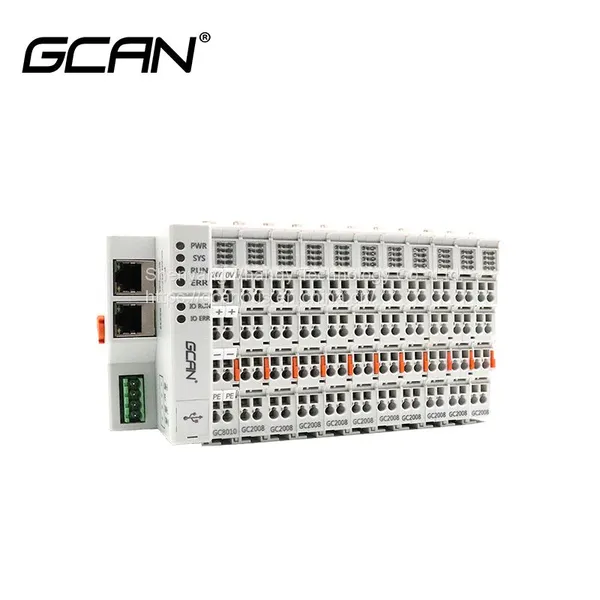

GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/…). The control module has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.

Total 3 control modules

Model	Characteristic			Communication bus
Model	CPU frequency	Program storage	Data storage	Communication bus
GCAN-PLC-400	168M	16M	512K	1CAN+1Ethernet+1*RS232(or RS485)
GCAN-PLC-510	400M	32M	16M	1CAN+1Ethernet+1*RS232(or RS485)
GCNA-PLC-511	400M	32M	16M	2CAN+1Ethernet+1RS232+1RS485

3 kinds if interface

CAN, Ethernet, RS232/485, Follow ISO 11898, support CANopen/ Modbus RTU/ Modsbus TCP, can be used as master or slave station

5 programming language

Support SFC (Sequential function chart), LD (Ladder diagram), FBD (Function block), ST(Strutured text), IL (Instruction list)

After-sales service

7 x24 hours every week after sales technical support with our professional engineers to solve problems

IO freely expand

Plenty of IO modules optional including digital&analog IO modules and some other special modules. One main control module with max 32 IO modules (32*8=256 channels)

Free progrm software

Support OpenPCS software, follow IEC 61131-3, the software is free with GCAN-PLC

Without specialized downloader

GCAN-PLC can use common micro usb to complete debugging and downloading

Total 2 communication modules

Performance	CANopen adapter (GCAN-IO-8000)	Modbus adapter (GCAN-IO-8100)
Node number	1~127	1~247
Baud rate	10Kbps~1000Kbps	600bps~115200bps
Power input	24V DC (18~36V)
Insert I/O module number	32 pieces (at most 32*8 IO point)
Dimension	100mm69mm48mm
Working temperature, humdidness	-40℃~+85℃, 0~90%RH, without condensation
IP grade	IP20

Input and output modules

IO Module Selection Table
I/O	Type	Characteristic	Signal	Channel
Digital input	GC-1008	Digital input (PNP)	24V DC	8-channel
	GC-1018	Digital input (NPN)	24V DC	8-channel
	GC-1502	Counter(200kHz max)	–	2-channel

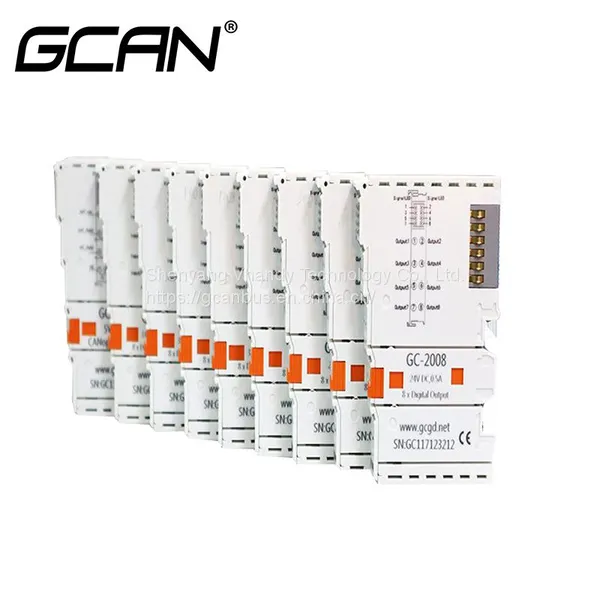

Digital output	GC-2008	Digital output (PNP)	24V DC	8-channel
	GC-2018	Digital output (NPN)	24V DC	8-channel
	GC-2204	Relay output	–	4-channel
	GC-2302	PWM (20Hz~200kHz)	–	2-channel
Analog input	GC-3604	Voltage input, 16 bits	-5~+5V	4-channel
	GC-3624	Voltage input, 16 bits	-10V~+10V	4-channel
	GC-3644	Current input, 16 bits	0-20mA	4-channel
	GC-3654	Current input, 16 bits	4-20mA	4-channel
	GC-3664	Voltage input, 16 bits	0~+5V	4-channel
	GC-3674	Voltage input, 16 bits	0~+10V	4-channel

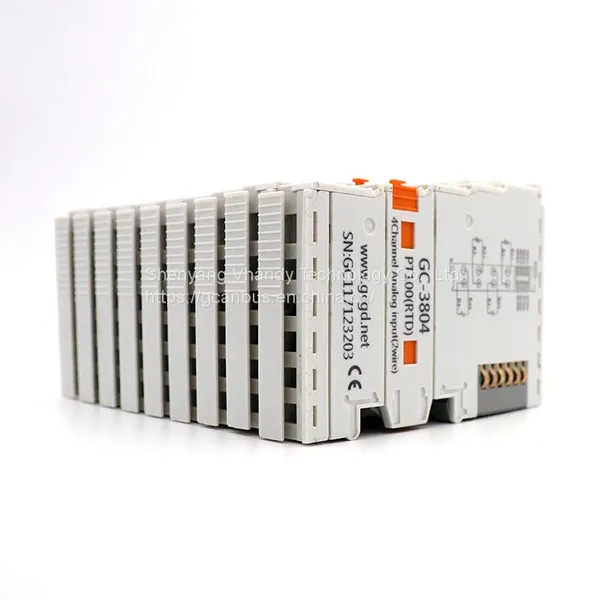

	GC-3804	2-wire PT100, 16 bits	Thermal resistance	4-channel
	GC-3814	2-wire PT1000, 16 bits	Thermal resistance	4-channel
	GC-3822	3-wire PT100, 16 bits	Thermal resistance	2-channel
	GC-3832	3-wire PT1000, 16 bits	Thermal resistance	2-channel
	GC-3844	K type thermocouple	Thermocouple	4-channel
	GC-3854	S type thermocouple	Thermocouple	4-channel
	GC-3864	T type thermocouple	Thermocouple	4-channel
	GC-3874	J type thermocouple	Thermocouple	4-channel
Analog output	GC-4602	Voltage output, 16 bits	-5V~+5V	2-channel
	GC-4622	Voltage output, 16 bits	-10V~+10V	2-channel
	GC-4642	Current output, 16 bits	0-20mA	2-channel
	GC-4652	Current output, 16 bits	4-20mA	2-channel
	GC-4662	Voltage output, 16 bits	0~5V	2-channel
	GC-4672	Voltage output, 16 bits	0~10V	2-channel
	GC-4674	Voltage output, 12 bits	0~10V	4-channel
Special module	GC-6101	RS232/RS485 extension	–	–
	GC-6201	GPRS extension	–	–
	GC-6501	WiFi extension	–	–
	GC-8012	Power extension	–	–

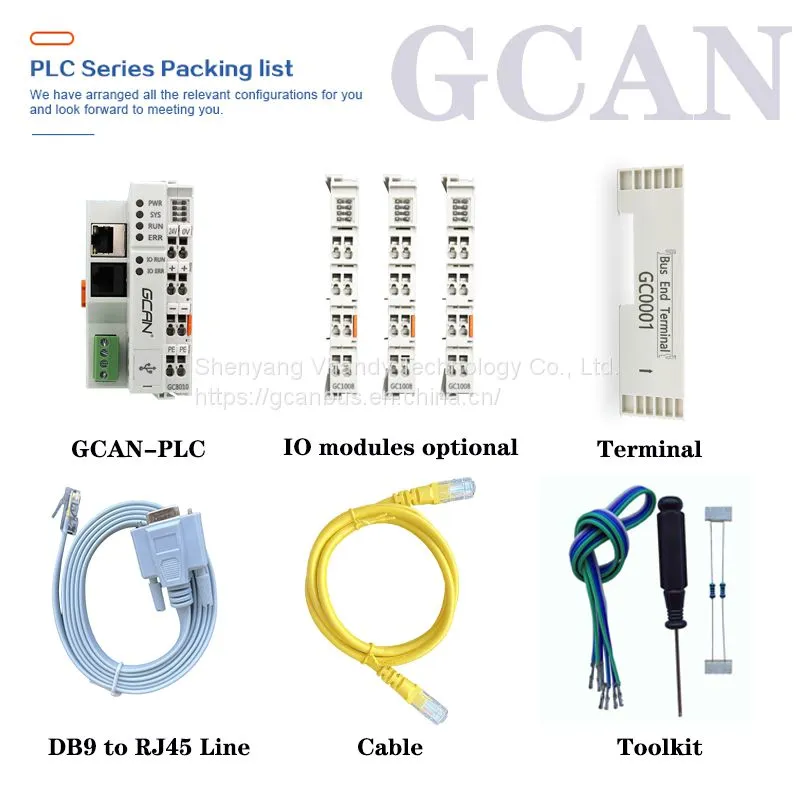

packaging

After-sale service

Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.
