GCAN USB CAN Bus Analyzer Data Debug Card Car Debugging Analysis J1939 Single Channel Debugging of Core Module

• Place of Origin:Liaoning, China

• Brand Name:GCAN

• Model Number:USBCAN-I Pro

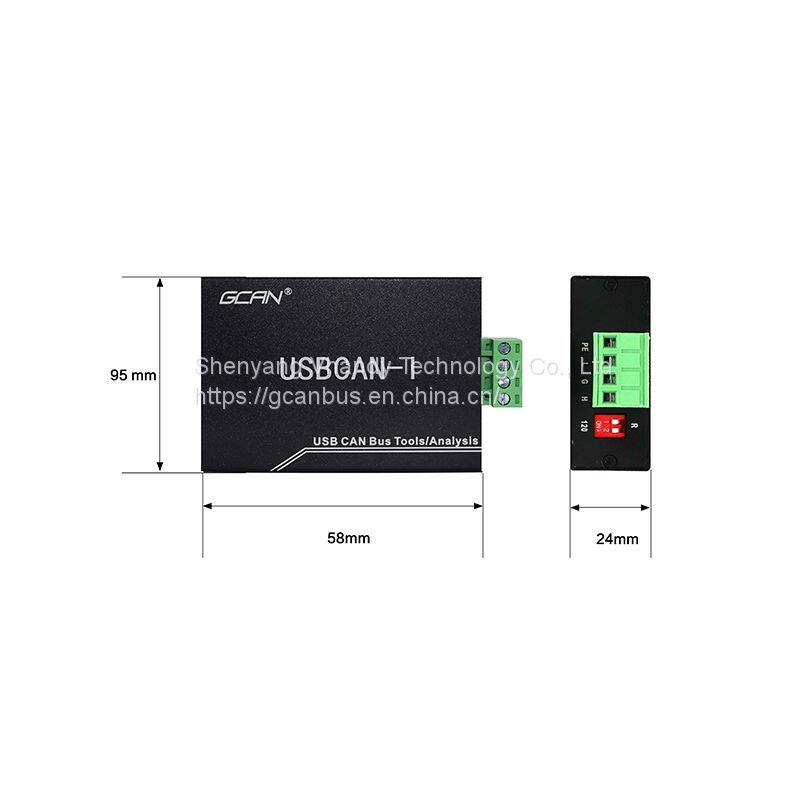

• Size (LxWxH):95 x 58 x 24 mm

• Weight:Approx.90g

• Working temperature:-40~ 85℃

• Humidity:15 to 95%non-condensing

• CAN channel:1

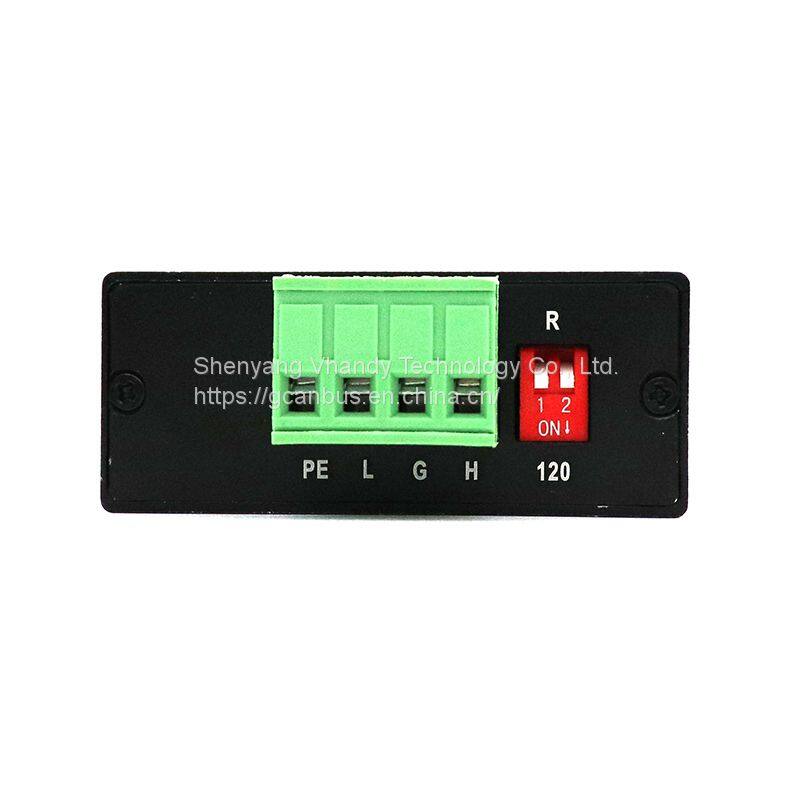

• CAN connector:Open 4-pin terminal block

• Computer interface:USB1.1, USB2.0, USB3.0

• Baud rate:5Kbps~1Mbps

• USB interface:USB 2.0, compatible with USB 1.1 and USB 3.0

• Electric isolation, insulation level:DC3000V

•


• Packaging & Delivery

• Selling Units:Single item

• Single package size: 25X15X5 cm

• Single gross weight:0.500 kg

• Package Type:Export carton

• Lead Time:

• Quantity(sets)	1 - 500	>500
  Est. Time(days)	7	To be negotiated

USBCAN-I pro adapter is a analysis tool for CAN bus which can build connection between PC and CAN network. It can make CAN data visibility with ECANtools software and realize CAN data transmit/receive and other functions. If user want to develop application program, GCAN provides the application demo code, including VC, VB,.net, Delphi, Labview and C++Builder and other development routine.

Typical applications✔Test CAN-Bus network or device;
✔Automotive electronics development;
✔Automotive data decoding tool;
✔Electrical system communication test;
✔Analysis of Vehicle Fault Diagnosis;
✔ECU data simulation;
✔Listen all CAN-Bus communication.

Packaging
