Brand Name ECHU
Place of Origin China
Model Number LiYCY, LiYY
Type Low Voltage
Application Industrial
Insulation Material Other, PVC
Jacket Other, PVC
Conductor Material Copper

PVC Sheath Electronic Signal Control Cable LiYCY

Shield Data Cable, LiYCY Cable

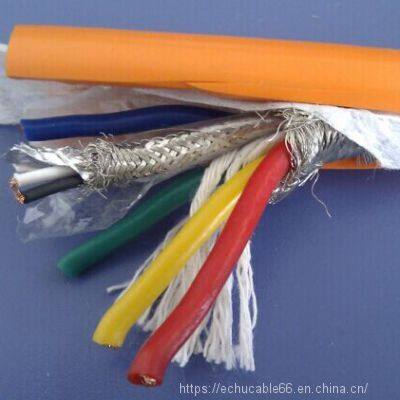

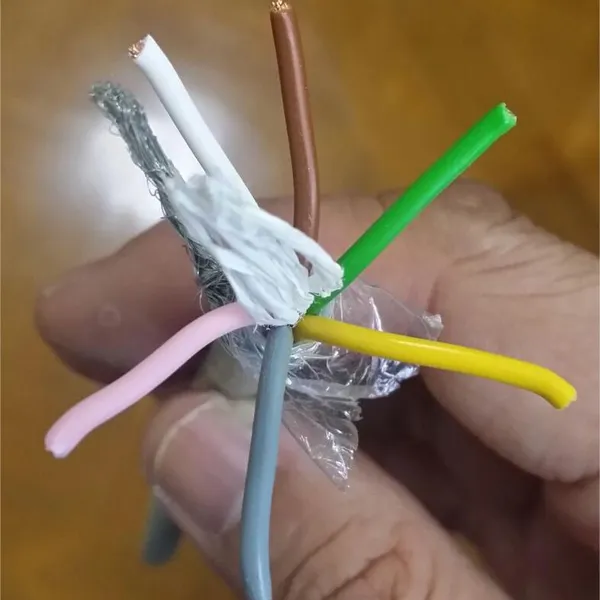

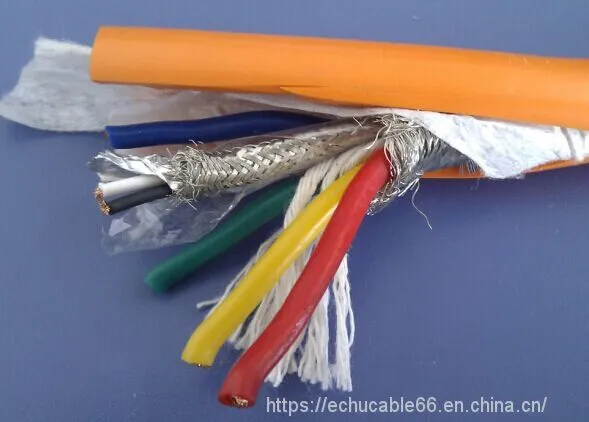

LiYCY is a VDE approved, flexible, overall shielded, PVC multi-conductor European data transmission cable.

For use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, damp or wet conditions.

Commonly used as control and signal cables in the electronics of computer systems, electronic control equipment, office machines and measuring devices in the tool making and machine industries. The tinned copper braid shield offers better protection against electrical interference for precise impulse transmissions.

LiYCY is recommended when a small outer diameter is required. Not permitted for outdoor use.

Conductor: Strands of oxygen-free copper wire acc. To DIN VDE0812
INSULATION: PVC I12 DIN VDE 0207 PART4
SHIELDING: TINNED COPPER BRAINED SHIELDED.
SHEATH: PVC YM1 DIN VDE0207 PART5
Property: Oil resistance
Standards: CE CERT. ROHS MATERIAL

Related Volatge: 350V/500V
Test Volatge: 800v/1200v
The minimum bending radius: Fixed: 5xd
When travel, the bending radius is 10xd
Anti-UV: 8X107CJ/KG

Type Size Conductor φ Weight KG/KM O.D.
LIYCY 0.14*2C 18 0.1 19 4.1
LIYCY 0.14*3C 18 0.1 22.6 4.3
LIYCY 0.14*4C 18 0.1 29 4.8
LIYCY 0.14*5C 18 0.1 33.4 5.1
LIYCY 0.14*6C 18 0.1 37.8 5.4
LIYCY 0.14*7C 18 0.1 40.8 5.4
LIYCY 0.14*8C 18 0.1 45.2 5.7
LIYCY 0.14*9C 18 0.1 53.1 6.4
LIYCY 0.14*10C 18 0.1 57.7 6.7
LIYCY 0.14*11C 18 0.1 61.5 6.9
LIYCY 0.14*12C 18 0.1 64.5 6.9
LIYCY 0.14*13C 18 0.1 68.9 7.2
LIYCY 0.14*14C 18 0.1 71.9 7.2
LIYCY 0.14*15C 18 0.1 80.1 7.7
LIYCY 0.14*16C 18 0.1 83.1 7.7
LIYCY 0.14*17C 18 0.1 87.8 8
LIYCY 0.14*18C 18 0.1 90.8 8
LIYCY 0.14*19C 18 0.1 93.9 8
LIYCY 0.14*20C 18 0.1 97.8 8.2
LIYCY 0.14*21C 18 0.1 101.6 8.3
LIYCY 0.14*22C 18 0.1 111.2 9
LIYCY 0.14*23C 18 0.1 116.1 9.3
LIYCY 0.14*24C 18 0.1 119.1 9.3
LIYCY 0.14*25C 18 0.1 123.1 9.5
LIYCY 0.14*26C 18 0.1 126.1 9.5
LIYCY 0.14*27C 18 0.1 129.1 9.5
LIYCY 0.14*28C 18 0.1 134.3 9.9
LIYCY 0.14*29C 18 0.1 137.3 9.9
LIYCY 0.14*30C 18 0.1 140.3 9.9
LIYCY 0.14*31C 18 0.1 150 10.4
LIYCY 0.14*32C 18 0.1 153.1 10.4
LIYCY 0.14*33C 18 0.1 156.1 10.4
LIYCY 0.14*34C 18 0.1 161.1 10.7
LIYCY 0.14*35C 18 0.1 164.1 10.7
LIYCY 0.14*36C 18 0.1 167.2 10.7
LIYCY 0.14*37C 18 0.1 170.2 10.7






LIYCY 0.25*2C 16 0.14 25.6 4.7
LIYCY 0.25*3C 16 0.14 30.9 4.9
LIYCY 0.25*4C 16 0.14 36.7 5.2
LIYCY 0.25*5C 16 0.14 42.7 5.6
LIYCY 0.25*6C 16 0.14 51.8 6.2
LIYCY 0.25*7C 16 0.14 56.2 6.2
LIYCY 0.25*8C 16 0.14 62.5 6.6
LIYCY 0.25*9C 16 0.14 69.4 7.1
LIYCY 0.25*10C 16 0.14 79.3 7.7
LIYCY 0.25*11C 16 0.14 84.8 7.9
LIYCY 0.25*12C 16 0.14 89.2 7.9
LIYCY 0.25*13C 16 0.14 95.4 8.2
LIYCY 0.25*14C 16 0.14 99.8 8.2
LIYCY 0.25*15C 16 0.14 106.2 8.6
LIYCY 0.25*16C 16 0.14 110.6 8.6
LIYCY 0.25*17C 16 0.14 121.5 9.2
LIYCY 0.25*18C 16 0.14 125.9 9.2
LIYCY 0.25*19C 16 0.14 130.4 9.2
LIYCY 0.25*20C 16 0.14 135.9 9.4
LIYCY 0.25*21C 16 0.14 141.4 9.6
LIYCY 0.25*22C 16 0.14 148.8 10.1
LIYCY 0.25*23C 16 0.14 161.1 10.8
LIYCY 0.25*24C 16 0.14 165.6 10.8
LIYCY 0.25*25C 16 0.14 171.2 11
LIYCY 0.25*26C 16 0.14 175.7 11
LIYCY 0.25*27C 16 0.14 180.1 11
LIYCY 0.25*28C 16 0.14 186.6 11.3
LIYCY 0.25*29C 16 0.14 191 11.3
LIYCY 0.25*30C 16 0.14 195.5 11.3
LIYCY 0.25*31C 16 0.14 207.9 11.9
LIYCY 0.25*32C 16 0.14 212.3 11.9
LIYCY 0.25*33C 16 0.14 216.7 11.9
LIYCY 0.25*34C 16 0.14 223.7 12.3
LIYCY 0.25*35C 16 0.14 228.2 12.3
LIYCY 0.25*36C 16 0.14 232.6 12.3
LIYCY 0.25*37C 16 0.14 237.1 12.3






LIYCY 0.34*2C 7 0.25 27.9 4.8
LIYCY 0.34*3C 7 0.25 34.2 5
LIYCY 0.34*4C 7 0.25 41 5.4
LIYCY 0.34*5C 7 0.25 48.1 5.7
LIYCY 0.34*6C 7 0.25 58.2 6.4
LIYCY 0.34*7C 7 0.25 63.6 6.4
LIYCY 0.34*8C 7 0.25 70.9 6.8
LIYCY 0.34*9C 7 0.25 82.4 7.5
LIYCY 0.34*10C 7 0.25 89.9 7.9
LIYCY 0.34*11C 7 0.25 96.4 8.1
LIYCY 0.34*12C 7 0.25 101.8 8.1
LIYCY 0.34*13C 7 0.25 109 8.5
LIYCY 0.34*14C 7 0.25 114.3 8.5
LIYCY 0.34*15C 7 0.25 126.1 9
LIYCY 0.34*16C 7 0.25 131.5 9
LIYCY 0.34*17C 7 0.25 139.1 9.5
LIYCY 0.34*18C 7 0.25 144.5 9.5
LIYCY 0.34*19C 7 0.25 149.9 9.5
LIYCY 0.34*20C 7 0.25 156.5 9.7
LIYCY 0.34*21C 7 0.25 163 9.9
LIYCY 0.34*22C 7 0.25 176.5 10.6
LIYCY 0.34*23C 7 0.25 184.3 11
LIYCY 0.34*24C 7 0.25 189.7 11
LIYCY 0.34*25C 7 0.25 196.4 11.2
LIYCY 0.34*26C 7 0.25 201.8 11.2
LIYCY 0.34*27C 7 0.25 207.2 11.2
LIYCY 0.34*28C 7 0.25 214.7 11.6
LIYCY 0.34*29C 7 0.25 220.1 11.6
LIYCY 0.34*30C 7 0.25 225.5 11.6
LIYCY 0.34*31C 7 0.25 239 12.1
LIYCY 0.34*32C 7 0.25 244.4 12.1
LIYCY 0.34*33C 7 0.25 249.8 12.1
LIYCY 0.34*34C 7 0.25 257.9 12.6
LIYCY 0.34*35C 7 0.25 263.3 12.6
LIYCY 0.34*36C 7 0.25 268.7 12.6
LIYCY 0.34*37C 7 0.25 274.1 12.6






LIYCY 0.5*2C 33 0.14 37.7 5.7
LIYCY 0.5*3C 33 0.14 50.2 6.2
LIYCY 0.5*4C 33 0.14 60.8 6.6
LIYCY 0.5*5C 33 0.14 71.6 7.2
LIYCY 0.5*6C 33 0.14 86.3 7.9
LIYCY 0.5*7C 33 0.14 94.7 7.9
LIYCY 0.5*8C 33 0.14 105.9 8.4
LIYCY 0.5*9C 33 0.14 122.5 9.4
LIYCY 0.5*10C 33 0.14 133.9 9.9
LIYCY 0.5*11C 33 0.14 148.8 10.4
LIYCY 0.5*12C 33 0.14 157.2 10.4
LIYCY 0.5*13C 33 0.14 168.5 10.8
LIYCY 0.5*14C 33 0.14 176.9 10.8
LIYCY 0.5*15C 33 0.14 188.4 11.4
LIYCY 0.5*16C 33 0.14 196.8 11.4
LIYCY 0.5*17C 33 0.14 214.3 12.1
LIYCY 0.5*18C 33 0.14 222.7 12.1
LIYCY 0.5*19C 33 0.14 231.1 12.1
LIYCY 0.5*20C 33 0.14 241.3 12.4
LIYCY 0.5*21C 33 0.14 251.4 12.6
LIYCY 0.5*22C 33 0.14 271 13.6
LIYCY 0.5*23C 33 0.14 283.9 14.2
LIYCY 0.5*24C 33 0.14 292.3 14.2
LIYCY 0.5*25C 33 0.14 309.6 14.7
LIYCY 0.5*26C 33 0.14 318 14.7
LIYCY 0.5*27C 33 0.14 326.4 14.7
LIYCY 0.5*28C 33 0.14 338.3 15.1
LIYCY 0.5*29C 33 0.14 346.7 15.1
LIYCY 0.5*30C 33 0.14 355.1 15.1
LIYCY 0.5*31C 33 0.14 367.4 15.7
LIYCY 0.5*32C 33 0.14 375.8 15.7
LIYCY 0.5*33C 33 0.14 384.1 15.7
LIYCY 0.5*34C 33 0.14 404.4 16.4
LIYCY 0.5*35C 33 0.14 412.8 16.4
LIYCY 0.5*36C 33 0.14 421.2 16.4
LIYCY 0.5*37C 33 0.14 429.6 16.4






LIYCY 0.75*2C 49 0.14 47.9 6.3
LIYCY 0.75*3C 49 0.14 60.5 6.6
LIYCY 0.75*4C 49 0.14 74.1 7.1
LIYCY 0.75*5C 49 0.14 91.8 7.9
LIYCY 0.75*6C 49 0.14 106 8.5
LIYCY 0.75*7C 49 0.14 117.2 8.5
LIYCY 0.75*8C 49 0.14 135.9 9.3
LIYCY 0.75*9C 49 0.14 151.5 10.1
LIYCY 0.75*10C 49 0.14 171.3 10.9
LIYCY 0.75*11C 49 0.14 184.3 11.2
LIYCY 0.75*12C 49 0.14 195.5 11.2
LIYCY 0.75*13C 49 0.14 215.5 11.9
LIYCY 0.75*14C 49 0.14 226.7 11.9
LIYCY 0.75*15C 49 0.14 241.6 12.5
LIYCY 0.75*16C 49 0.14 252.8 12.5
LIYCY 0.75*17C 49 0.14 274.9 13.4
LIYCY 0.75*18C 49 0.14 286 13.4
LIYCY 0.75*19C 49 0.14 297.2 13.4
LIYCY 0.75*20C 49 0.14 310.5 13.7
LIYCY 0.75*21C 49 0.14 323.7 14
LIYCY 0.75*22C 49 0.14 347.7 15
LIYCY 0.75*23C 49 0.14 363.4 15.6
LIYCY 0.75*24C 49 0.14 374.5 15.6
LIYCY 0.75*25C 49 0.14 388 15.9
LIYCY 0.75*26C 49 0.14 399.2 15.9
LIYCY 0.75*27C 49 0.14 410.3 15.9
LIYCY 0.75*28C 49 0.14 433.3 16.6
LIYCY 0.75*29C 49 0.14 444.5 16.6
LIYCY 0.75*30C 49 0.14 455.6 16.6
LIYCY 0.75*31C 49 0.14 471.4 17.2
LIYCY 0.75*32C 49 0.14 482.5 17.2
LIYCY 0.75*33C 49 0.14 493.7 17.2
LIYCY 0.75*34C 49 0.14 518.2 18
LIYCY 0.75*35C 49 0.14 529.4 18
LIYCY 0.75*36C 49 0.14 540.5 18
LIYCY 0.75*37C 49 0.14 551.7 18






LIYCY 1.0*2C 35 0.19 55.42 6.7
LIYCY 1.0*3C 35 0.19 70.97 7.0388
LIYCY 1.0*4C 35 0.19 91.36 7.8108
LIYCY 1.0*5C 35 0.19 108.56 8.44
LIYCY 1.0*6C 35 0.19 130.38 9.3
LIYCY 1.0*7C 35 0.19 144.33 9.3
LIYCY 1.0*8C 35 0.19 162.01 9.96
LIYCY 1.0*9C 35 0.19 186.2 11.04
LIYCY 1.0*10C 35 0.19 210.49 12
LIYCY 1.0*11C 35 0.19 226.68 12.3388
LIYCY 1.0*12C 35 0.19 240.64 12.3388
LIYCY 1.0*13C 35 0.19 258.36 12.9108
LIYCY 1.0*14C 35 0.19 272.32 12.9108
LIYCY 1.0*15C 35 0.19 296.98 13.74
LIYCY 1.0*16C 35 0.19 310.94 13.74
LIYCY 1.0*17C 35 0.19 329.55 14.4
LIYCY 1.0*18C 35 0.19 343.51 14.4
LIYCY 1.0*19C 35 0.19 357.47 14.4
LIYCY 1.0*20C 35 0.19 380.94 14.9388
LIYCY 1.0*21C 35 0.19 397.32 15.26
LIYCY 1.0*22C 35 0.19 425.69 16.34
LIYCY 1.0*23C 35 0.19 444.93 17
LIYCY 1.0*24C 35 0.19 458.89 17
LIYCY 1.0*25C 35 0.19 475.56 17.3388
LIYCY 1.0*26C 35 0.19 489.52 17.3388
LIYCY 1.0*27C 35 0.19 503.48 17.3388
LIYCY 1.0*28C 35 0.19 530.64 18.1108
LIYCY 1.0*29C 35 0.19 544.6 18.1108
LIYCY 1.0*30C 35 0.19 558.56 18.1108
LIYCY 1.0*31C 35 0.19 577.85 18.74
LIYCY 1.0*32C 35 0.19 591.81 18.74
LIYCY 1.0*33C 35 0.19 605.77 18.74
LIYCY 1.0*34C 35 0.19 634.66 19.6
LIYCY 1.0*35C 35 0.19 648.62 19.6
LIYCY 1.0*36C 35 0.19 662.58 19.6
LIYCY 1.0*37C 35 0.19 676.54 19.6






LIYCY 1.5*2C 53 0.19 84.9 8.5
LIYCY 1.5*3C 53 0.19 114.7 9.2
LIYCY 1.5*4C 53 0.19 142 9.9
LIYCY 1.5*5C 53 0.19 175 11
LIYCY 1.5*6C 53 0.19 209.2 12.1
LIYCY 1.5*7C 53 0.19 232.2 12.1
LIYCY 1.5*8C 53 0.19 268 13.3
LIYCY 1.5*9C 53 0.19 306.4 14.7
LIYCY 1.5*10C 53 0.19 336.1 15.6
LIYCY 1.5*11C 53 0.19 370.3 16.3
LIYCY 1.5*12C 53 0.19 393.2 16.3
LIYCY 1.5*13C 53 0.19 422.4 17
LIYCY 1.5*14C 53 0.19 445.3 17
LIYCY 1.5*15C 53 0.19 483.8 18.1
LIYCY 1.5*16C 53 0.19 506.7 18.1
LIYCY 1.5*17C 53 0.19 546.4 19.2
LIYCY 1.5*18C 53 0.19 569.4 19.2
LIYCY 1.5*19C 53 0.19 592.3 19.2
LIYCY 1.5*20C 53 0.19 619.4 19.7
LIYCY 1.5*21C 53 0.19 646.2 20.1
LIYCY 1.5*22C 53 0.19 690.1 21.5
LIYCY 1.5*23C 53 0.19 732.3 22.6
LIYCY 1.5*24C 53 0.19 755.2 22.6
LIYCY 1.5*25C 53 0.19 782.8 23.1
LIYCY 1.5*26C 53 0.19 805.7 23.1
LIYCY 1.5*27C 53 0.19 828.6 23.1
LIYCY 1.5*28C 53 0.19 870.7 24
LIYCY 1.5*29C 53 0.19 893.7 24
LIYCY 1.5*30C 53 0.19 916.6 24
LIYCY 1.5*31C 53 0.19 960.4 25.1
LIYCY 1.5*32C 53 0.19 983.3 25.1
LIYCY 1.5*33C 53 0.19 1006.3 25.1
LIYCY 1.5*34C 53 0.19 1039 26
LIYCY 1.5*35C 53 0.19 1061.9 26
LIYCY 1.5*36C 53 0.19 1084.8 26
LIYCY 1.5*37C 53 0.19 1107.8 26



Product Tags: Electrical Cable , Electrical Wire , Data Cable , CE Cable , LiYCY Cable , Copper Cable , ECHU Cable

Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
ECHU Special Wire & Cable (Kunshan) Co., Ltd.
Verified Business License
Business Type
Manufacturer
Year Established
2010
Annual Export Value
US$1 Million - US$1.5 Million
Product Certifications
ISO9001, ISO14000, Others
Contact Supplier Request Quote Chat Now

You May Also Like

Product Categories

Related Searches

Recommended Categories

Explore top categories and find suppliers for your specific needs
Communication Cable Communication Cable
Audio & Video Cable Audio & Video Cable
Power Cord & Extension Cord Power Cord & Extension Cord
Wire Harness Wire Harness
Cable Tools Cable Tools
Enameled Wire Enameled Wire
Optical Fiber Optical Fiber
Cable Assembly Cable Assembly
Power Cable Power Cable
