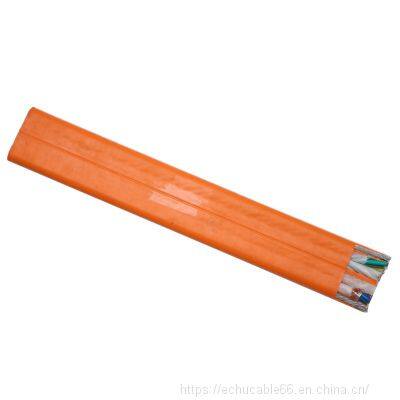

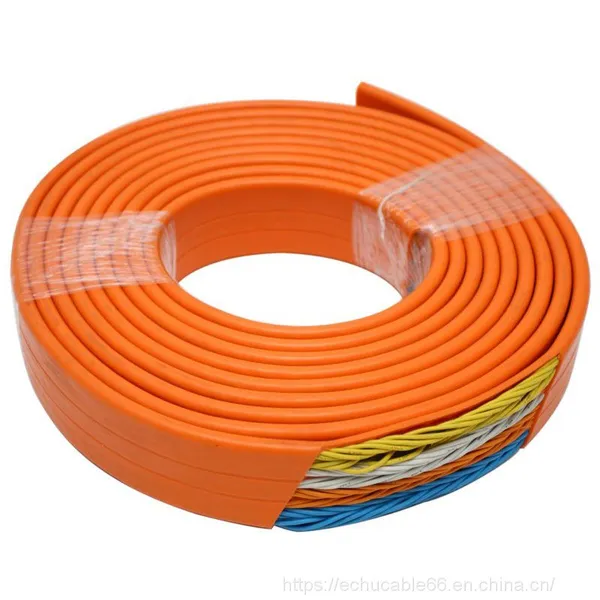

Flat Traveling Cable for Elevator With CE Certificate 18Core With Special PVC Jacket in Bunch Core or Parallel
Negotiable
MOQ: 300 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ECHU or OEM
Place of Origin:
China
Model Number:
TVVB,TVVBG, TVVBP, TVVBPG,H05VVH6-F, H05VVD3H6-F, H05V3V3H6-F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port/any China Port
Delivery Detail:
7 days
Related Products
-
ECHU Flat Flexible Traveling Cable for Elevator With CE Certificate TVVBP24x0.75+1x2Px0.75+TV With Special PVC JacketUS$ 3.35 - 3.82MOQ: 300 Meters -
Flat Flexible Traveling Elevator Cable With TV Camera Cable in Grey ColorUS$ 1.05 - 2.65MOQ: 300 Meters
-
ECHU CE Cert PVC Data Cable With Tinned Copper Braid LiYY, LiYCY(TP) in Grey ColorUS$ 0.12 - 0.89MOQ: 300 Meters
-
ECHU Four Core Flat Travel Cable for Lift or CraneUS$ 0.38 - 6.92MOQ: 300 Meters
-
E312831 UL Certified ROHS PVC Double Insulation 1/0AWG 600V UL1284 105℃ Electrical Wire in Yellow/green ColorUS$ 0.113 - 10.32MOQ: 305 Meters
Brand Name
ECHU or OEM
Place of Origin
China
Model Number
TVVB,TVVBG, TVVBP, TVVBPG,H05VVH6-F, H05VVD3H6-F, H05V3V3H6-F
Application
Construction
Insulation Material
Other, PVC
Jacket
Other, PVC
Conductor Material
Copper
Flat Travelling Cables, Flat Elevator Cables (TVVB, H05VVH6-F, H07VVH6-F)
Flat traveling cables
Flat elevator cables
H05VVH6-F
H07VVH6-F
Flat traveling cables application:
As control and signal cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables due to the closely packed shielded cores or bundles. It can be installed in dry and damp rooms.
Flat traveling cables Properties:
Outer sheath is extensively resistant to oil and cooling liquid.
Standards: GB5023.6, IEC60227-6, EN 50214
Structure:
Conductor: Fine strands of bare copper wire,
Acc. To VDE0295 CLASS5
Insulation: Special PVC
Colour: Yellow, white, orangeg with black number with white digital coding
Bearing: Steel rope
Outer sheath: Flexible PVC, cold resistance, flame resistance
Colour: Grey(RAL7001)
Technical data:
Rated voltage: 300/500V
Test voltage: 2500V
Minimum bending radius: 0.3m
Burning vertically test: GB/T18380.1-2001
IEC60332-1.1 993 test passed
Used under the nomal conditions. The temperature of conductor is lower than 70ºC
Temperature range:
-15ºC to 70ºC
TVVB (Parallel) free suspension length must not exceed 35 meters, and the lift speed 1.6m/s.
TVVB(interwist) free suspension length must not exceed 80 meters, and the life speed must not exceed 4m/s.
| Product Name | Specification | Width(mm) | Thickness(mm) | Weight (kg/km) |
Struction |
| H05VVH6-F | 2C0.5mm2 | 7.3± 1.0 | 4.1± 0.5 | 55 | Straight line |
| H05VVH6-F | 3C0.5mm2 | 9.3± 1.0 | 4.1± 0.5 | 71 | Straight line |
| H05VVH6-F | 4C0.5mm2 | 12.3± 1.0 | 4.1± 0.5 | 93 | Straight line |
| H05VVH6-F | 5C0.5mm2 | 15.2± 1.0 | 4.1± 0.5 | 114 | Straight line |
| H05VVH6-F | 6C0.5mm2 | 17.2± 1.0 | 4.1± 0.5 | 130 | Straight line |
| H05VVH6-F | 7C0.5mm2 | 19.2± 1.0 | 4.1± 0.5 | 146 | Straight line |
| H05VVH6-F | 8C0.5mm2 | 21.2± 1.5 | 4.1± 0.5 | 162 | Straight line |
| H05VVH6-F | 9C0.5mm2 | 23.2± 1.5 | 4.1± 0.5 | 178 | Straight line |
| H05VVH6-F | 10C0.5mm2 | 25.2± 1.5 | 4.1± 0.5 | 194 | Straight line |
| H05VVH6-F | 11C0.5mm2 | 27.2± 1.5 | 4.1± 0.5 | 210 | Straight line |
| H05VVH6-F | 12C0.5mm2 | 29.2± 1.5 | 4.1± 0.5 | 226 | Straight line |
| H05VVH6-F | 13C0.5mm2 | 31.2± 2.0 | 4.1± 0.5 | 242 | Straight line |
| H05VVH6-F | 14C0.5mm2 | 34.2± 2.0 | 4.1± 0.5 | 263 | Straight line |
| H05VVH6-F | 15C0.5mm2 | 36.2± 2.0 | 4.1± 0.5 | 279 | Straight line |
| H05VVH6-F | 16C0.5mm2 | 38.2± 2.0 | 4.1± 0.5 | 295 | Straight line |
| H05VVH6-F | 17C0.5mm2 | 40.2± 2.0 | 4.1± 0.5 | 311 | Straight line |
| H05VVH6-F | 18C0.5mm2 | 43.1± 2.0 | 4.1± 0.5 | 332 | Straight line |
| H05VVH6-F | 19C0.5mm2 | 45.1± 2.0 | 4.1± 0.5 | 348 | Straight line |
| H05VVH6-F | 20C0.5mm2 | 47.1± 2.0 | 4.1± 0.5 | 364 | Straight line |
| H05VVH6-F | 21C0.5mm2 | 49.1± 2.0 | 4.1± 0.5 | 380 | Straight line |
| H05VVH6-F | 22C0.5mm2 | 51.1± 2.0 | 4.1± 0.5 | 396 | Straight line |
| H05VVH6-F | 23C0.5mm2 | 53.1± 2.0 | 4.1± 0.5 | 412 | Straight line |
| H05VVH6-F | 24C0.5mm2 | 56.1± 2.0 | 4.1± 0.5 | 434 | Straight line |
| H05VVH6-F | 24C0.5mm2 | 31.3± 2.0 | 8.4± 0.5 | 428 | Bunch core |
| H05VVH6-F | 30C0.5mm2 | 39.9± 2.0 | 7.8± 0.5 | 530 | Bunch core |
| H05VVH6-F | 36C0.5mm2 | 43.5± 2.0 | 8.4± 0.5 | 628 | Bunch core |
| H05VVH6-F | 40C0.5mm2 | 50.7± 2.0 | 7.8± 0.5 | 677 | Bunch core |
| H05VVH6-F | 42C0.5mm2 | 49.5± 2.5 | 8.4± 0.5 | 717 | Bunch core |
| H05VVH6-F | 48C0.5mm2 | 55.5± 2.5 | 8.4± 0.5 | 806 | Bunch core |
| H05VVH6-F | 54C0.5mm2 | 61.5± 2.5 | 8.4± 0.5 | 895 | Bunch core |
| H05VVH6-F | 60C0.5mm2 | 67.5± 2.5 | 8.4± 0.5 | 984 | Bunch core |
| H05VVH6-F | 66C0.5mm2 | 73.5± 2.5 | 8.4± 0.5 | 1074 | Bunch core |
| H05VVH6-F | 2C0.75mm2 | 8.0± 1.0 | 4.2± 0.5 | 68 | Straight line |
| H05VVH6-F | 3C0.75mm2 | 10.4± 1.0 | 4.2± 0.5 | 90 | Straight line |
| H05VVH6-F | 4C0.75mm2 | 13.7± 1.0 | 4.2± 0.5 | 118 | Straight line |
| H05VVH6-F | 5C0.75mm2 | 17.1± 1.0 | 4.2± 0.5 | 145 | Straight line |
| H05VVH6-F | 6C0.75mm2 | 19.4± 1.0 | 4.2± 0.5 | 167 | Straight line |
| H05VVH6-F | 7C0.75mm2 | 21.8± 1.5 | 4.2± 0.5 | 188 | Straight line |
| H05VVH6-F | 8C0.75mm2 | 24.1± 1.5 | 4.2± 0.5 | 210 | Straight line |
| H05VVH6-F | 9C0.75mm2 | 26.5± 1.5 | 4.2± 0.5 | 231 | Straight line |
| H05VVH6-F | 10C0.75mm2 | 28.8± 1.5 | 4.2± 0.5 | 253 | Straight line |
| H05VVH6-F | 11C0.75mm2 | 31.2± 2.0 | 4.2± 0.5 | 274 | Straight line |
| H05VVH6-F | 12C0.75mm2 | 33.5± 2.0 | 4.2± 0.5 | 277 | Straight line |
| H05VVH6-F | 13C0.75mm2 | 35.9± 2.0 | 4.2± 0.5 | 298 | Straight line |
| H05VVH6-F | 14C0.75mm2 | 39.2± 2.0 | 4.2± 0.5 | 323 | Straight line |
| H05VVH6-F | 15C0.75mm2 | 41.6± 2.0 | 4.2± 0.5 | 344 | Straight line |
| H05VVH6-F | 16C0.75mm2 | 43.9± 2.0 | 4.2± 0.5 | 364 | Straight line |
| H05VVH6-F | 17C0.75mm2 | 46.3± 2.0 | 4.2± 0.5 | 384 | Straight line |
| H05VVH6-F | 18C0.75mm2 | 49.6± 2.0 | 4.2± 0.5 | 410 | Straight line |
| H05VVH6-F | 19C0.75mm2 | 52.0± 2.0 | 4.2± 0.5 | 430 | Straight line |
| H05VVH6-F | 20C0.75mm2 | 54.3± 2.0 | 4.2± 0.5 | 450 | Straight line |
| H05VVH6-F | 21C0.75mm2 | 56.7± 2.0 | 4.2± 0.5 | 470 | Straight line |
| H05VVH6-F | 22C0.75mm2 | 59.0± 2.0 | 4.2± 0.5 | 491 | Straight line |
| H05VVH6-F | 23C0.75mm2 | 61.4± 2.5 | 4.2± 0.5 | 511 | Straight line |
| H05VVH6-F | 24C0.75mm2 | 64.7± 2.5 | 4.2± 0.5 | 537 | Straight line |
| H05VVH6-F | 24C0.75mm2 | 31.3± 2.0 | 8.4± 0.5 | 470 | Bunch core |
| H05VVH6-F | 30C0.75mm2 | 39.9± 2.0 | 7.8± 0.5 | 582 | Bunch core |
| H05VVH6-F | 36C0.75mm2 | 43.5± 2.0 | 8.4± 0.5 | 691 | Bunch core |
| H05VVH6-F | 40C0.75mm2 | 50.7± 2.0 | 7.8± 0.5 | 748 | Bunch core |
| H05VVH6-F | 42C0.75mm2 | 49.5± 2.0 | 8.4± 0.5 | 791 | Bunch core |
| H05VVH6-F | 48C0.75mm2 | 55.5± 2.0 | 8.4± 0.5 | 891 | Bunch core |
| H05VVH6-F | 54C0.75mm2 | 61.5± 2.5 | 8.4± 0.5 | 990 | Bunch core |
| H05VVH6-F | 60C0.75mm2 | 67.5± 2.5 | 8.4± 0.5 | 1090 | Bunch core |
| H05VVH6-F | 66C0.75mm2 | 73.5± 2.5 | 8.4± 0.5 | 1190 | Bunch core |
