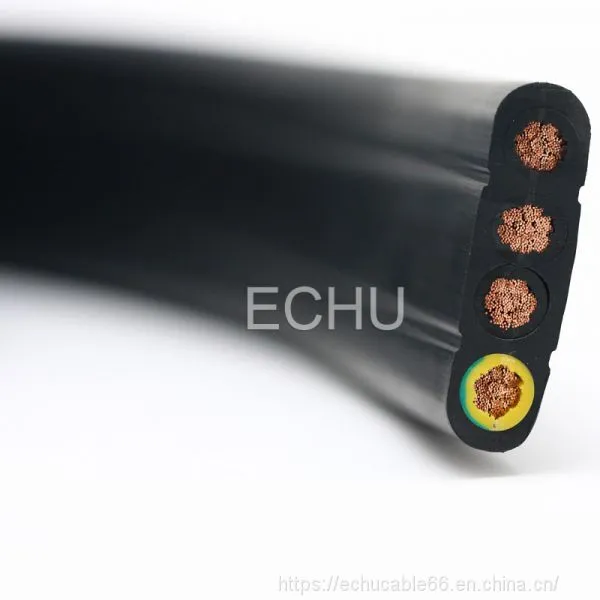

Flat Crane Cable, Control Cable
US$ 0.38 - 6.92
MOQ: 300 Meters
Key Specifications
Get Latest Price
Brand Name:
ECHU
Place of Origin:
China
Model Number:
YFFB,YFFBG, YFFBP, YFFBPG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Braid Flat Flexible Cable for Cranes/Hoists / PASSENGER / Material Handling / LifterUS$ 0.38 - 6.92MOQ: 300 Meters -
Multi Core Flat Cable for Crane or ConveyorsUS$ 0.38 - 6.92MOQ: 300 Meters
-
Flat Travel Cable for Lift or CraneUS$ 0.38 - 6.92MOQ: 300 Meters
-
ECHU Four Core Flat Travel Cable for Lift or CraneUS$ 0.38 - 6.92MOQ: 300 Meters
-
E312831 UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black ColorUS$ 0.1 - 5.51MOQ: 305 Meters
Brand Name
ECHU
Place of Origin
China
Model Number
YFFB,YFFBG, YFFBP, YFFBPG
Application
Construction
Insulation Material
Rubber
Jacket
Rubber
Conductor Material
Copper
As connecting and control cable for cranes and conveyers. It is suitable for the places of railway stations,crane and other related situations.
It is suitable as a control and connection cable for cranes and conveyers on building sites,container goods railway stations and dockyards where operating conditions are rough.
Properties
Sheath: special polychloreprene(Butadiene-acrylonitrile rubber), It remains flexible at -15 °C, Flame resistance and self-extinguishing.
Structure:
Conductor:superfine copper strands acc.to VDE0295,CLASS 5
Insulation:mixed PVC,resistant to oil,flame resistance and self-extinguishing
Colour:acc.to 227IEC(brown,blue,black,green/yellow)
5cores or more with black number with white digital coding
Shielding: Bare Copper Braid.(Individually screen or overall shielding).
Sheath:butadiene-acrylonitrile rubber;resistant to oil,flame retardant and self-extinguishing;
Colour:black(RAL9005)or grey (RAL7001)
Standard:acc.to VDE 0482,part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage:≤1.5mm 300/500V >1.5mm:450/750V
Test voltage: ≤1.5mm 2500V >1.5mm:3000V
Mimimum bending radius:0.3m
Burning vertically test:GB/T1 8380.1-2001, IEC 60332-1:1993 test
Passedstandard: GB5023.6,IEC60227-6,EN 50214.
Used under the normal conditions .the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C .
Cables are reommended for installations where the suspended length doesn’t exceed 80m;and the speed of travel does not exceed 4m/s
If it is more than this ,with steel
It is suitable as a control and connection cable for cranes and conveyers on building sites,container goods railway stations and dockyards where operating conditions are rough.
Properties
Sheath: special polychloreprene(Butadiene-acrylonitrile rubber), It remains flexible at -15 °C, Flame resistance and self-extinguishing.
Structure:
Conductor:superfine copper strands acc.to VDE0295,CLASS 5
Insulation:mixed PVC,resistant to oil,flame resistance and self-extinguishing
Colour:acc.to 227IEC(brown,blue,black,green/yellow)
5cores or more with black number with white digital coding
Shielding: Bare Copper Braid.(Individually screen or overall shielding).
Sheath:butadiene-acrylonitrile rubber;resistant to oil,flame retardant and self-extinguishing;
Colour:black(RAL9005)or grey (RAL7001)
Standard:acc.to VDE 0482,part 265-2-1 resp.EN 50265-2-1 and IEC 60332-1.
Technical data:
Rated voltage:≤1.5mm 300/500V >1.5mm:450/750V
Test voltage: ≤1.5mm 2500V >1.5mm:3000V
Mimimum bending radius:0.3m
Burning vertically test:GB/T1 8380.1-2001, IEC 60332-1:1993 test
Passedstandard: GB5023.6,IEC60227-6,EN 50214.
Used under the normal conditions .the temperature of conductor is lower than 70°C
Temperature range:-15°C to +70°C .
Cables are reommended for installations where the suspended length doesn’t exceed 80m;and the speed of travel does not exceed 4m/s
If it is more than this ,with steel
