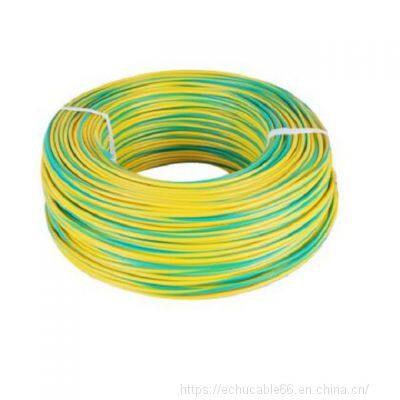

E312831 UL Certified ROHS PVC Double Insulation 2/0AWG 600V UL1284 105℃ Electrical Wire in Yellow/green Color
US$ 0.113 - 10.32
MOQ: 305 Meters
Key Specifications
Get Latest Price
Brand Name:
ECHU
Place of Origin:
China
Model Number:
UL1284
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
7 days
Related Products
-
E312831 UL Certified ROHS PVC Double Insulation 6AWG 600V UL1283 105℃ Electrical Wire in Black ColorUS$ 0.1 - 5.51MOQ: 305 Meters -
E312831 UL Certified ROHS PVC Double Insulation 5AWG 600V UL1283 105℃ Electrical Wire in Yellow/green ColorUS$ 0.11 - 5.51MOQ: 305 Meters
-
UL1061 SR-PVC Insulated Copper Wire Electronic Wire & Cable, LED LightUS$ 0.023 - 0.155MOQ: 305 Meters
-
ROHS PVC Electrical Earth Cable UL1015 16AWG 600V With UL CertificateUS$ 0.023 - 0.155MOQ: 305 Meters
-
E312831 UL Certified ROHS PVC Double Insulation 2AWG 600V UL1284 105℃ Electrical Wire in Yellow/green ColorUS$ 0.112 - 10.32MOQ: 305 Meters
Brand Name
ECHU
Place of Origin
China
Model Number
UL1284
Type
Insulated
Application
Heating
Insulation Material
PVC
Conductor Material
Copper
Conductor Type
Stranded
Product Description:
UL CERT.:E312831
UL1284: 1AWG, 2AWG, 3AWG,4AWG,5AWG,6AWG,7AWG,8AWG, 1/0AWG,2/0AWG, 3/0 AWG, 4/0AWG, 250Kcmil, 300kcmil,350kcmil, 400kcmil,450kcmil,500kcmil,500kcmil
Construction
Conductor :bare copper or tinned copper conductor Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
Construction
Conductor :bare copper or tinned copper conductor Insulation: PVC
Standards
International: UL758 , UL1581
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:105℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil
| TYPE | Spec. AWG | Bare Copper | Tinned Copper | Insulation Thickness mm | Weight KG/KM | ||
| Conductor No. | Conductor Dia. | Conductor No. | Conductor Dia. | ||||
| UL1284 | 8 | 118 | 0.3 | 118 | 0.30 | 2.03 | 138.4 |
| UL1284 | 7 | 147 | 0.3 | 147 | 0.30 | 2.03 | 161.8 |
| UL1284 | 6 | 189 | 0.3 | 189 | 0.30 | 2.03 | 194.9 |
| UL1284 | 5 | 238 | 0.3 | 238 | 0.30 | 2.03 | 232.8 |
| UL1284 | 4 | 299 | 0.3 | 299 | 0.30 | 2.03 | 279.0 |
| UL1284 | 3 | 378 | 0.3 | 378 | 0.30 | 2.03 | 337.9 |
| UL1284 | 2 | 475 | 0.3 | 475 | 0.30 | 2.03 | 409.1 |
| UL1284 | 1 | 600 | 0.3 | 600 | 0.30 | 2.03 | 499.6 |
| UL1284 | 1/0 | 251 | 0.52 | 272 | 0.50 | 2.03 | 609.7 |
| UL1284 | 2/0 | 317 | 0.52 | 343 | 0.50 | 2.03 | 749.9 |
| UL1284 | 3/0 | 400 | 0.52 | 433 | 0.50 | 2.03 | 924.3 |
| UL1284 | 4/0 | 505 | 0.52 | 546 | 0.50 | 2.03 | 1142.9 |
| UL1284 | 250 | 598 | 0.52 | 647 | 0.50 | 2.41 | 1372.4 |
| UL1284 | 300 | 716 | 0.52 | 774 | 0.50 | 2.41 | 1617.7 |
| UL1284 | 350 | 833 | 0.52 | 901 | 0.50 | 2.41 | 1859.5 |
| UL1284 | 400 | 955 | 0.52 | 1033 | 0.50 | 2.41 | 2110.4 |
| UL1284 | 450 | 1073 | 0.52 | 1161 | 0.50 | 2.41 | 2352.2 |
| UL1284 | 500 | 1191 | 0.52 | 1288 | 0.50 | 2.41 | 2593.1 |
| UL1284 | 550 | 1313 | 0.52 | 1420 | 0.50 | 2.79 | 2894.1 |
