1、 Product introduction

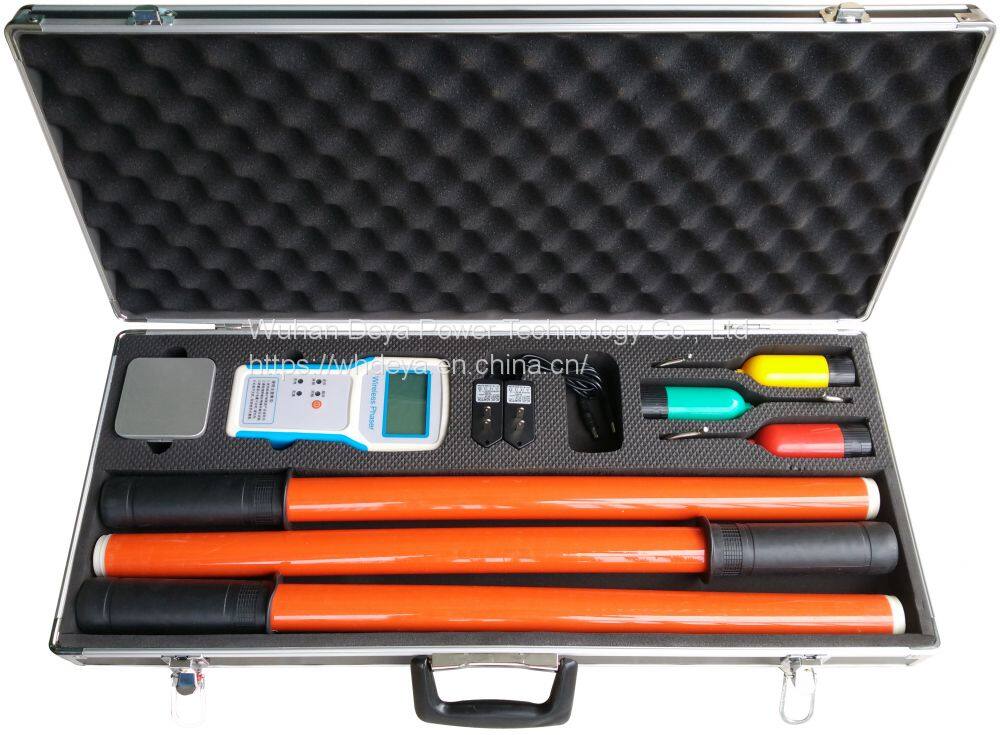

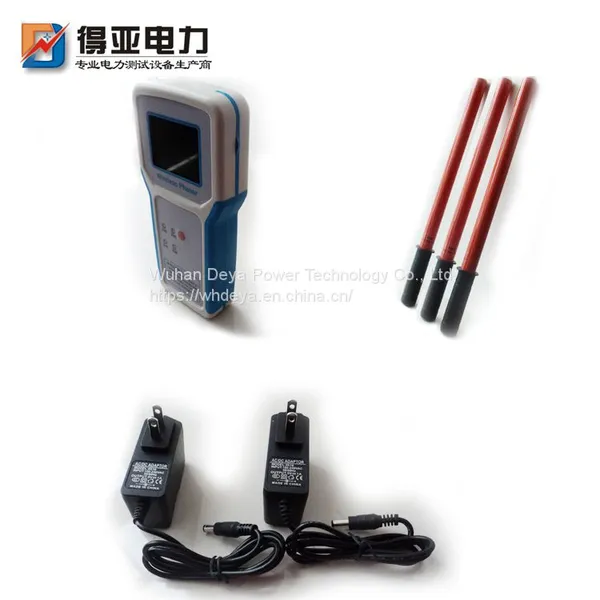

DYHX-8700 multi-function nuclear phase meter (also known as wireless high-voltage phase sequence meter) (hereinafter referred to as "the instrument") is used to measure the phase sequence of three-phase lines and the phase difference between ABC, and can also be used for nuclear phase operation. The instrument is suitable for live working of 6KV~220KV transmission lines, and has the function of high voltage electricity detection.
The instrument adopts wireless transmission technology, which is safe, reliable and convenient to use. It is possible to directly measure the phase sequence of high-voltage lines. Conform to the relevant standards of national quality supervision, inspection and testing of power safety tools and instruments.
2、 Technical characteristics
1. Phase difference accuracy: error ≤ 10 °.
2. Frequency accuracy: ± 0.1HZ.
3. The voltage level measured by this product is 6KV-220KV.
4. The transmission distance between the transmitter and the receiving host is more than 130 meters.
5. Judgment of phase sequence results: A ->B ->C is the sequence with a difference of 120 °; Non order is reverse order.
6. Judgment of nuclear phase results: phase difference ≥ 30 ° is out of phase, and phase difference
7. Real person voice prompts the measurement results.
8. The host displays the battery power and automatically shuts down after half an hour without operation.
9. All three transmitters and receivers have built-in rechargeable lithium batteries.
10. Leakage current is less than 10uA during high voltage measurement.
11. The working power consumption of transmitter is less than 0.1W, and that of receiving host is less than 0.4W.
12. Working environment: - 35 ℃ ---+45 ℃, humidity ≤ 95% RH.
13. Storage environment: - 40 ℃ ---+55 ℃, humidity ≤ 90% RH.
14. Operating weight: about 6.5KG.
15. Package size: 71cm long * 35cm wide * 11cm high.
