Cable fault location system DYDL-850
- 100 Set / Sets per Month
- wuhan
- T/T Credit Card Cash Other
- 7 days
Product Details
Brand Name: | Deya Power | Place of Origin: | China | Model Number: | DYDL-850 |
Product Description
1、 Product Overview

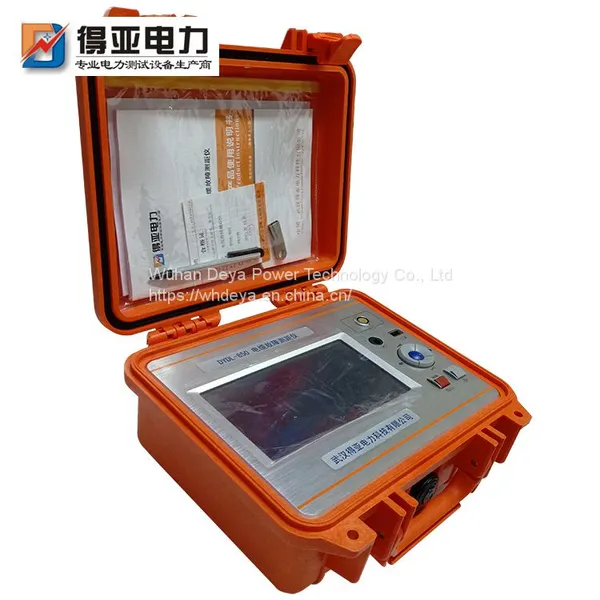

The power cable fault locator is used for distance measurement of power cable fault points. It is characterized by easy identification of waveform, high resolution, friendly interface, support for touch keys and mechanical keys, and easy operation.

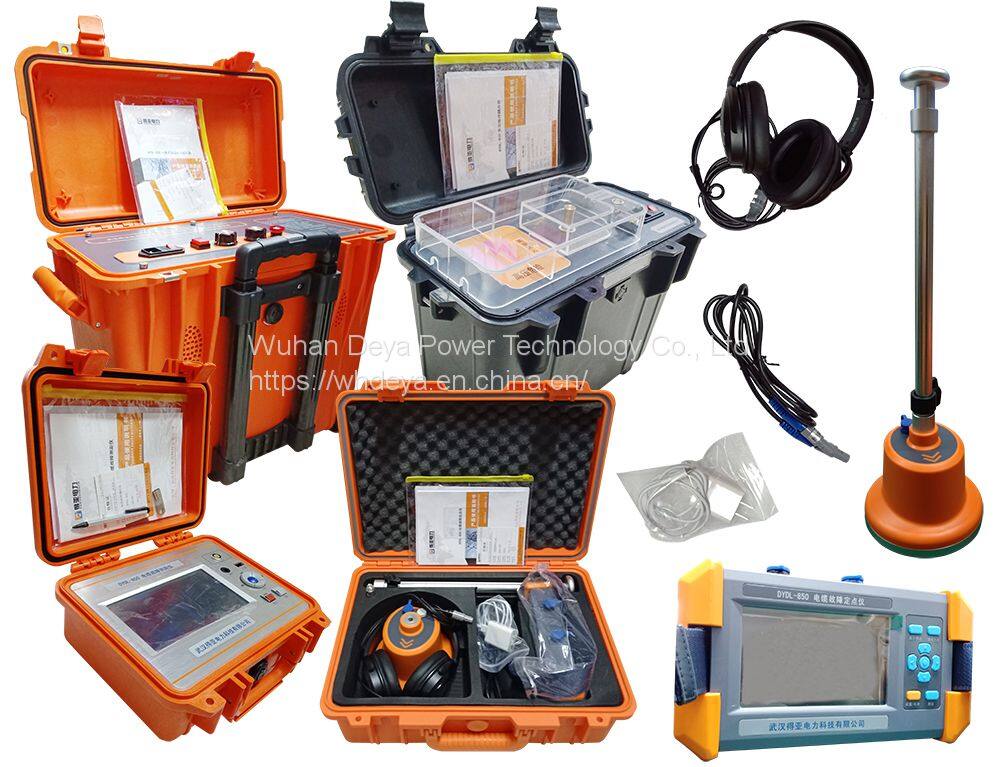

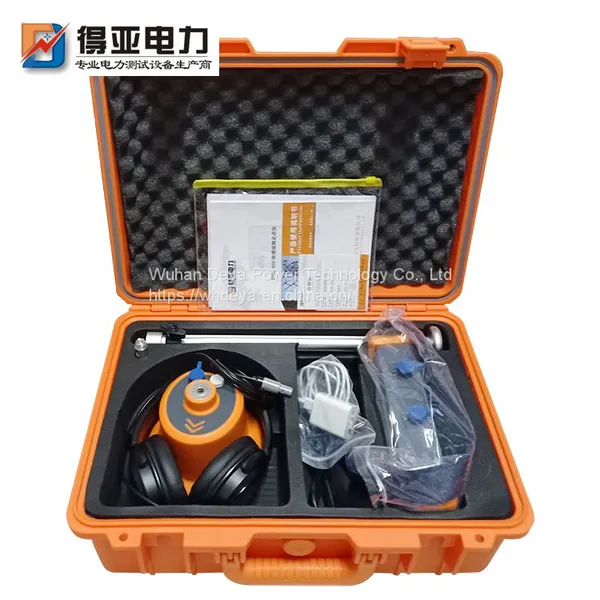

It can be used independently under low-voltage pulse mode; In pulse current mode, it needs to be used together with high-voltage signal generator; In the multiple pulse mode, it must also cooperate with the cable test multiple pulse coupler; After the distance measurement is completed, the digital multi-function cable fault fixer must be used for accurate fixed-point. Together, they form a set of high-performance cable fault finding systems that can provide a variety of innovative features.
2、 Functional features
1. Multiple ranging methods:
Low voltage pulse method: it is applicable to the accurate ranging of low resistance, short circuit and broken line faults, as well as the measurement of the full length of the cable, intermediate joints, T-joints and terminal heads, and the correction of wave velocity.
Pulse current method: it is applicable to the ranging of high resistance and flashover faults. The current coupler is used to collect signals from the test ground wire, which is completely isolated from the high-voltage part, safe and reliable.
Multiple pulse method: The most advanced ranging method in the world is the improvement of the secondary pulse method. The waveform is clear and easy to identify, and the ranging accuracy is high.
2.200MHz real-time sampling:
The highest sampling frequency of domestic similar instruments is in line with the highest international level.
Provide the maximum ranging resolution of 0.4m, with small measurement blind area, which is particularly effective for near end faults and short cables.
3. Touch operation and mechanical key operation
Touch the key to make the operation more flexible, with gesture operation function.
The cursor can be dragged and double clicked for easier and more convenient positioning.
Compatible with mechanical key operation, five way key operation, more user-friendly operation.

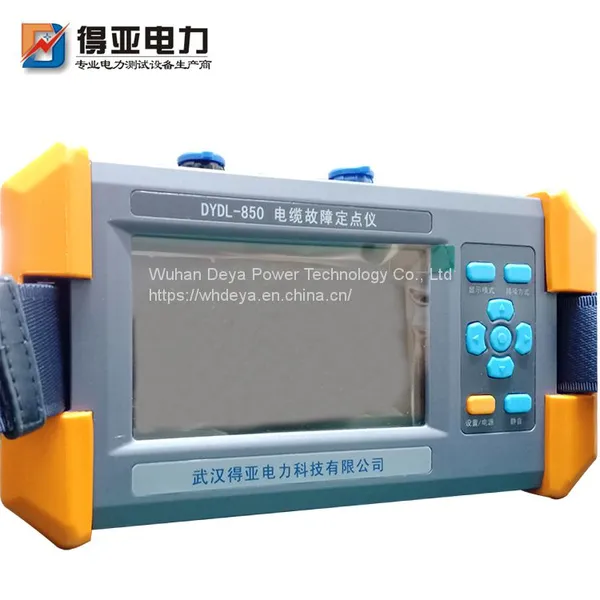

4. LED large screen color LCD display, friendly interface:
The waveform is clear, especially in multiple pulse tests, multiple waveforms are displayed in different colors at the same time, which is easier to identify.
7-inch large screen LCD, 160 ° viewing angle, brightness of 750cd/m2, meeting the requirements of sunlight visibility.
The function menu is simple, practical and powerful.
5. Picture in picture temporary display function
The interface display adopts the picture in picture mode, which is composed of a main window and three temporary storage windows. Three temporary storage waveforms can be viewed at the same time, making the waveform comparison function more simple, intuitive and convenient.
6. Waveform storage and computer online communication:
A large number of waveforms can be stored in the machine.
U disk is used to export waveform data.
It can be connected with computer (desktop or laptop) for online communication.
Provide computer background management software to manage the data dumped by USB flash disk or online data.
7. Power management:
When the instrument is not operated within 2 minutes, the backlight will be weakened; 10 minutes without operation, it will automatically shut down to reduce power consumption; When the battery is under voltage, the instrument will automatically shut down to protect the battery.
Built in lithium ion battery, equipped with special lithium battery charger, provides a reliable charging mode.
Long working time: the instrument can work continuously for more than 7 hours with a fully charged lithium ion battery (the service time will be shortened after the battery is aged).
8. Strong case, light and portable.
3、 Technical indicators
1. Working mode: low voltage pulse, pulse current, multiple pulses.
2. Signal gain adjustment range: 70dB.
3. Low voltage pulse transmitting voltage: 32V.
4. Maximum resolution: 0.4m.
5. Maximum sampling frequency: 200MHz real-time sampling.
6. Maximum range: 100km.
7. Distance blind zone: 2m.
8. Communication interface: USB, Bluetooth (optional).
9. Power supply: lithium ion battery pack, nominal voltage 7.4V.
10. Buttons: imported from Denmark, with reliability no less than 10 million times.
11. Battery power supply time: The fully charged polymer lithium ion battery can be used continuously for more than 7 hours (with the aging of the battery, the continuous service time will be shortened accordingly).
12. Charger: input AC220V, 50Hz, charging current 1A, charging time 6 hours.
13. Volume: 274 × two hundred and eighteen × 81mm
14. Mass: 3.5kg
15. Service conditions:
1) Temperature: - 10 ℃~+40 ℃;
2) Humidity: 5% ~ 90% RH (25 ℃);
3) Altitude: h<4500m.
