Y3180H Standard Precision Hobbing Machine With CE Standard

Y3180H Standard Precision Hobbing Machine With CE Standard photo-1

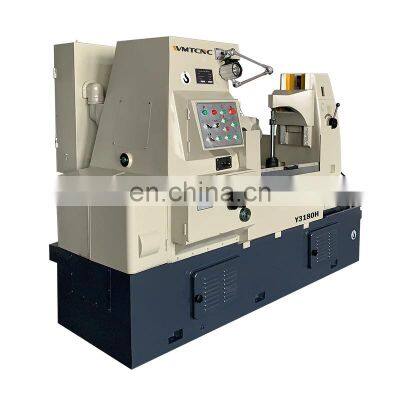

Y3180H Standard Precision Hobbing Machine With CE Standard photo-2
Y3180H Standard Precision Hobbing Machine With CE Standard photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Properties and pecularities

1. For standard precision hobbing machine, we take regulation from “GB8064-87” to test our machines cefore delivered from factory. Under normal conditions, the precision come up to “GB10095-88” 7th degree precision according to 2. This machine applies to bulk or small batch of hobbing process against roller gear or worm wheel 3. According to buyer's requirement, there is tangential advancing multi-heads worm wheel avaible for option
Name
Y3180H
Max. diameter of workpiece
With smaller column 550mm
Without smaller column 800mm
Max. processing module
10mm
Max. processing width
300mm
Min. number of teeth processed
8
Max. vertical travel of tool seat
350mm
Max. returning angle of tool seat
240°
Distance from axis of hob to operating platform
235-585mm
Taper of principal spindle
MT5
Allowed for install hob
Max.diameter 180mm
Min. length 180mm
Max. axis movement of hobbing cutter
50mm
Dia. of hob mandrel
φ22、φ27、φ32、φ40mm
Distance from axis of hob to axis of operating platform
50-550mm
Swift movement distance of operating platform hydraulic unit
50mm
Hole diameter of operating platform
80mm
Hole taper of spindle seat of workpiece
MT5
Dia. of operating platform
650mm
Principal spindle REV and range of REV
8step 40-200r/min
Swift movement speed of tool seat
≤540mm/min
Swift movement speed of operating platform
≤500mm/min
Distance from operating platform surface to cutter racket bearing end surface
400-600mm
Axis feeding volume steps and range of feeding volume
12step 0.4-4mm/r
Principal motor power and synchronous rev
5.5kw 1500r/min
Power of axis swift motor and synchronous rev
1.1kw 1500r/min
Power of swift motor of operating platform and synchronous rev
0.55kw 1500r/min
Power of hydraulic pump and synchronous rev
1.1kw 910r/min
Approximate mass of machine
5500kg
Outer size of machine(L×W×H)
2752×1490×1870mm
