M618A Surface Grinding Machine With CE Standard
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M7140 Benchtop Surface Grinder With China PriceNegotiableMOQ: 1 -
MQ6025A Universal Tool Grinder for Metal WorkingNegotiableMOQ: 1
-
M20A Mini Size Grinding Machine Precision Universal Tool Grinder Small Polishing MachineNegotiableMOQ: 1
-
Tool Grinder M30A U2 Type Universal Cutter Grinder in StockNegotiableMOQ: 1
-
BG-150 150mm Large Face Belt Grinding Machine for Wood and Metal WorkingNegotiableMOQ: 1
Specifications
Surface Grinding Machine
Manual grinder for metal
Processing stability is very high
Good performance
CE
Main specification M618 surface grinding machine
Grinding machine specification |
Unit |
M618 |
Table maximum cutting area (LxWxH) |
mm |
500x190x335 |
Max. Grinding Length |
mm |
500 |
Max. Grinding width |
mm |
190 |
Distance From Table Surface To Spindle Center |
mm |
335 |
Slide way |
V-type rail with Steel-ball |
|
Maximum work load |
Kg |
200 |
Table size |
mm |
460x180 |
Number of T -Slot |
mmxn |
14x1 |
Front and rear wheel feed |
mm |
0.02/Graduation2.5/revolution |
On the hand wheel feed |
mm |
0.01/Graduation1.25/revolution |
Wheel Size(dia×width×bore) |
mm |
180×13×31.75 |
Spindle speed |
rpm |
2850 |
Spindle motor |
Kw |
1.1 |
Cooling pump |
Kw |
0.4 |
Packing Size (LxWxH) |
mm |
1240x1080x1680 |

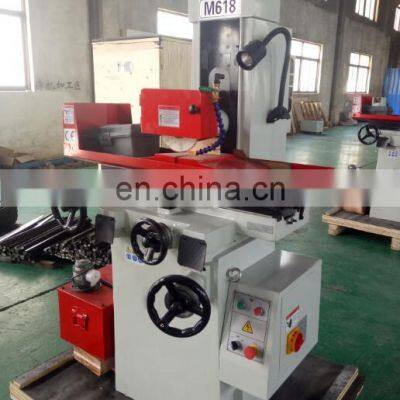

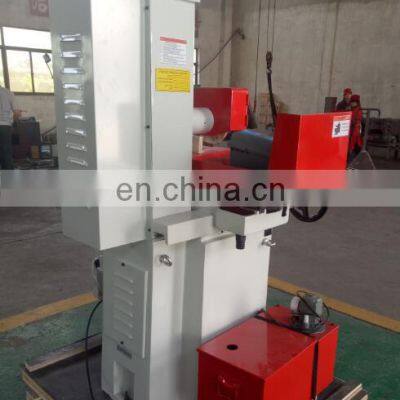

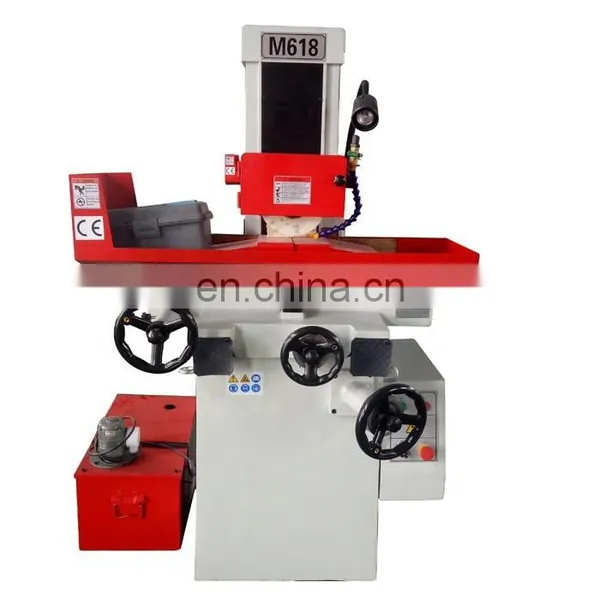

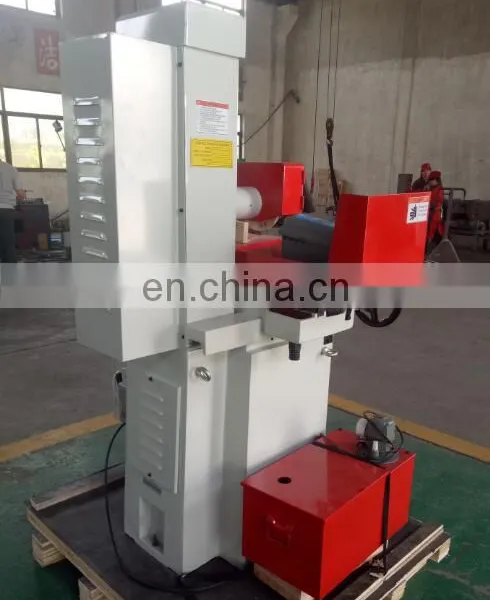

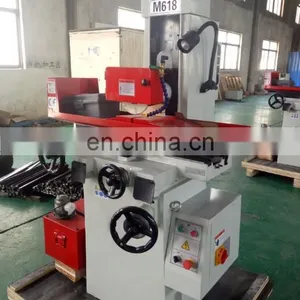

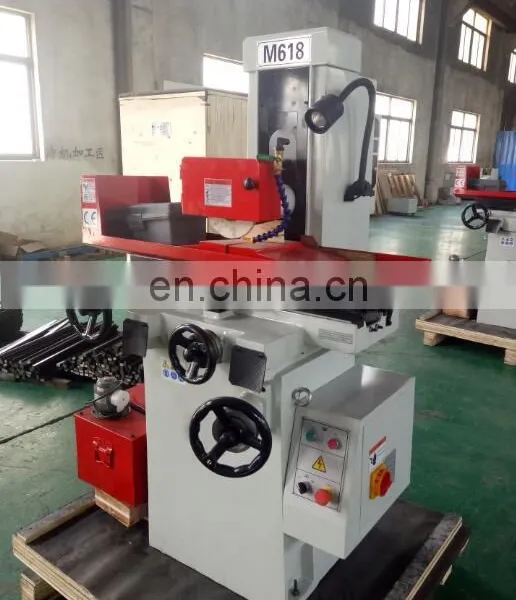

Machine Show:
