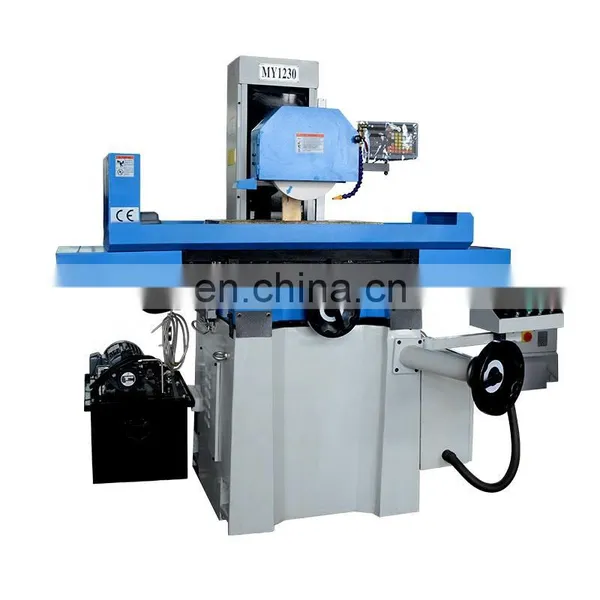

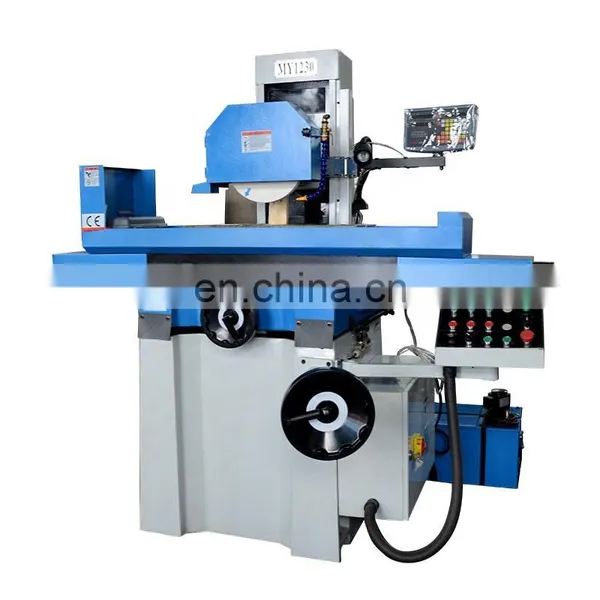

MY1230 Surface Grinding Machines
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Precision Benchtop Surface Grinder MY1022 With CE StandardNegotiableMOQ: 1 -
MY1022 Hydraulic Surface Grinding Machine With China PriceNegotiableMOQ: 1
-
Machine Grinder MY1224 for Precision Metal GrindingNegotiableMOQ: 1
-
M820 Manual Surface Grinding Machine for Metal WorkNegotiableMOQ: 1
-
Grinding Machines M618 6'' x 18'' Manual Surface Grinding Machine for Metal With CE StandardNegotiableMOQ: 1
Product Description
Features:
benchtop surface grinder,Machine grinder with electric magnetic chuck MY1230
Item |
Specification |
MY1224 |
MY1230 |
|||
Worktable |
piece to be ground(LxWxH) |
600x300mm |
700x320mm |
|||
Max.travel of table(LxW) |
640x320mm |
640x370mm |
||||
Table max. cutting area(Lxw) |
640x320mm |
760x370mm |
||||
Number of T-slot |
1x14mm |
1x14mm |
||||
The grinding head |
Distance from table surface to spindle center |
490mm |
540mm |
|||
Wheel size(dia x width x bore) |
250x25.4x76.2mm |
335x40x127mm |
||||
Spindle speeds |
1440r/m |
1440r/m |
||||
The amount of feed |
Table longitudinal (left and right) speed(stepless) |
3-20/min |
5-25/min |
|||
Table horizontal(before and after)the amount of feed |
Continous(variable speed) |
150mm/min |
150mm/min |
|||
Intermittent(stepless) |
0-5 |
0-5 |
||||
The handwheel rotates |
4mm |
4mm |
||||
Handwheel each grid |
0.02mm |
0.02mm |
||||
Vertical (up and down)feed wheel feed |
The handwheel rotates |
2mm |
2mm |
|||
Handwheel each grid |
0.01mm |
0.01mm |
||||
Motor |
Spindle motor |
4kw |
4kw |
|||
Cooling motor |
40w |
40w |
||||
Reversing feeder |
Hydraulic motor |
1.5kw |
1.5kw |
|||
Working pressure |
3mpa |
3mpa |
||||
Fuel tank capacity |
80L |
80L |
||||
The max.flow |
18L/min |
18L/min |
||||
Working precision |
The machined surface of the base of parallelism |
300/0.004mm |
300/0.004mm |
|||
Surface Roughness |
Ra0.32um |
Ra0.32um |
||||
Net weight |
1.5T |
2.1T |
||||
Gross weight |
1.65T |
2.35T |
||||
Machine size |
1960x1630x1870mm |
25600x2430x1920mm |
||||

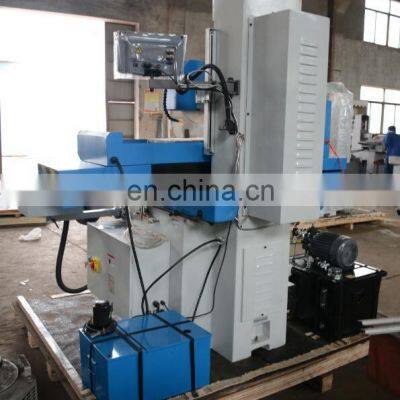

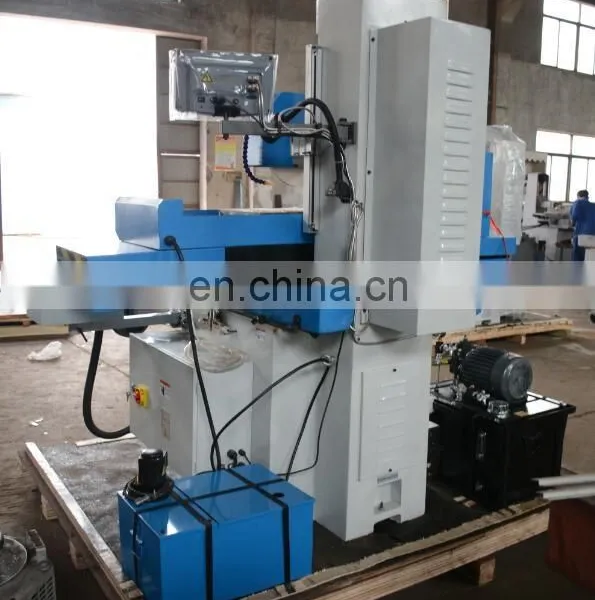

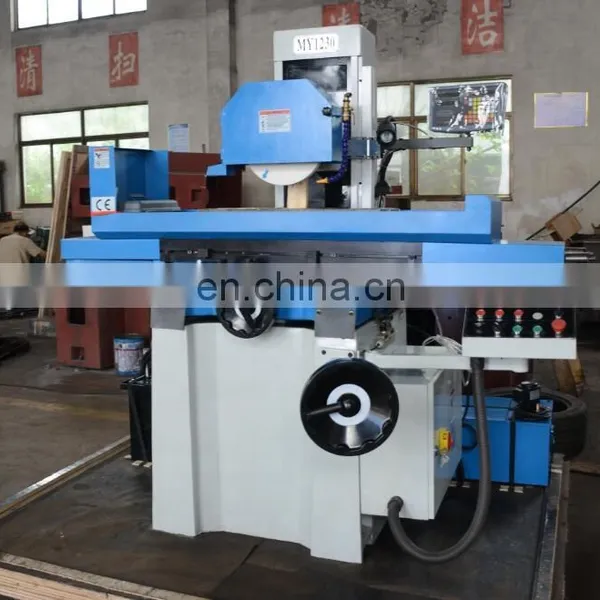

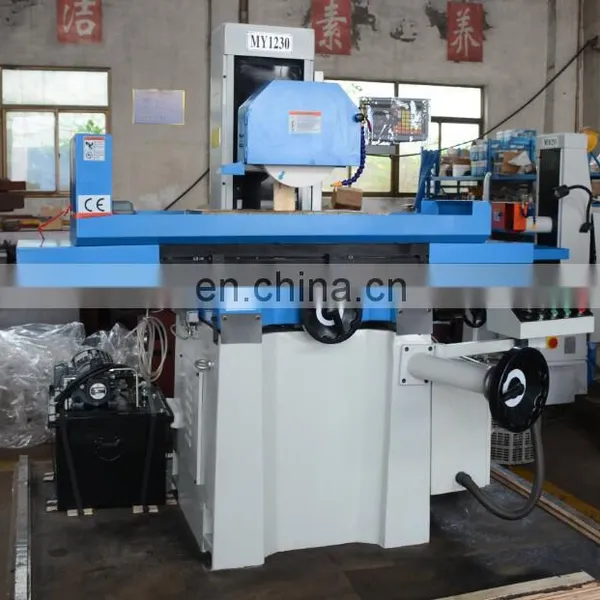

Machine details：
Package&Shipping
Our company
Certificate
Exhibition
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
