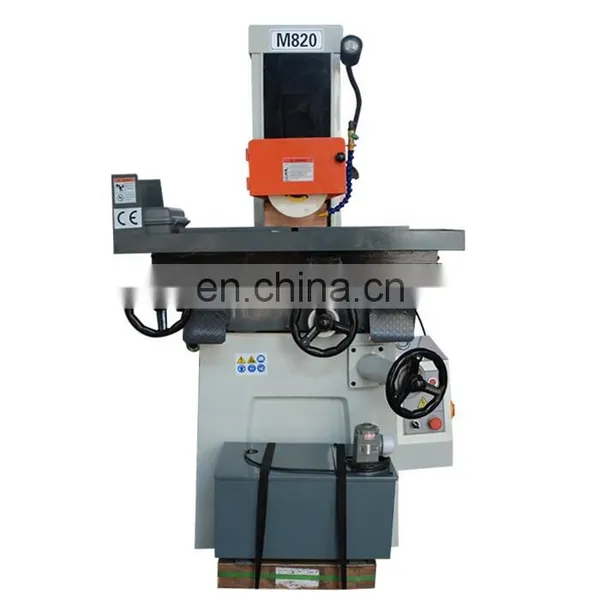

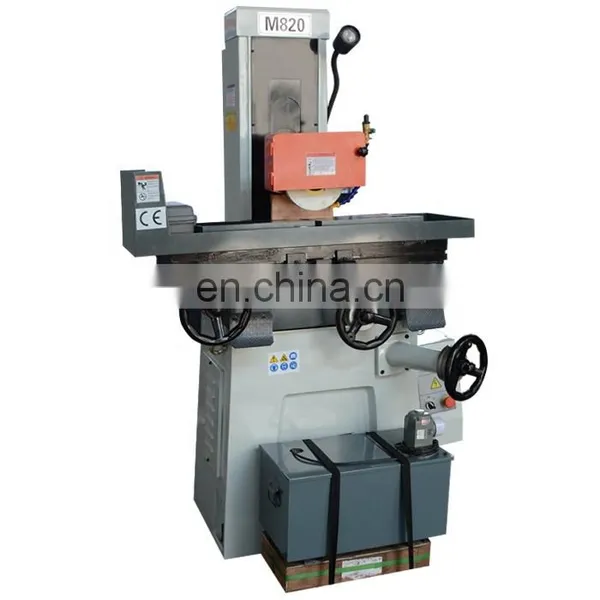

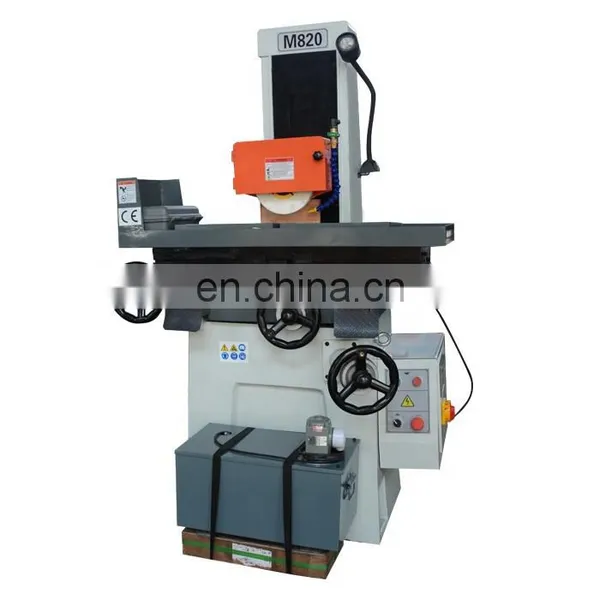

M820 Manual Surface Grinding Machine for Metal Work
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Grinding Machines M618 6'' x 18'' Manual Surface Grinding Machine for Metal With CE StandardNegotiableMOQ: 1 -
MY820 Precision Surface Grinding Machine With CENegotiableMOQ: 1
-
Hydraulic Surface Grinding Machine MY1230AHDNegotiableMOQ: 1
-
M1308 M1408 Cheap Mini Grinder Universal Cylindrical Grinding MachineNegotiableMOQ: 1
-
M1320HX500 800mm Cylindrical Grinding Machine for External GrindingNegotiableMOQ: 1
Product Description
Universal Manual surface grinder surface grinding machine price M820
Main features of M820 Manual metal table magnetic chuck surface grinding machine:
1.Quality castings and Precision ball bearing supporting the spindle

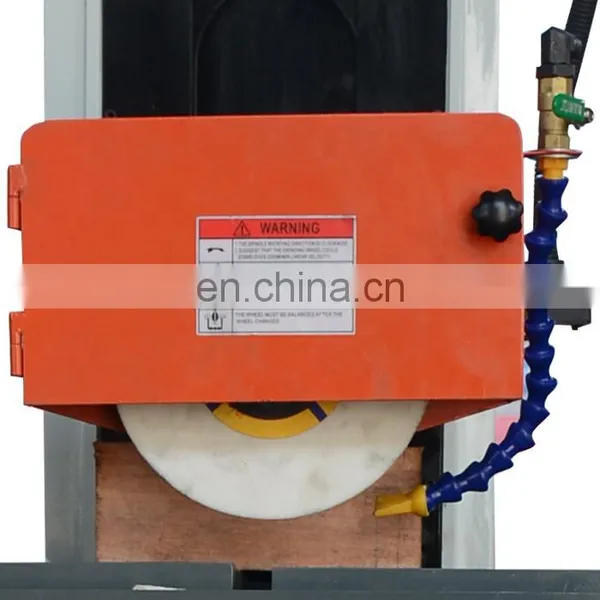

2.Coolant system with nozzle and flow control valve
3.Cast iron machine body and stand for maximum rigidity and smooth operation
4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.The machine is suitable for grinding without auto feed and is installed with permanent magnetic chuck or electromagnetic chuckaccording to customer’s requirement.
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light
2.Coolant system with nozzle and flow control valve
3.Cast iron machine body and stand for maximum rigidity and smooth operation
4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.The machine is suitable for grinding without auto feed and is installed with permanent magnetic chuck or electromagnetic chuckaccording to customer’s requirement.
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light
Specification |
M820 |
||||
Table Size (L× W) |
mm |
480×200 |
|||
Max movement of working table(L× W) |
mm |
530×220 |
|||
T -Slot number×width |
mm |
1×14 |
|||
Max distance from spindle center to table surface |
mm |
440 |
|||
Wheel Size(Outer diameter×width×Inner diameter) |
mm |
φ200×20×Φ31.75 |
|||
Wheel speed |
50HZ |
r/min |
2850 |
||
Wheel speed |
60HZ |
r/min |
3440 |
||

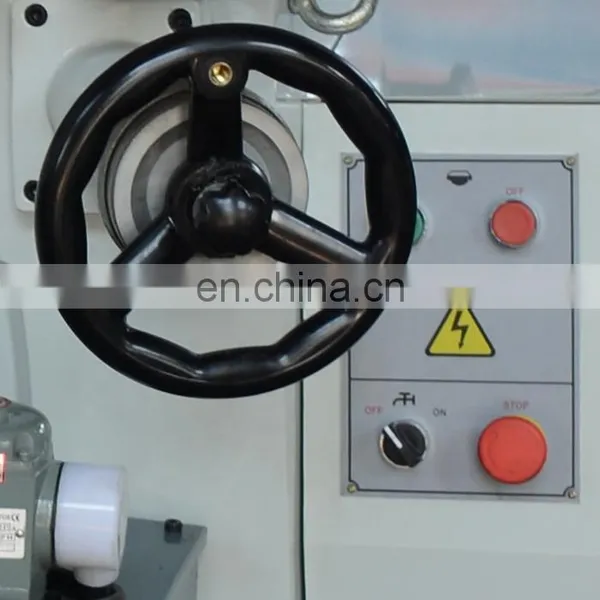

Vertical feed on handwheel |
Per revolution |
mm |
2.5 |
||
Vertical feed on handwheel |
Per graduation |
mm |
0.02 |
||
Cross feed on handwheel |
Per revolution |
mm |
1.25 |
||
Cross feed on handwheel |
Per graduation |
mm |
0.01 |
||
Spindle motor |
kw |
1.1 |
|||
Coolant pump motor |
w |
40 |
|||
The parallelism of working surface to base level |
mm |
00:00.0 |
|||
Surface roughness |
μm |
Ra0.32 |
|||
Net |
kg |
700 |
|||
Gross |
kg |
800 |
|||
Overall dimension(L×W×H) |
mm |
1680x1140x1760 |
|||
Package dimension(L×W×H) |
mm |
1140x1250x1940 |
|||
Details Images
Our Company
Customer Photo
Packing & Delivery
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
