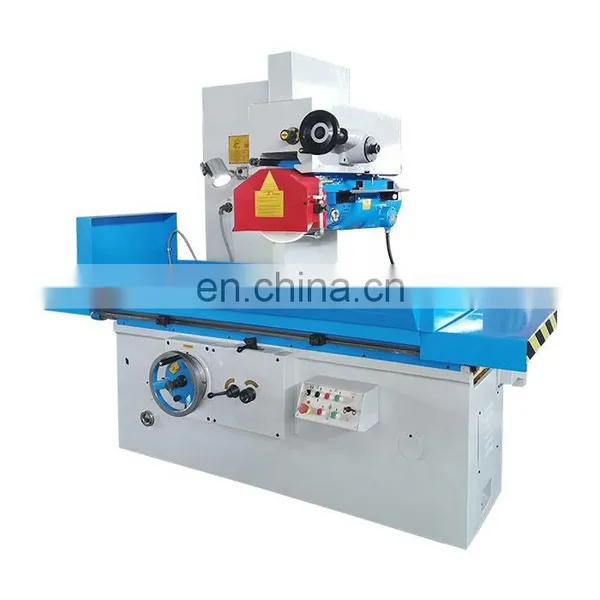

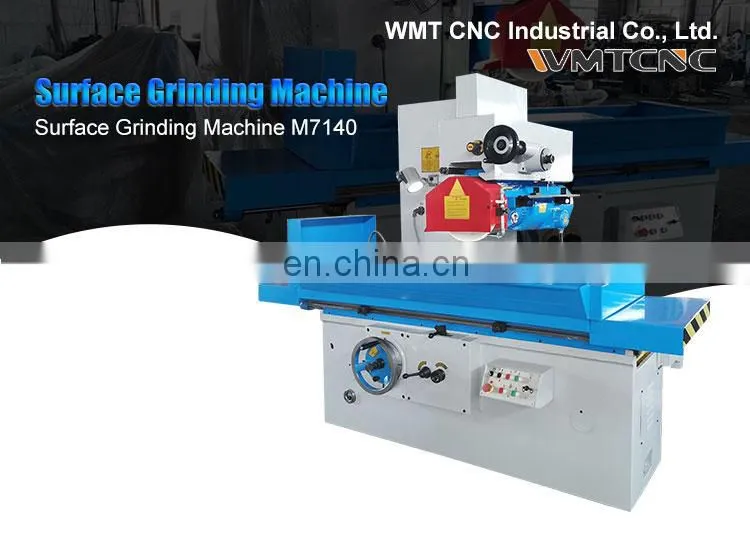

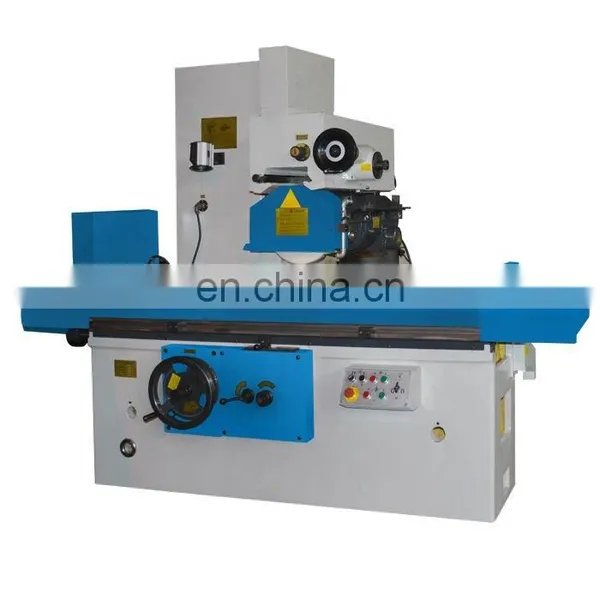

M7140 Benchtop Surface Grinder With China Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MQ6025A Universal Tool Grinder for Metal WorkingNegotiableMOQ: 1 -
M20A Mini Size Grinding Machine Precision Universal Tool Grinder Small Polishing MachineNegotiableMOQ: 1
-
Tool Grinder M30A U2 Type Universal Cutter Grinder in StockNegotiableMOQ: 1
-
BG-150 150mm Large Face Belt Grinding Machine for Wood and Metal WorkingNegotiableMOQ: 1
-
BG75 Portable Large Grinding Machine Sale Polishing Machine Belt GrinderNegotiableMOQ: 1

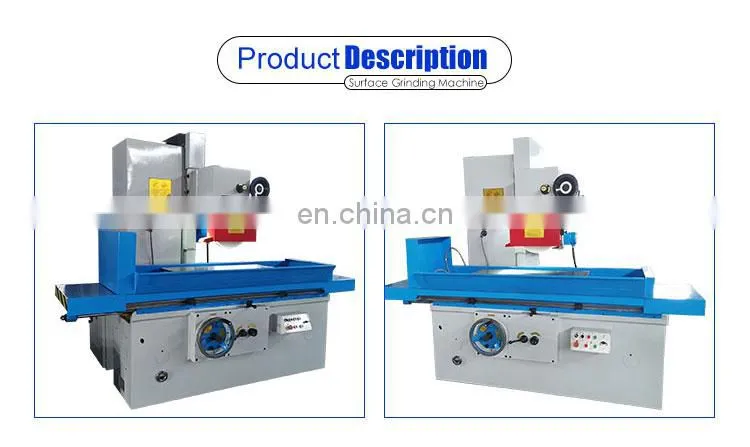

Features: benchtop surface grinder
1.Compact structure and easy operate
2.Hydraulic transmission on longitudinal manual and auto feed to transverse,rapid movment and micro adjust mechanism on vertical.
Main Technical Data
Specification |
M7140 |
||
Max workpiece to be ground |
1000x400mm |
||
Maximum table vertical movment |
1100mm |
||
Distance from table to spindle center |
570mm |
||
The maximun lateral displacement of the grinding head |
450mm |
||
Vertical head feed handwheel graduation value/ each grid |
0.01mm |
||
Vertical head feed handwheel graduation value/each rotates |
1mm |
||
Fast lifting motor |
Power |
0.37KW |
|
Speed |
1440rpm/min |
||
Wheel Size(dia×width×bore) |
φ350x40x127mm |
||
Spindle speed |
1440rpm/min |
||
The total power of electeic motor |
11KW |
||
Spindle motor |
7.5KW |
||
The oil pump motor |
3KW |
||
The mechanical surface of the base of parallelis |
300/0.004mm |
||
Surface roughness |
Ra:0.63μm |
||
Gross/Net weight |
3700/4200kgs |
||
Packing size |
2800x1750x2350mm |
||

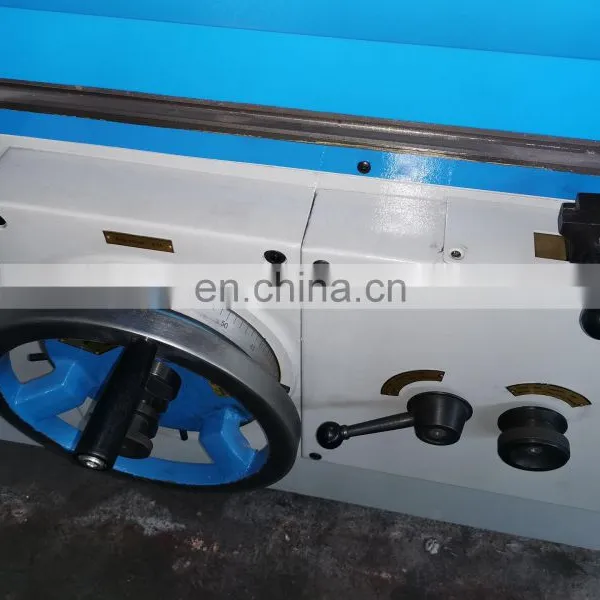

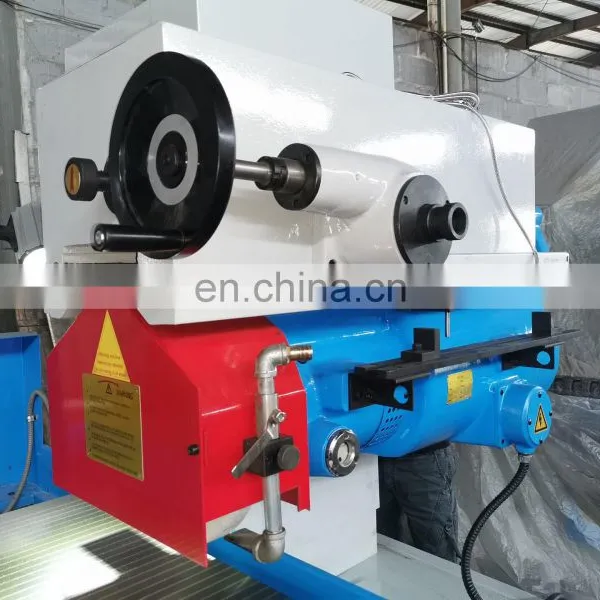

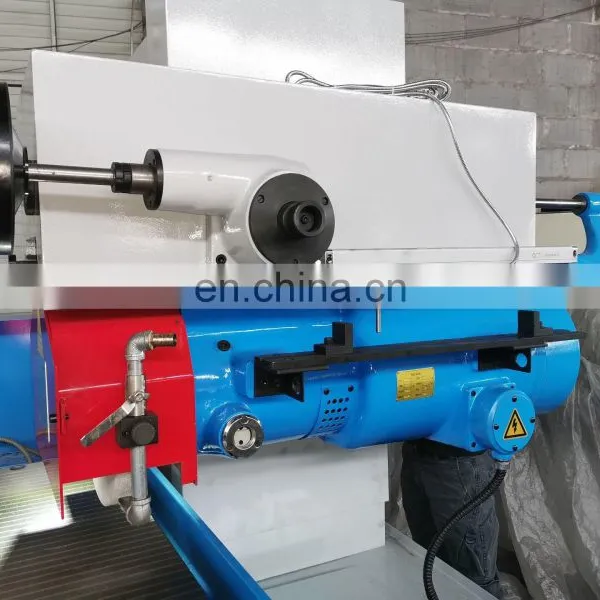

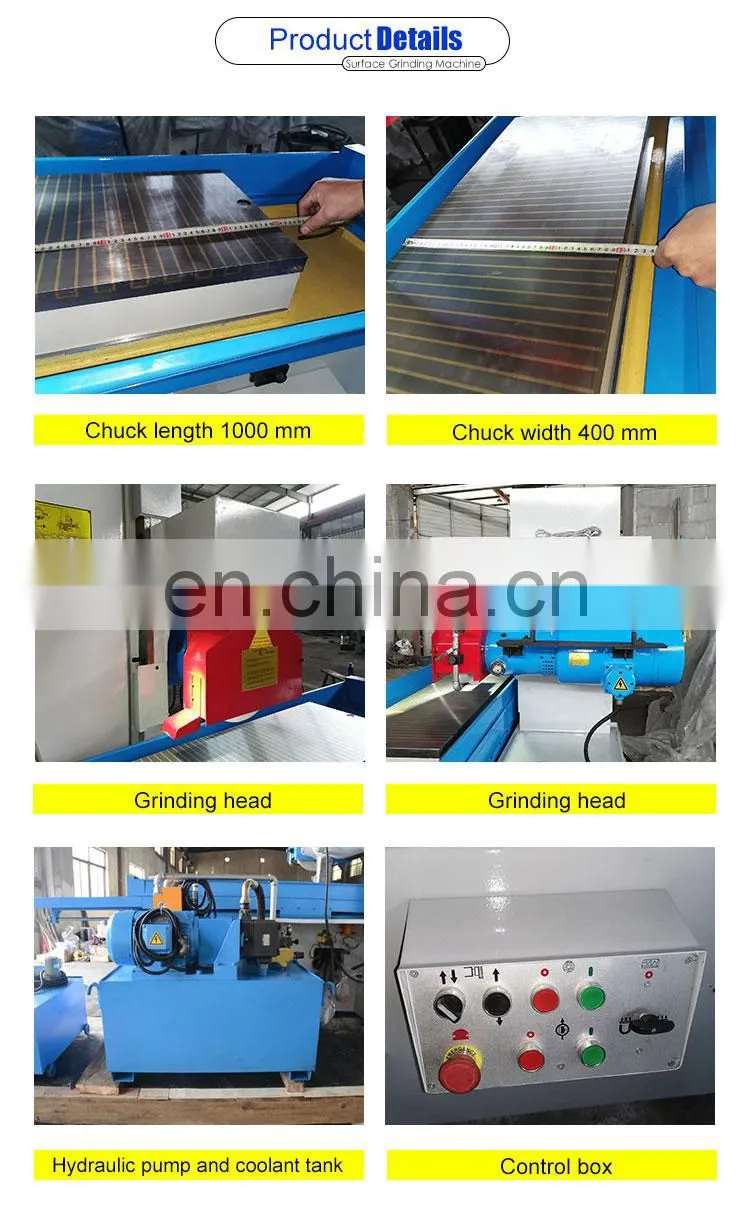

Machine Show:

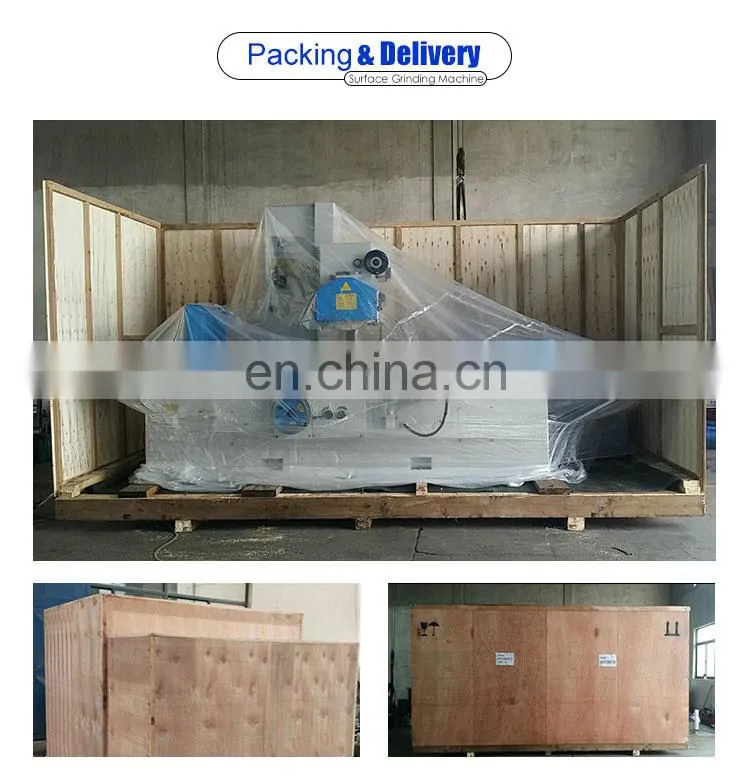

Package detail:
