Product Description

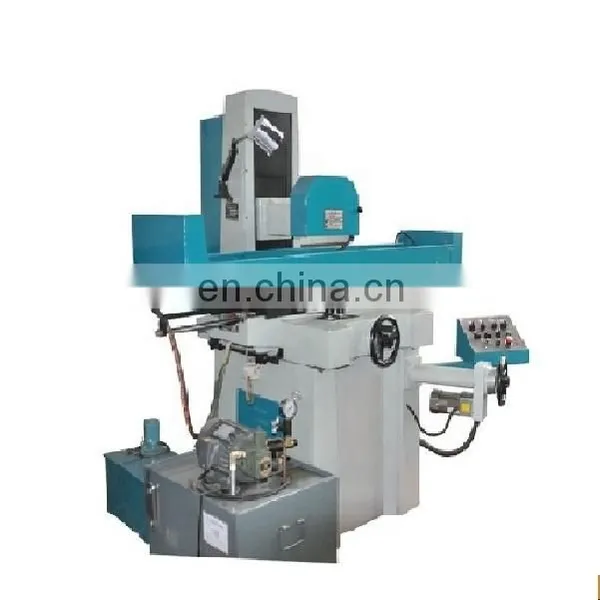

Surface Grinding Machine (MY1224)

**X-axis moving by hydraulic driven
**Y-axis built-in power feed.
**Z-axis moving by Rapid elevating motor
**Table Size: 600x300mm
**Table Travel: 630X320mm

Features:
1,Machine reasonable structure, good rigidity, good looks, easy to operate.
2.Table movement in longitudinal is hydraulic transmission.
3.Spindle motor no vibration and low noise.
Main Technical Data
Specification
MY1022
MY1224
MY1230
Max workpiece to be ground
540x250mm
600x300mm
700x320mm
Max travel of table
560x260mm
640x320mm
640x370mm
Table max cutting area
540x250mm
640x320mm
760x370mm
T-slot (number width)
1x14
1x14mm
1x14mm
Distance from table to spindle center
450mm
490mm
540mm
Wheel size (dia width bore)
200x20x31.75
250x25.4x76.2mm
335x40x127mm
Spindle speed
2850r/m
1440r/m
1440r/m
Table longitudinal (left and right) speed
3-20m/min
3-20/min
5-25/min
Table horizontal
Continuous (variable speed)
150mm/min
150mm/min
150mm/min
(before and after)
Intermittent (stepless)
0-5
0-5
0-5
the amount of feed
The handlewheel rotates
450mm
4mm
4mm
Hand wheel each grid
0.02mm
0.02mm
0.02mm
Vertical (up and down)
The handlewheel rotates
2
2mm
2mm
feed wheel feed
Hand wheel each grid
0.01mm
0.01mm
0.01mm
Spindle motor
1.5KW
4kw
4kw
Cooling motor
40W
40w
4kw
Hydraulic motor
1.5KW
1.5kw
1.5kw
Working pressure
3Mpa
3mpa
3mpa
Oil tank capacity
80L
80L
80L
Max capacity
18L/min
18L/min
18L/min
The mechanical surface of the base of parallelism
300/0.004mm
300/0.004mm
300/0.004mm
Surface roughness
Ra0.32
Ra0.32um
Ra0.32um
N.W.
1.25T
1.5T
2.1T
G.W.
1.35T
1.65T
2.35T
Machine size
1680x1220x1720mm
1960x1630x1870mm
25600x2430x1920mm
Detailed Images
