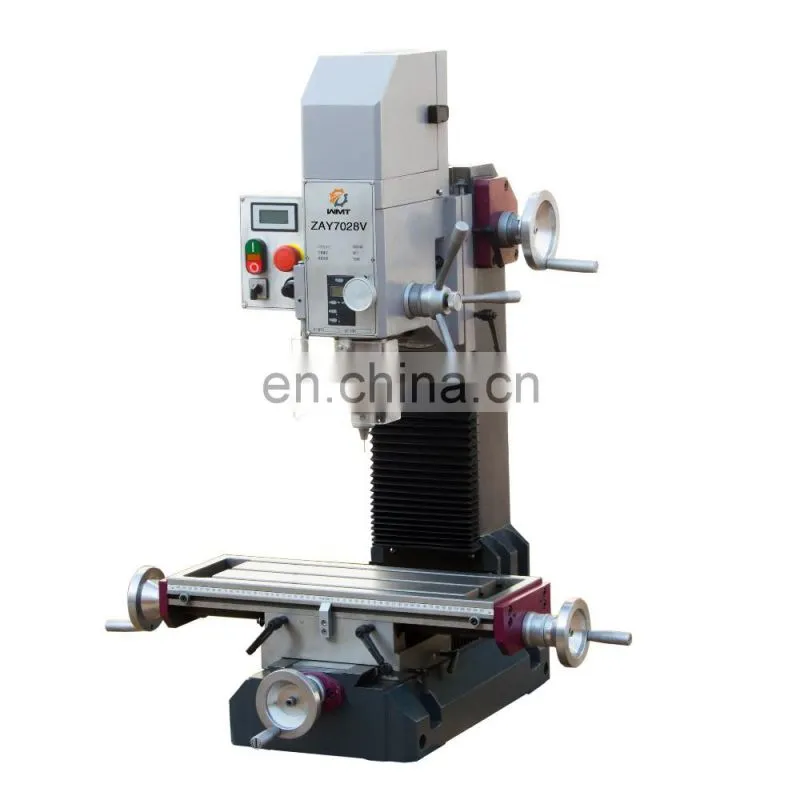

ZAY7028V Brushless Motor Drilling Milling Machine With Variable Speed
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX32GV Variable Speed Drilling/Milling Machine for Metal WorkingNegotiableMOQ: 1 -
ZAY7045V/1 Variable Speed Gear Drilling Machine With Spindle Auto-feedingNegotiableMOQ: 1
-
ZAY7045FG/1 Mini Milling and Drilling Machine With Spindle Auto-feedingNegotiableMOQ: 1
-
ZAY7045FG/1 Milling Machine With Spindle Auto-feedingNegotiableMOQ: 1
-
Z5045/1 Auto-feeding Vertical Drilling Machine With CE StandardNegotiableMOQ: 1
Product Description
1.Varibale speed
2.Brushless motor
3.Belt Drive
4.Thickened base
5.Reserved interface for updated to CNC milling machine
Specification |
ZAY7028V(Belt Drive) |
Drilling capacity. |
28mm |
End milling capacity |
20mm |
Face milling capacity |
75mm |
Tapping capacity |
M16 |
Spindle travel |
70mm |
Distance from spindle to column |
212mm |
Distance from spindle to table |
50~340mm |
Taper of spindle |
MT3 |
Spindle speed |
Varier Stepless,75~1250rpm(L), 150~2500rpm(H) |
Table size |
540x180mm |
T-slots size |
12mm |
Cross Table Travel |
200mm |
Longitudinal Table Travel |
325mm |
Headstock Travel |
290mm |
Motor |
1100W, DC Brushless |
Packing Demension |
750x710x1000mm |
Weight(N/G) |
180/210KG |
Capacity/20" Contain |
48PCS |

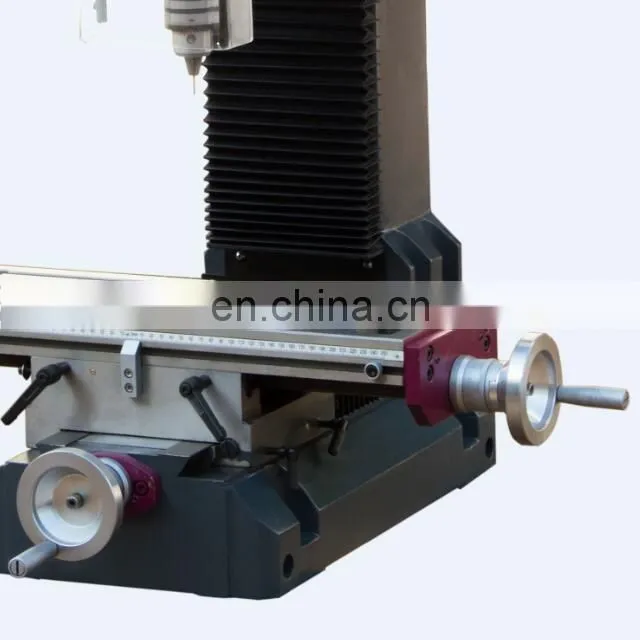

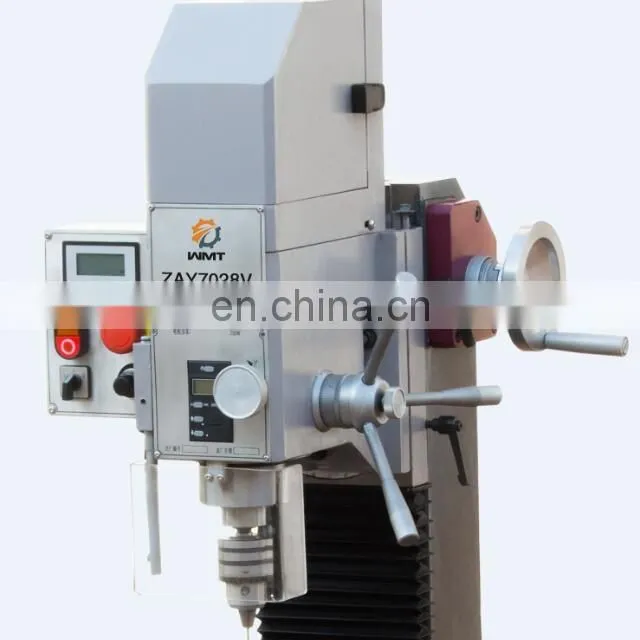

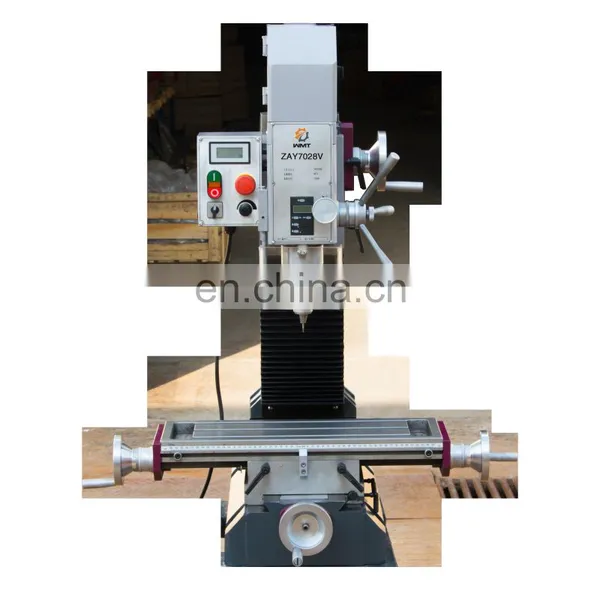

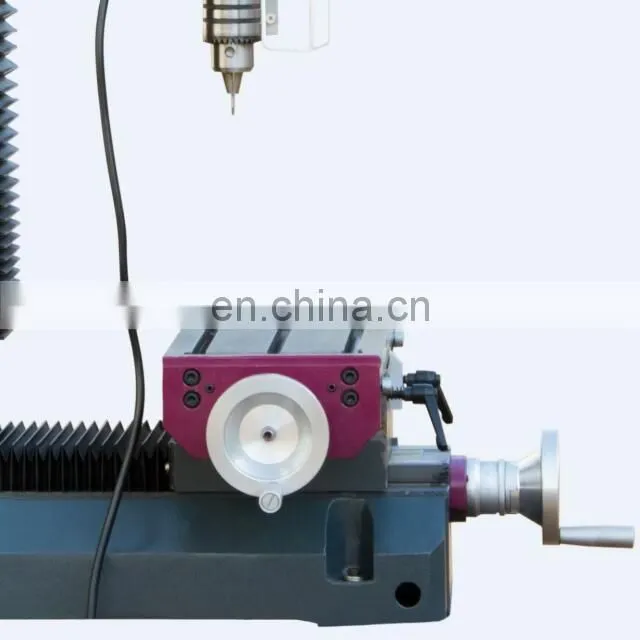

Products Show
Packing Details : Plywood wooden box
Delivery Details : 25-45 days after order confirmed.
