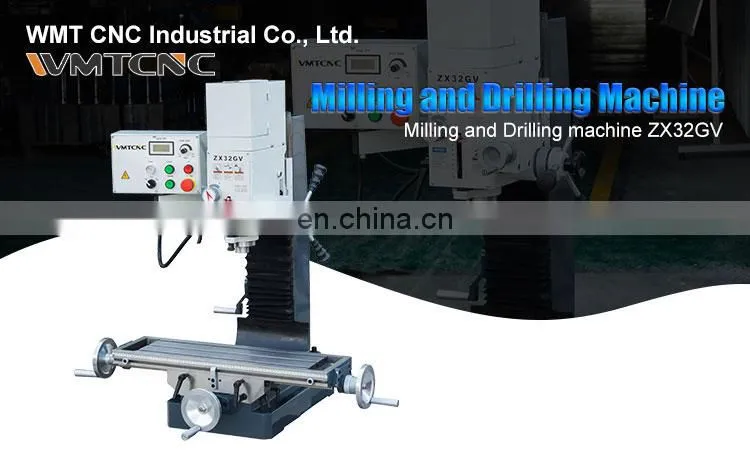

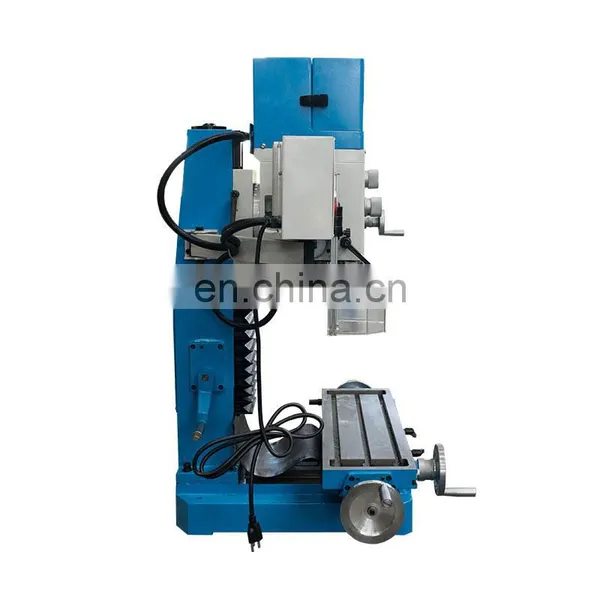

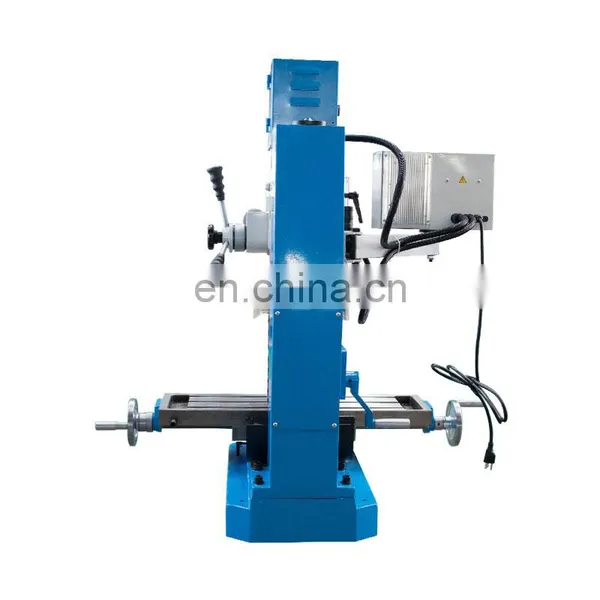

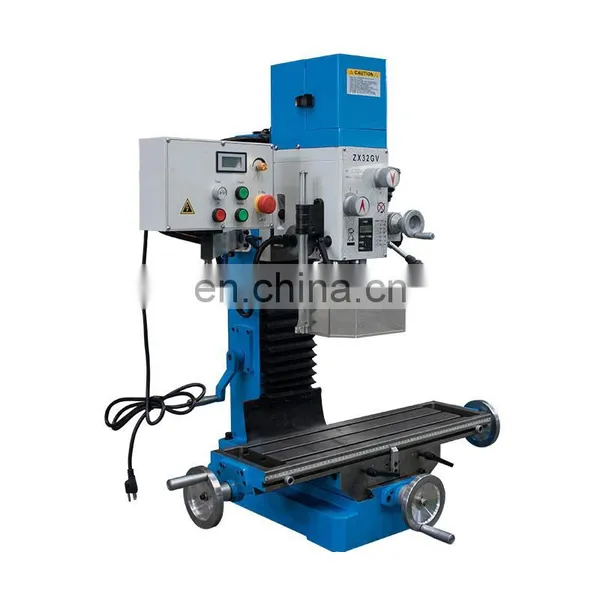

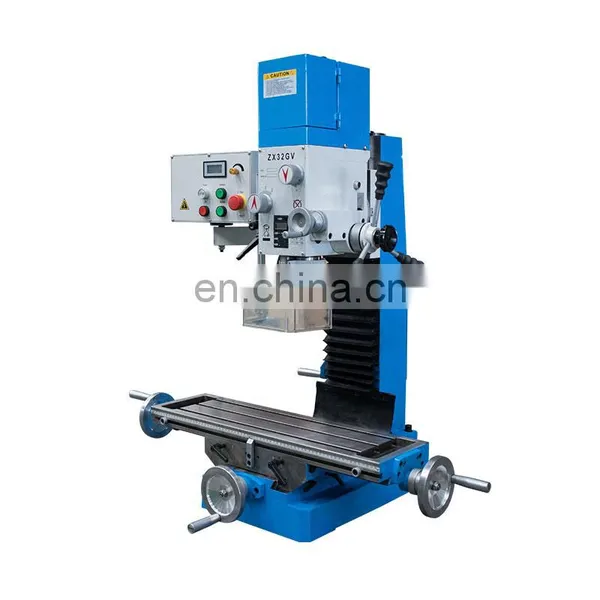

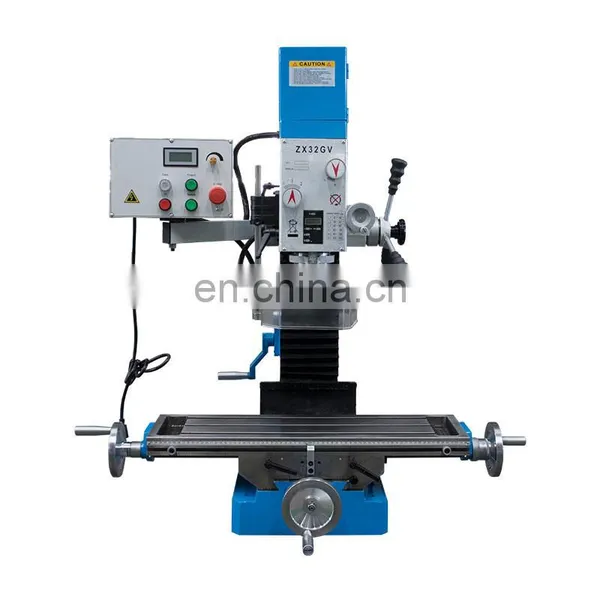

ZX32GV Variable Speed Drilling/Milling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7045V/1 Variable Speed Gear Drilling Machine With Spindle Auto-feedingNegotiableMOQ: 1 -
ZAY7045FG/1 Mini Milling and Drilling Machine With Spindle Auto-feedingNegotiableMOQ: 1
-
ZAY7045FG/1 Milling Machine With Spindle Auto-feedingNegotiableMOQ: 1
-
Z5045/1 Auto-feeding Vertical Drilling Machine With CE StandardNegotiableMOQ: 1
-
ZAY7025VL Brushless Motor Drilling Machine With Larger Worktable SizeNegotiableMOQ: 1

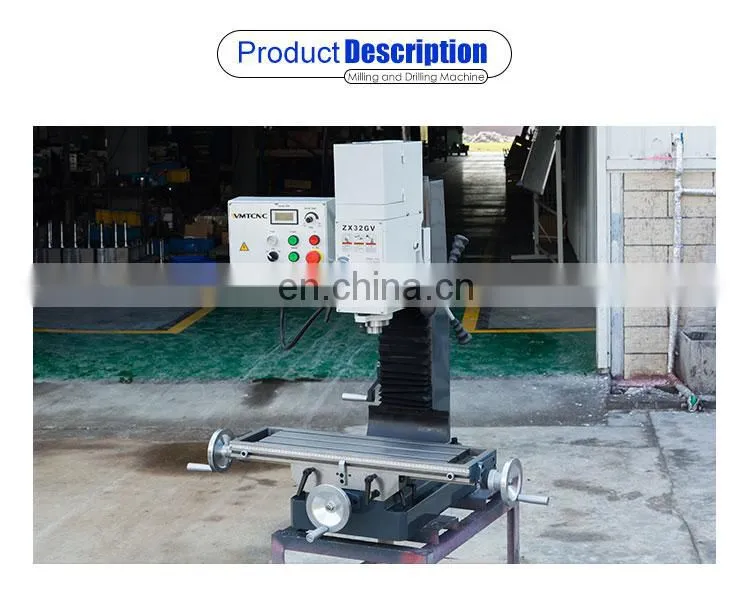

Variable Speed ZX32GV Drilling and Milling
High precision grinding all steel spindle.
High Strength with square column.
Good strength gear grinding,low noise.
Head-stock tilts left and right.
Wide electrical box, easy operation.
High precision manual feeder.
Depth ruler, easy operation and read.
Specification |
ZX32G |
ZX32GV |
Max drilling capacity |
32mm |
32mm |
Max tapping capacity |
16mm |
16mm |
Max face milling capacity |
63mm |
63mm |
Table size |
700×190mm |
700×190mm |
Spindle taper |
MT3/R8 |
MT3/R8 |
X-axis travel |
410mm |
410mm |
Y-axis travel |
205mm |
230mm |
Z-axis travel |
310mm |
380mm |
Spindle travel |
85mm |
75mm |
T-slot size |
12mm |
12mm |
Spindle speed range |
95-1420rpm |
95-1420rpm |
Headstock tilt left and right |
90 degree |
90 degree |
Column size |
150×130×690mm |
150×130×690mm |
Base size |
550×340mm |
542×340mm |
Max. distance from spindle center to column |
203mm |
214mm |
Max. distance from spindle center to table |
336mm |
400mm |
Motor power |
750w |
750w |
N.W/G.W |
170/205kgs |
182/215kgs |
