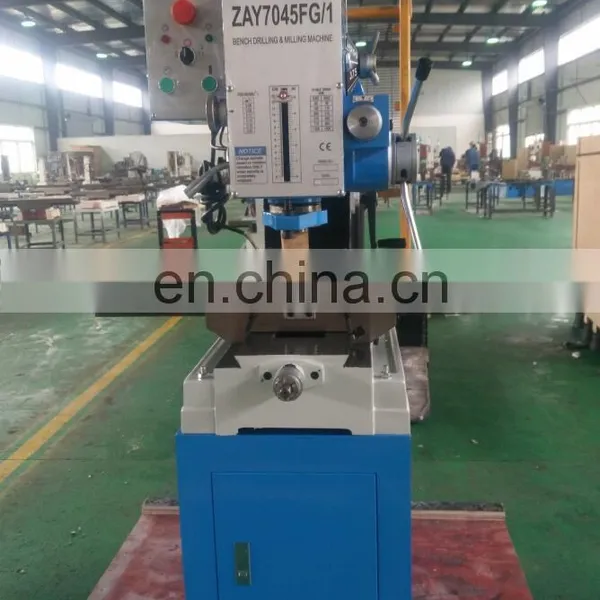

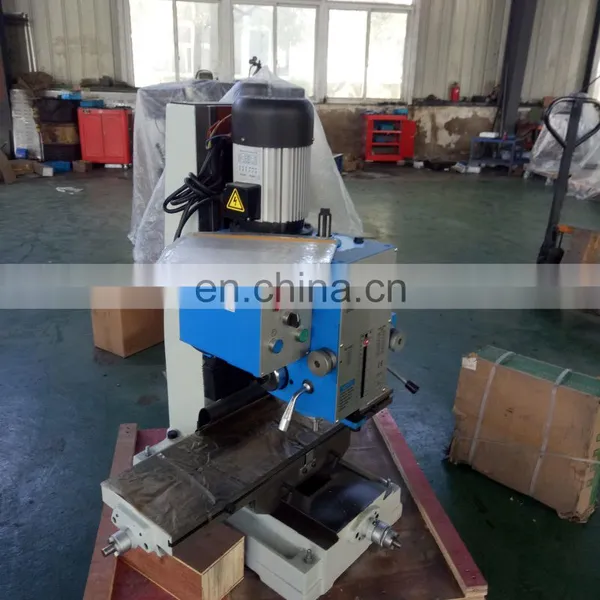

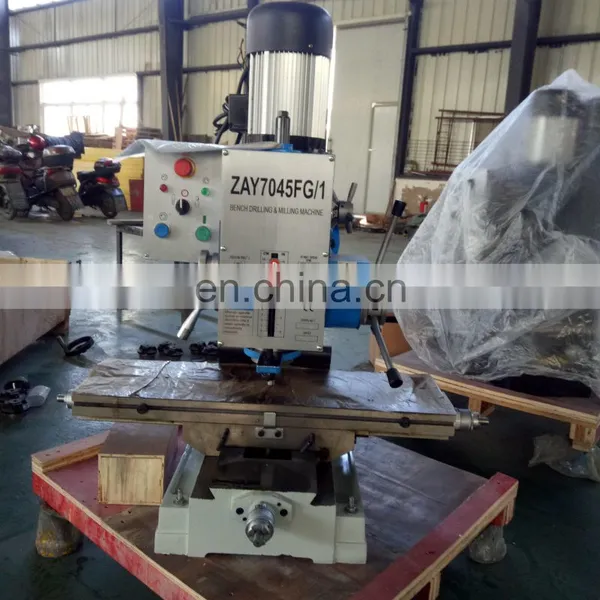

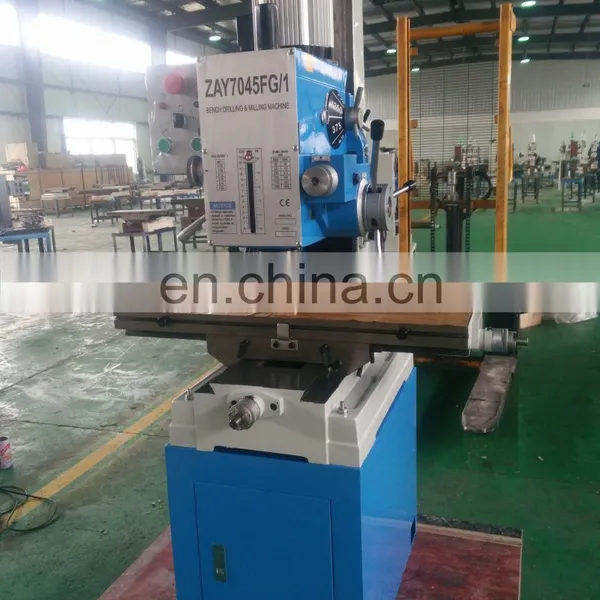

ZAY7045FG/1 Milling Machine With Spindle Auto-feeding
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Z5045/1 Auto-feeding Vertical Drilling Machine With CE StandardNegotiableMOQ: 1 -
ZAY7025VL Brushless Motor Drilling Machine With Larger Worktable SizeNegotiableMOQ: 1
-
ZAY7016V 16mm Drill Dia Mini Metal Wood Drilling Milling Machine With CENegotiableMOQ: 1
-
ZAY7035V VARIABLE SPEED MILL DRILL - Milling MachinesNegotiableMOQ: 1
-
LM1450A Universal Manual Metal Milling MachineNegotiableMOQ: 1
Drilling/Milling Machine ZAY7045FG/1
Spindle Auto-feed
Milling ,drilling, tapping,boring,reaming;
Head swivels ±90°verticaly; Spindle micro feed precision;
Adjustable gibs on table precision;
Accurate position ,strong rigidity , powerful cutting;
Gear-driven type and square column.
Specification |
ZAY7032FG/1 |
ZAY7040FG/1 |
ZAY7045FG/1 |
ZAY7045M |
|||
Drilling capacity |
Φ32mm |
Φ40mm |
Φ45mm |
Φ45mm |
|||
Face milling capacity |
Φ63mm |
Φ80mm |
Φ80mm |
Φ80mm |
|||
End milling capacity |
Φ20mm |
Φ32mm |
Φ32mm |
Φ32mm |
|||
Distance from spindle nose to table |
450mm |
450mm |
450mm |
420mm |
|||
Min.distance from spindle axis to column |
260mm |
||||||
Spindle travel |
130mm |
||||||
Spindle taper |
MT3 MT4 or R8 |
MT4 or R8 |
|||||
Auto-feeding Step of spindle |
6 steps |
||||||
Auto-feeding amount of spindle |
0.06-0.30mm/r |
||||||
Range of spindle speed 50Hz |
80-1250 r.p.m |
||||||
60Hz |
95-1500 r.p.m |
||||||
Swivel angle of headstock (vertical) |
±45° |
||||||
Table size |
800×240mm |
||||||
Forward and backward travel of table |
175mm |
||||||
Left and right travel of table |
500mm |
||||||
Motor Power |
1.5kw |
||||||
N.W/G.W |
320/370kgs |
323/373kgs |
325/375kgs |
||||
Packing size |
770×880×1160mm |
||||||
