3-axsi Tool Milling-machine XL8140
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XL6136CL Universal Milling Machine Price With CENegotiableMOQ: 1 -
Table Milling Machine XL6230 and XL6230C Universal Milling Machine Vertical Mill With CE StandardNegotiableMOQ: 1
-
XL6330A Universal Milling Machine Vertical Mill With CE StandardNegotiableMOQ: 1
-
XJ9512 Mini Milling and Drilling Machine for Hobby Usrs With High PrecisionNegotiableMOQ: 1
-
Small Drilling Milling Machine ZAY7020V Table Milling Machine Mini Drilling and Milling Machine With Various Speed FunctionNegotiableMOQ: 1
XL8140 Machine Features:
A, X/Y/Z ballscrew
B. X/Y/Z servo feeding motor
C. Machine main motor is inverter motor, Variable speed
D,Electrical type handwheel
E,CE standarad Schneider electrical part
XL8140 Technology Data:
specification |
Unit |
XL8140 |
||
Work space dimensions |
Mm |
800*400 |
||
Vertical table dimensions |
Mm |
1020*225 |
||
T-slots,work table |
Mm |
(6)14*63 |
||
T-slots,vertical table |
Mm |
(3)14*63 |
||
Table load capacity |
Kg |
200 |
||
travels |
Longitudinal(X) |
Mm |
500 |
|
Transverse(Y) |
Mm |
400 |
||
Vertical(Z) |
Mm |
400 |
||
Spindle axis-to-table surface distance |
Horizontal spindle |
Mm |
145-545 |
|
Vertical spindle |
Mm |
50-450 |
||
Speed range |
Rpm |
(2)40-2000 |
||
Spindle mount |
ISO40 |
|||
Feeds X Y Z axis |
Mm/min |
10-1000 |
||
Rapid feed |
Mm/min |
1200 |
||
Quill stroke |
Mm |
60 |
||
Main motor rating |
KW |
3.7 |
||
Feed motor rating |
N.M |
X:7.7 |
||
Y:7.7 |
||||
Z:10 |
||||
Dimensions (L*W*H) |
Mm |
1500*1700*1800 |
||
weight |
Kg |
1500 |
||
Standard accessories:
Standard Equipment |
specification |
Milling Arbors |
Φ-16,22,27,32mm |
Reducing sleeves |
MT1,2,3 |
Collet chuck with collets |
2,3,4,5,6,8,10,12mm |
Draw bar |
|
Coolant system |
|
Chip collector tray |
|
Oscillation elements |
|
Outer arbor support for horizontal milling |
|
Work lamp |
|
Operating instructions |
Warranty: One Year After You Receive Our Machines!
Service Hotline 24 Hours On Line!

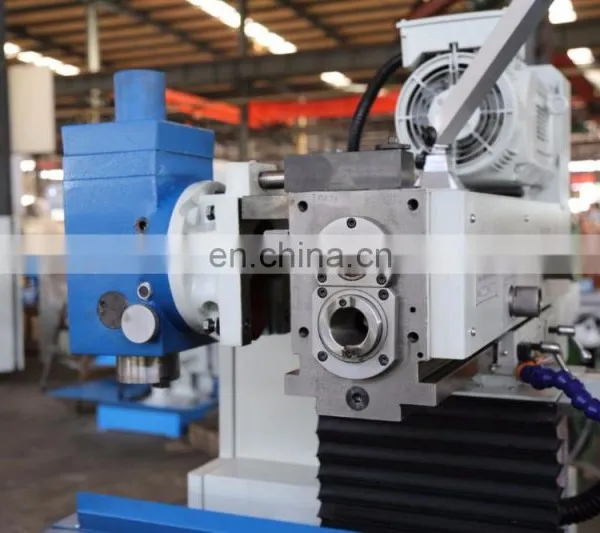

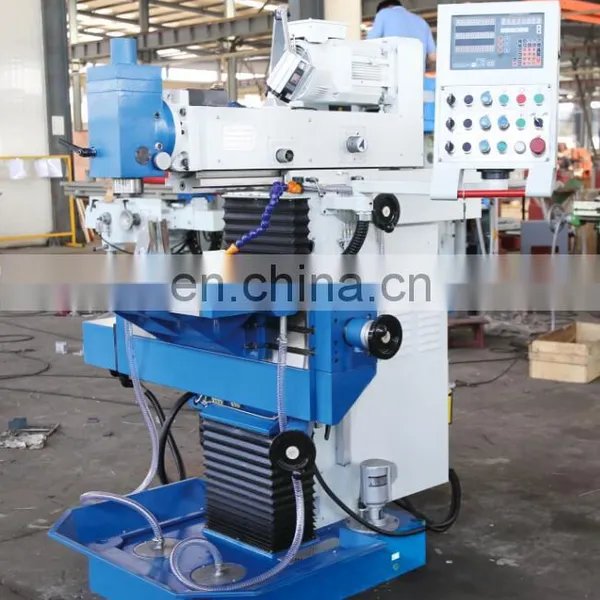

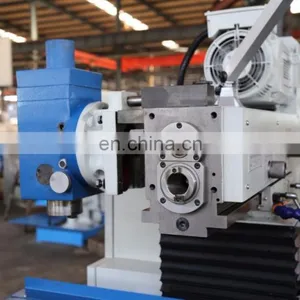

Machine Details:
