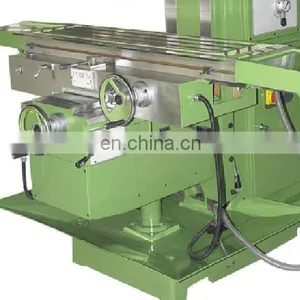

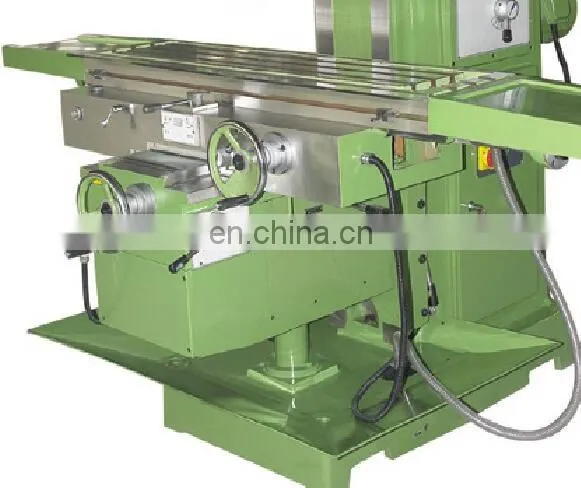

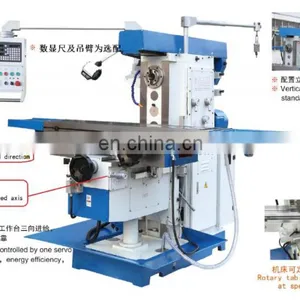

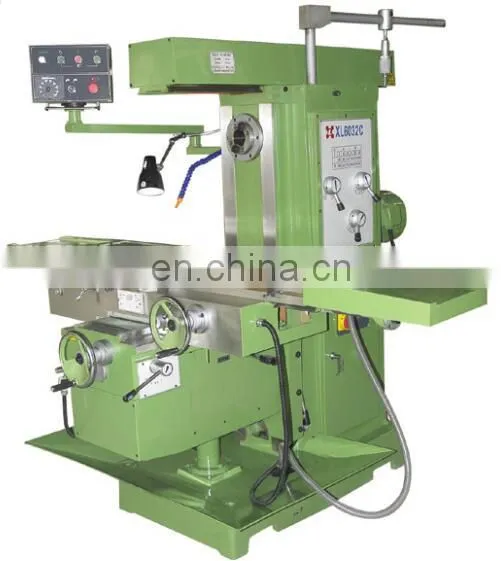

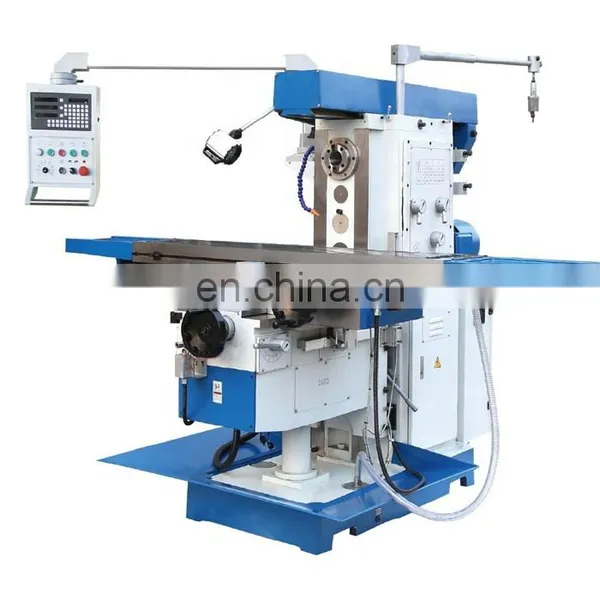

XL6136CL Universal Milling Machine Price With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Table Milling Machine XL6230 and XL6230C Universal Milling Machine Vertical Mill With CE StandardNegotiableMOQ: 1 -
XL6330A Universal Milling Machine Vertical Mill With CE StandardNegotiableMOQ: 1
-
XJ9512 Mini Milling and Drilling Machine for Hobby Usrs With High PrecisionNegotiableMOQ: 1
-
Small Drilling Milling Machine ZAY7020V Table Milling Machine Mini Drilling and Milling Machine With Various Speed FunctionNegotiableMOQ: 1
-
LM1450 Bed Type Knee Type Milling Machine With Good QualityNegotiableMOQ: 1
Features:
• Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
• Precision-ground guide ways with hardened surfaces for long-term accuracy and wear-resistance
• Large work area of 1600x 360 mm and up to 450 kg table load capacity
• Quiet, precision-made head stock gears with hardened and ground gears
• Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
• 5.5 kW main drive guarantees high torque
• Coolant system and chip tray are Included
Specification |
Unit |
XL6136CL |
Table size |
mm |
1600*360 |
Table Travel (X,Y,Z) |
mm |
1300 320 400mm |
Spindle taper |
--- |
7:24 ISO50 |
Rapid speed of table (X,Y,Z) |
mm/min |
1200 800 600 |
Table feed (X,Y,Z) |
mm/min |
8 steps X:30-750 Y:20-500 Z:15--375 |
T-slots(NO./Width/Pitch) |
mm |
3/18/80 |
Spindle speed range |
r/min |
12 steps 60-1800 |
Distance between spindle nose and table surface |
mm |
20-420 |
T-slots (NO.:/Width/pitch) |
3/18/80 |
|
Arm travel |
mm |
500 |
Distance between spindle axis and colomn guide way |
mm |
175 |
Main motor |
kw |
5.5 |
X,Y,Z to feed Ac servo motor torque |
N.m |
10 |
Overall size |
mm |
2520*2100*1870 |
Net weight |
kg |
2550 |
XL6136CL machine Packing List
Item |
Name |
Specification |
1 |
Vertical milling head (Not over 800rpm) |
1 |
2 |
Allen Wrench |
5 |
3 |
Milling vise |
160mm |
4 |
Allen Wrench |
10 |
5 |
Fixed Wrench |
27 × 30 |
6 |
Fixed Wrench |
21 × 24 |
7 |
Middle sleeve |
7:24; ISO50-MS4 |
8 |
Handle |
|
9 |
Milling Arbor |
7:24 Iso50 Φ27 |
10 |
Milling arbor |
7:24 Iso50 Φ32 |
11 |
Draw Bar |
M24 |
12 |
Nut |
M24 |
13 |
Carrier Ring |
24 |
14 |
Operation Manual |
|
15 |
Quality Certificate |
|
16 |
Packing List |
|
17 |
Ep1C Serial Ac Servo Driver Operation Manual |
You may find the accessories as you like:
3 axes DRO |
LED lamp |
Aluminum suspension arm |
Schneider electric |
Suspension arm for Vertical milling head |
