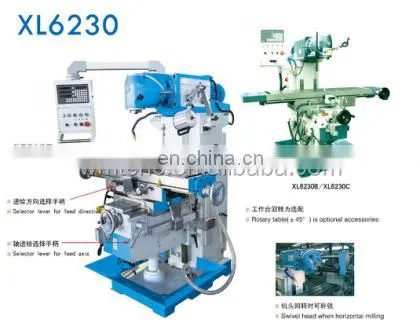

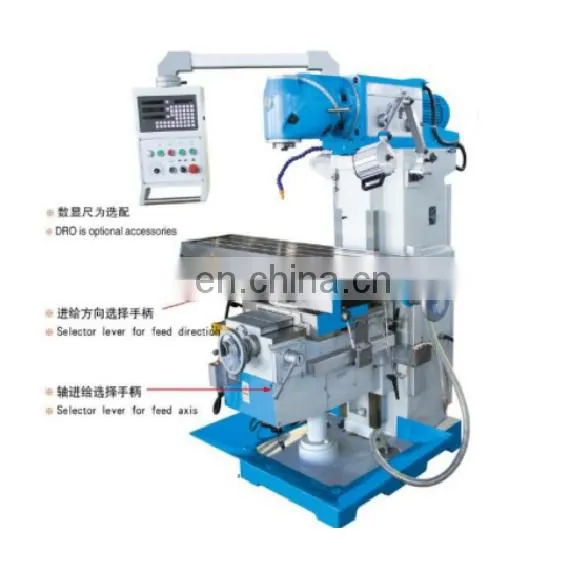

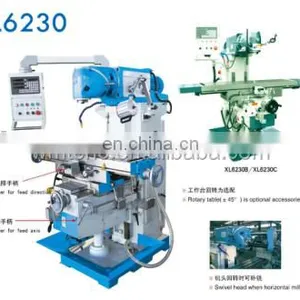

Table Milling Machine XL6230 and XL6230C Universal Milling Machine Vertical Mill With CE Standard
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
XL6330A Universal Milling Machine Vertical Mill With CE StandardNegotiableMOQ: 1 -
XJ9512 Mini Milling and Drilling Machine for Hobby Usrs With High PrecisionNegotiableMOQ: 1
-
Small Drilling Milling Machine ZAY7020V Table Milling Machine Mini Drilling and Milling Machine With Various Speed FunctionNegotiableMOQ: 1
-
LM1450 Bed Type Knee Type Milling Machine With Good QualityNegotiableMOQ: 1
-
ZAY7045V/1 Variable Speed Manual Milling Machine With Auto-feeding FunctionNegotiableMOQ: 1
Features:
A,Using one servo motor to control work table’s auto feed on XYZ axes, high torque, energy saving and stable
B,Milling head can swivel 360°, can realize horizontal processing; Full set grind gear guarantee low noise and long service life.
Descriptions |
unit |
WMT |
||
XL6230 |
XL6230C |
|||
Table size |
mm |
1270*300 |
1370*300 |
|
X/Y/Z travel |
mm |
720*280*400 |
1000*360*400 |
|
Max rotary angle of table |
° |
Optional±45° |
||
Max table weight |
Kg |
300 |
||
T-slots(NO./width/pitch) |
mm |
3*14*80 |
||
Spindle speed series and range |
rpm |
V 45-1660(11steps) |
||
distance between spindle nose and table surface |
Mm |
100-500 |
||
Spindle taper |
7:24 IS040, |
|||
table rapid speed(X/Y/Z) |
MM |
133,513,351,000 |
||
Table feed(X/Y/Z) |
mm |
X,Y:30-830 |
||
Z:23-625 |
||||
Main motor power |
KW |
3Kw |
||
Feed motor |
KW |
3 axes using a 10N.m servo motor, auto feed and change speeds variably |
||
(3 axes driven by one servo motor) |
||||
Dimensions |
mm |
1730*1760*1700 |
1830*1760*1700 |
|
Machine weight |
kg |
1550 |
1620 |
|
Standard accessories:
Name |
Model |
Quantity |
Elevating lift |
1 |
|
Draw bar |
M16 |
1 |
Double end spanner |
S22-24,S17-19,S32-36 |
1 |
Allen key |
5,6,10 |
1 |
Horizontal milling support |
1 |
|
QB13 Machine vice |
136mm |
1 |
Nut |
M16 |
2 |
Washer |
M16 |
2 |
Milling chuck |
ISO40 |
1 |
Quality Certificate |
1 |
|
Packing list |
1 |
|
Operation manual |
1 |
|
EP100 series servo driver manual |
1 |
You may find the optional accessorie as you like:
LED lamp |
Spindle guard |
CE Schneider Electric |
Aluminum Hang arm Cooling pump |
DRO |
