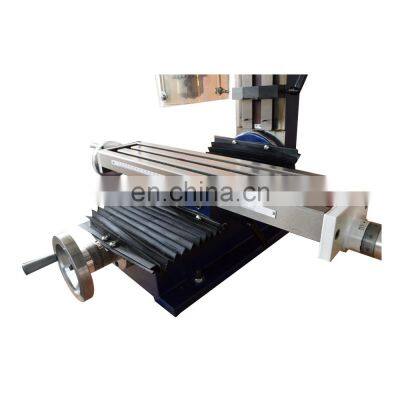

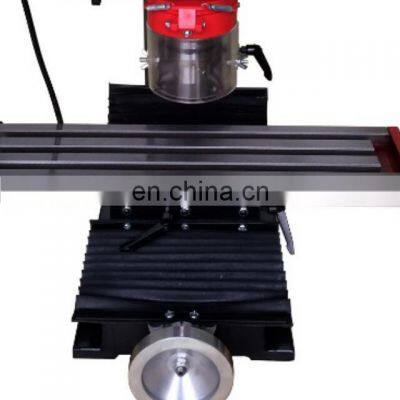

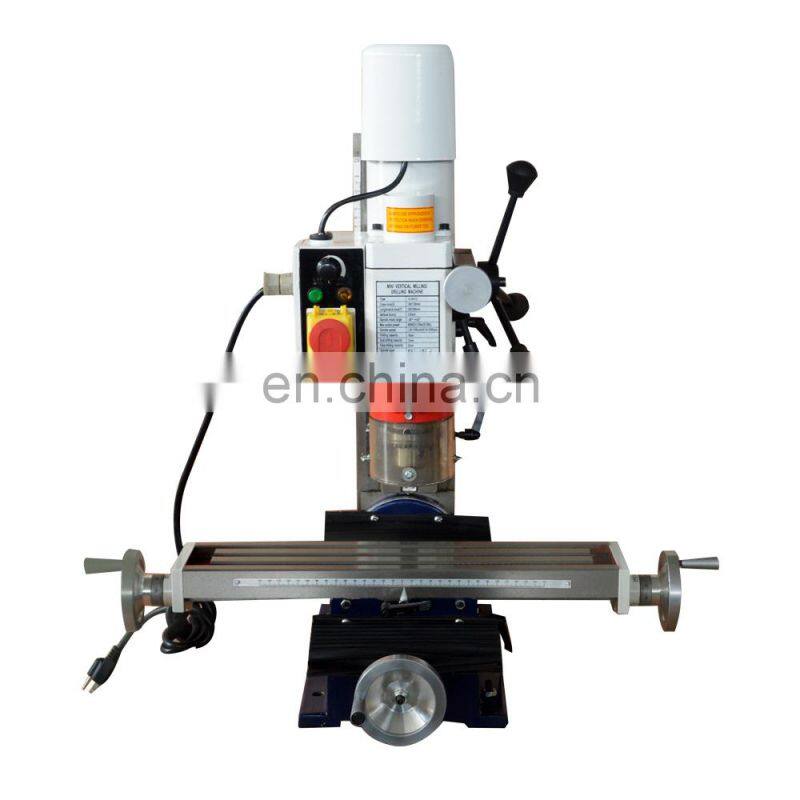

XJ9512 Mini Milling and Drilling Machine for Hobby Usrs With High Precision
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Drilling Milling Machine ZAY7020V Table Milling Machine Mini Drilling and Milling Machine With Various Speed FunctionNegotiableMOQ: 1 -
LM1450 Bed Type Knee Type Milling Machine With Good QualityNegotiableMOQ: 1
-
ZAY7045V/1 Variable Speed Manual Milling Machine With Auto-feeding FunctionNegotiableMOQ: 1
-
ZAY7045FG Milling Machine With CE StandardNegotiableMOQ: 1
-
ZAY7025FG China Factory Sales Gear-driven Type Drilling Milling MachineNegotiableMOQ: 1
Product Description
Main Features:
1. Variable speed;
2. Spindle micro feed;
3. DC motor;
4. Positive spindle lock;
5. Imported speed control unit.
Technical spec. | XJ9512 |
Max. Drilling capacity | 13mm |
Max face mill capacity | 16mm |
Max end mill capacity | 30mm |
Max. distance from spindle to table | 300mm |
Working table size | 460x110mm |
Swivel angle of headstock | +_45 degree |
Spindle taper | MT3/R8 |
Spindle speed | L:50-1100RPM;H:120-2500RPM |
X-axis travel | 300mm |
Y-axis travel | 130mm |
Z-axis travel | 220mm |
Motor power | 550W/brushless motor |
N.W./G.W. | 65/85KGS |
Packing size(LXWXH) | 570x550x850mm |
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
