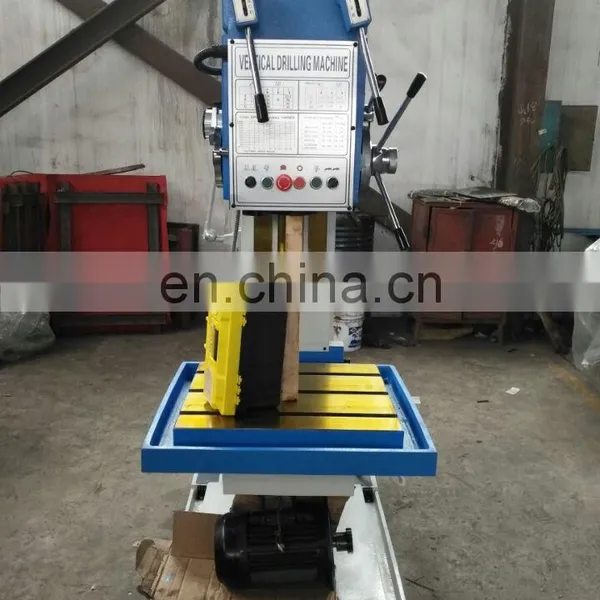

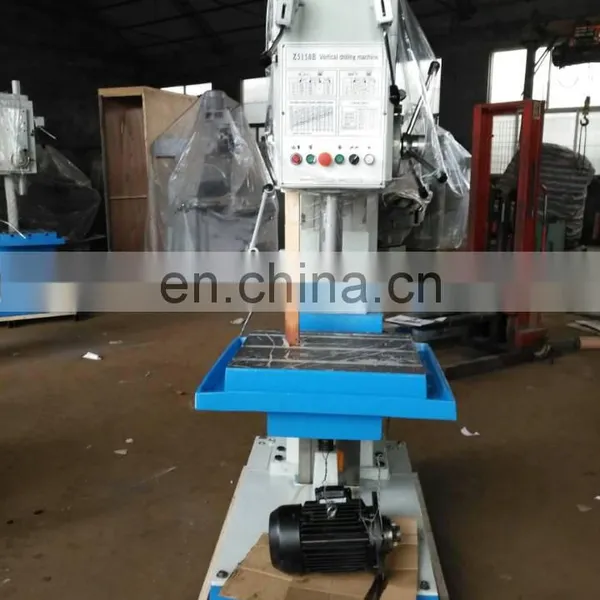

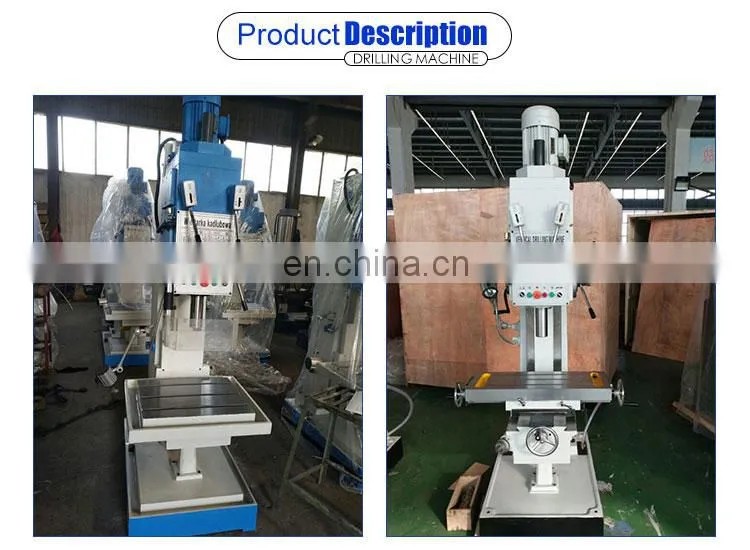

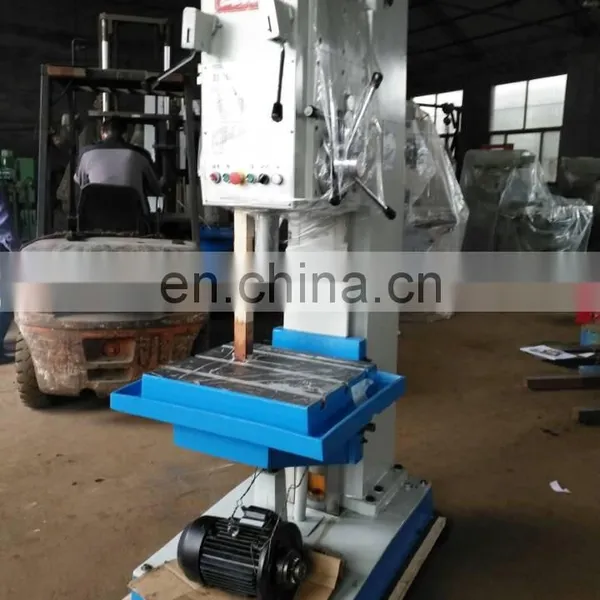

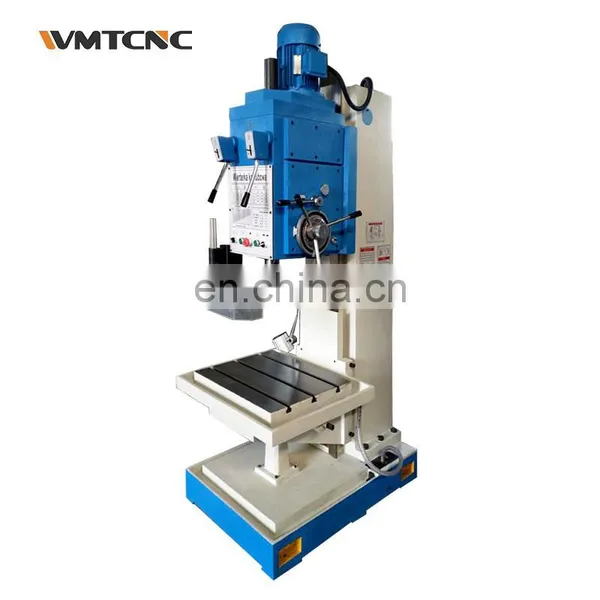

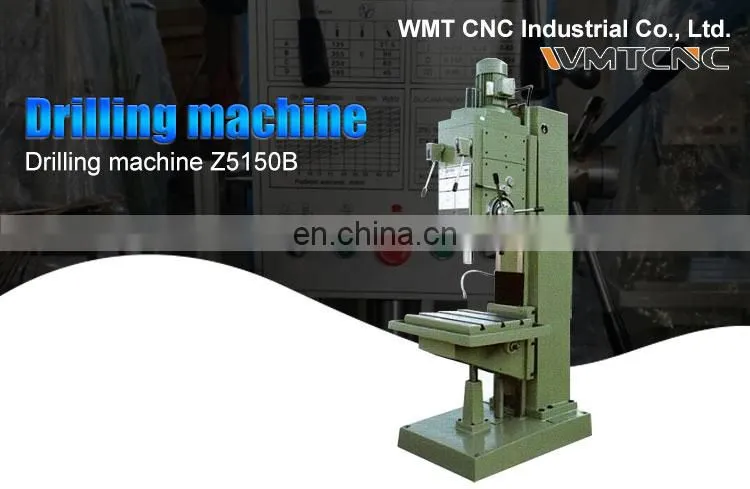

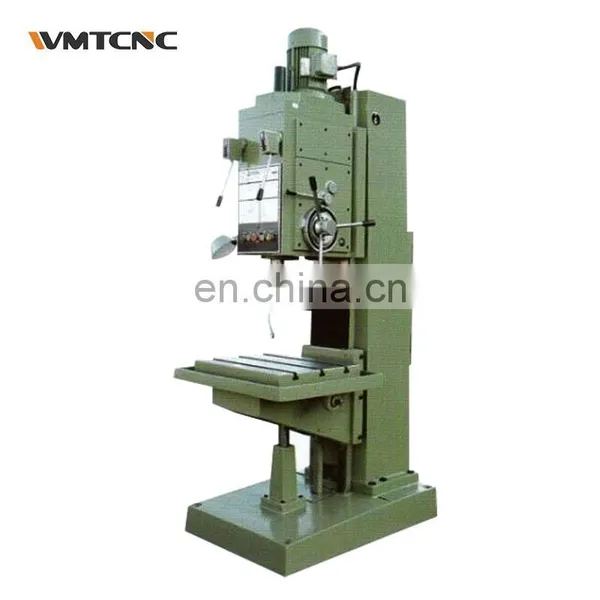

Help CenterVertical Drilling Machine Z5150B With CE
Related Products
-
XL6436CL Milling Machines Made in China With CE Standard for SaleNegotiableMOQ: 1 -
XL6432 Swivel Head Knee Milling MachineNegotiableMOQ: 1
-
China High Quality Universal Tool Cutting Milling Machine XL8132 With CE StandardNegotiableMOQ: 1
-
3-axsi Tool Milling-machine XL8140NegotiableMOQ: 1
-
XL6136CL Universal Milling Machine Price With CENegotiableMOQ: 1
|
Specification |
Z5150B |
|
Max drilling diameter |
50mm |
|
Spindle taper |
MT5 |
|
Max taping capacity |
M30X3 |
|
Stroke of spindle quill |
250mm |
|
Spindle box travel(manual) |
200mm |
|
Spindle speed step |
12 |
|
Spindle speed range |
31.5-1400r.p.m |
|
Spindle feed step |
9 |
|
Spindle feed range |
0.056-1.80mm/min |
|
Table size |
560x480mm |
|
Vertical travel |
300mm |
|
Max distance between spindle and table surface |
750mm |
|
Main motor power |
3kw |
|
Motor of cooling pumps |
40w |
|
Speed of cooling pumps |
25L/min |
|
T-slot NO./width/distance of table |
3/18/150 mm |
|
Overall size |
1090x910x2465mm |
|
Net weiaht |
1350kg |
