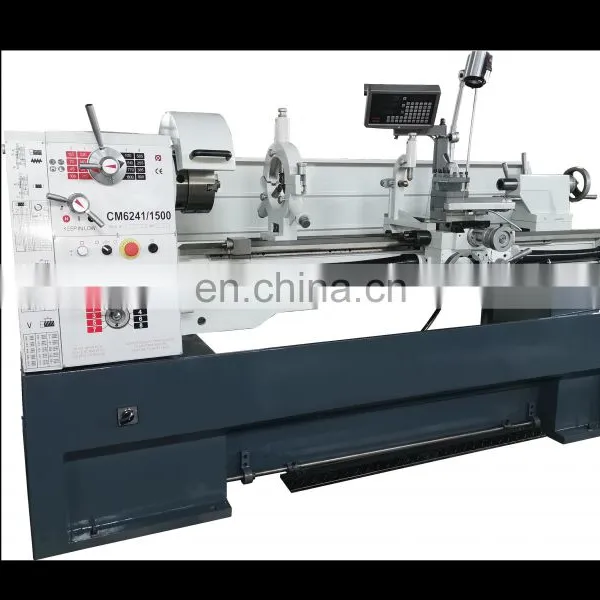

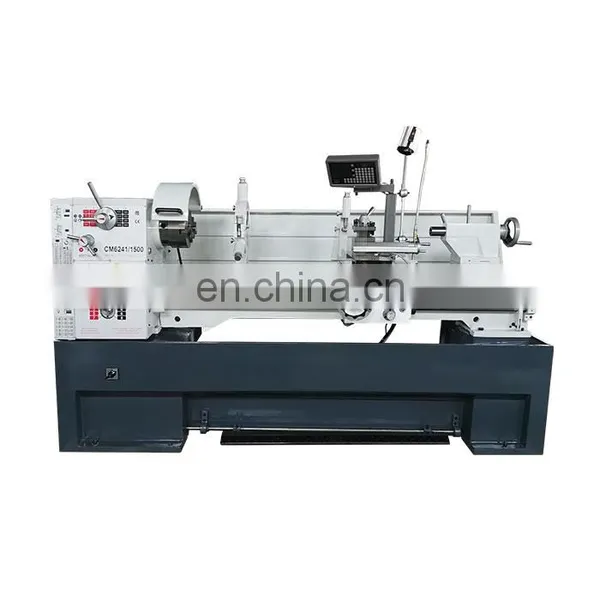

CM6241 Gap Bed Heavy Duty Engine Lathe Metal Manual Lathe With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Metal Lathe Machine BT1440G Manual Bench Lathe Machine PriceNegotiableMOQ: 1 -
C6280x3000 105 mm Spindle Bore Heavy Duty Engine Lathe for Metal Turning With CENegotiableMOQ: 1
-
C6251 High Precision Engine Manual Lathe Machines With CENegotiableMOQ: 1
-
CW61125Q High Quality Heavy Duty Engine Lathe MachineNegotiableMOQ: 1
-
Q1313 135mm Big Spindle Bore Pipe Threading Machine With CE ProtectionNegotiableMOQ: 1
Product Description
Machine Features of Engine Lathe:
1.Vertical and horizontal feed adopts interlocking mechanism and considerable safety design.
2. The spinlde bore is supported with precision roller bearings
3.Removable gap is provided for larger diameter work and easy operating gear box can be various feeds and thread cutting.
4.Strictly following national standards that could meet requirement of worldwide adapted CE and SGS certification.
5.Easy operating speed change levers
6.adopting full gear drive, double rod operation, no need to replace the hanging wheel can meet the needs of a variety of different kinds of knife and a variety of pitch. Not only for common processing work, like turning, end-face, taper or screws, but also on special occasions, such as, spherical, external & internal cylindrical surfaces and even multi-tool turning.
Specification |
CM6241×1000 /1500mm |
Swing over bed |
410mm |
Swing over cross slide |
255mm |
Swing in gap |
580mm |
Length of gap |
19mm |
Distance between centers |
1000mm /1500mm |
Center height |
205mm |
Width of bed |
250mm |
Spindle nose |
D1-6 |
Spindle bore |
52mm |
Taper of spindle bore |
MT6 |
Range of spindle speed |
16 changes 45-1800r/min |
Travel of compound rest |
102mm |
Max.travel of cross slide |
210mm |
Leadscrew pitch |
4T.P.I. |
Max.Section of tool |
20×20mm |
Longitudinal feeds range |
0.05-1.7mm/rev(0.002-0.067/rev) |
Cross feeds range |
0.025-0.85mm(0.001-0.0335/rev) |
Cross feeds range |
0.025-0.85mm(0.001-0.0336/rev) |
Inch threads range |
45kinds 2-72T.P.I |
Diametrical pitches range |
21kinds 8-44D.P. |
Module pitches range |
18kinds 0.3-3.5M.P. |
Dia.of tailstock sleeve |
50mm |
Travel of tailstock sleeve |
120mm |
Taper of tailstock sleeve |
MT4 |
Power of main motor |
2.2/3.3kw(optional 3.0/4.5kw) |
Power of coolant pump |
90w |
Overall dimension |
1940/2440×850×1300mm |
Packing size |
2060/2560×900×1640mm |
N.W/G.W |
1500/1750kgs 1550/1800kgs |

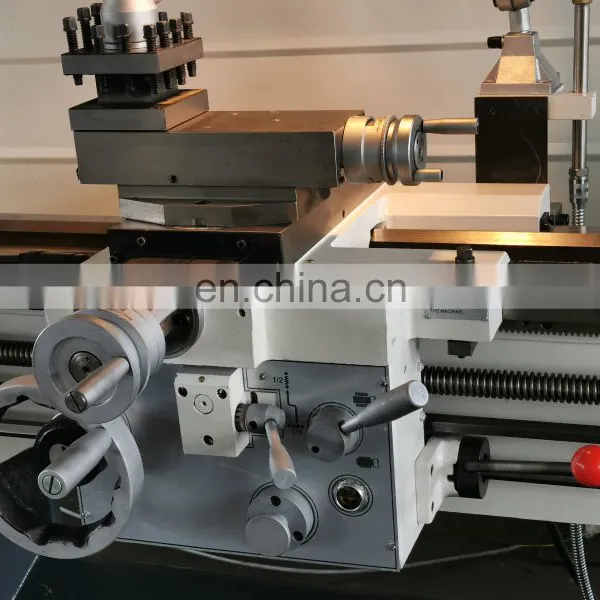

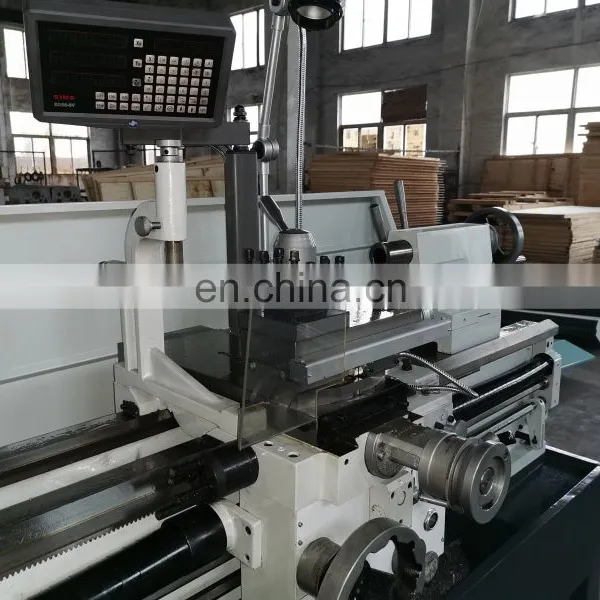

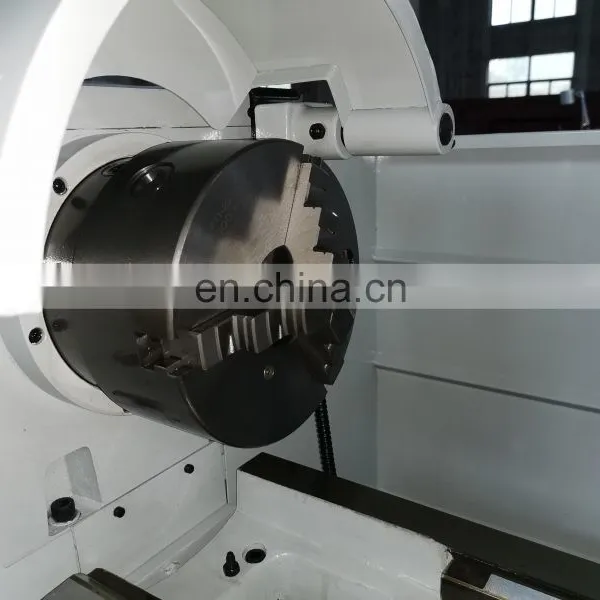

Detailed Images
Package&Delivery
Company profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
Engine lathe C6246
Engine lathe C6256
Engine lathe CM6241
