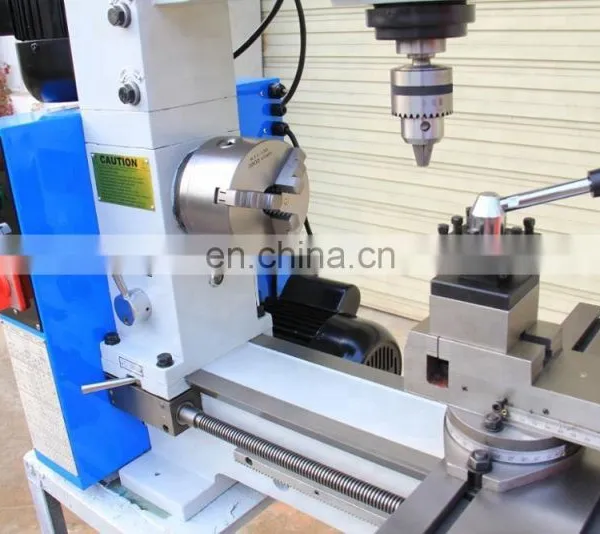

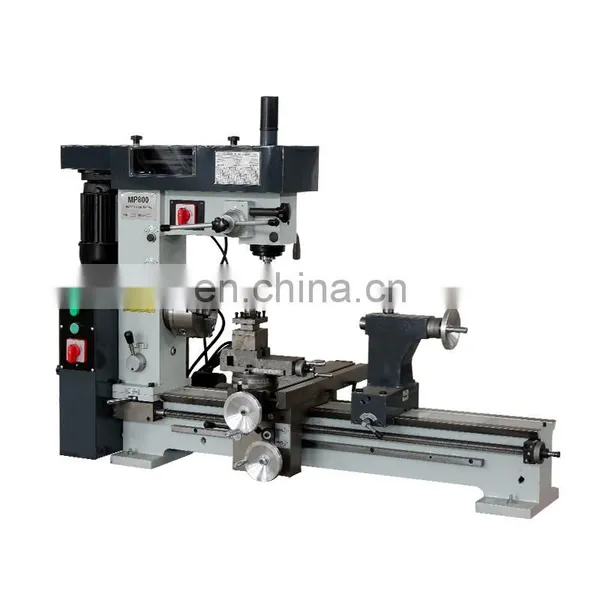

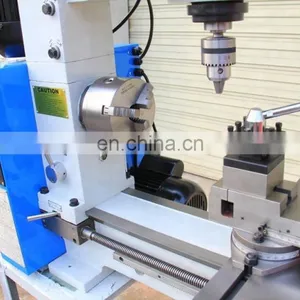

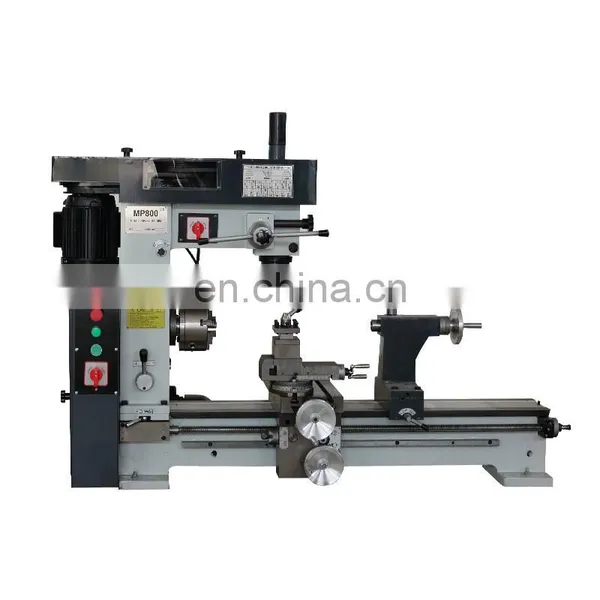

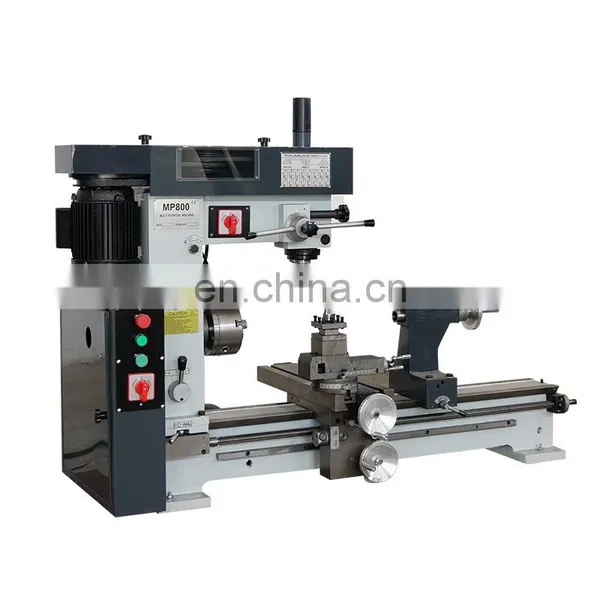

MP800 Multi-purpose Combined Mini Metal Lathe Machine for Metal Turning
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CM6241 Gap Bed Heavy Duty Engine Lathe Metal Manual Lathe With CENegotiableMOQ: 1 -
Mini Metal Lathe Machine BT1440G Manual Bench Lathe Machine PriceNegotiableMOQ: 1
-
C6280x3000 105 mm Spindle Bore Heavy Duty Engine Lathe for Metal Turning With CENegotiableMOQ: 1
-
C6251 High Precision Engine Manual Lathe Machines With CENegotiableMOQ: 1
-
CW61125Q High Quality Heavy Duty Engine Lathe MachineNegotiableMOQ: 1
Product Description
Main Features:
1. Multi-purpose lathe mill drill machine MP800.
2. Compact, versatile combination machine.
3. Adjustable height drill/mill head increase capacity.
4. Fine feed handle and clutch for precision milling.
5. Headstock provides two step of feeds.
6. Spindle is supported by high precision bearing.
7. T-slot cross slide.
8. Adjustable grids for the slideway.
9. Power longitudinal feed allows threading.
10. High precision chuck.
Specifications |
MP500/ MP800 |
Max. swing over bed |
420mm |
Max. distance between centers |
500mm/ 800mm |
Max. longitudinal travel |
400mm/740mm |
Max. cross travel |
200mm |
Taper of spindle |
MT4 |
Spindle bore |
φ28mm |
Step of spindle speed |
7 steps |
Range of spindle speed |
160-1360rpm |
Barrel travel |
70mm |
Barreltaper |
MT3 |
Metric thread range |
0.2-6mm |
Inch thread range |
4-120T.P.I |
Longitudinal range of automatic feeding |
0.05-0.35mm/ 0.002-0.014" |
Cross range of automatic feeding |
0.05-0.35mm/0.002-0.014" |
Max. drilling capacity |
φ22mm |
Worktable size (L×W) |
475×160mm |
Max. end mill |
φ28mm |
Max. face mill |
φ80mm |
Distance between spindle center and column |
285mm |
Distance between spindle and worktable |
306mm |
Headstock travel of up and down |
110mm |
Spindle taper |
MT3 |
Step of spindle speed |
16 steps |
Range of spindle speed |
120-3000r.p.m |
Swivel degree of headstock |
±360° |
Motor power |
0.75kw |
Packing size |
1130/1430×580×1100mm |
N. weight/G .weight |
245kg/280kgs 275/325kgs |
Machine Show
Machine Details
Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
