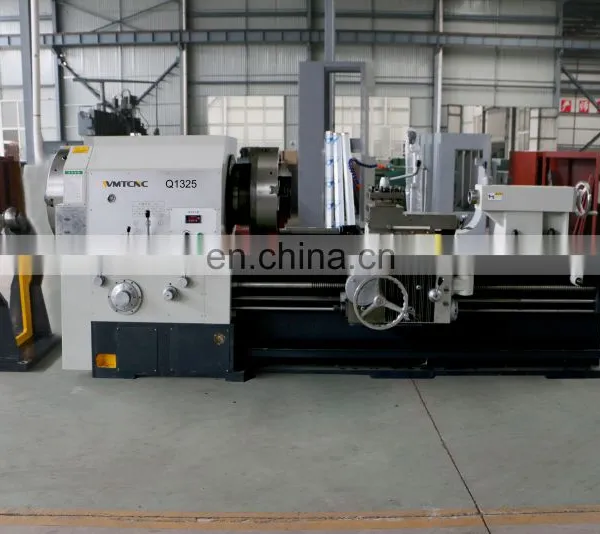

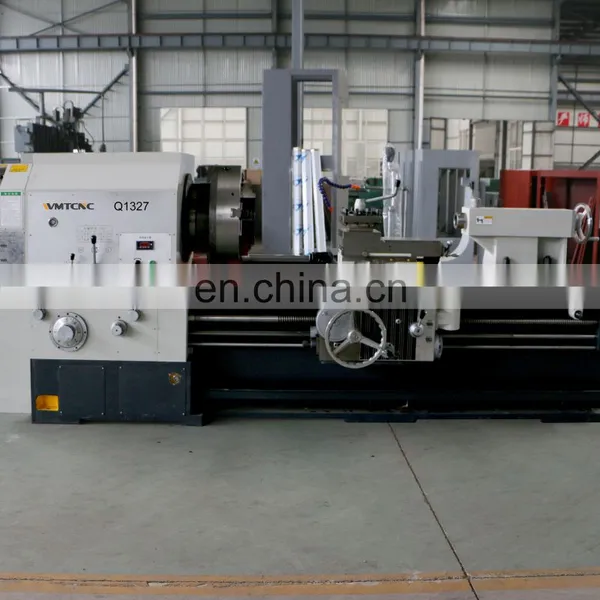

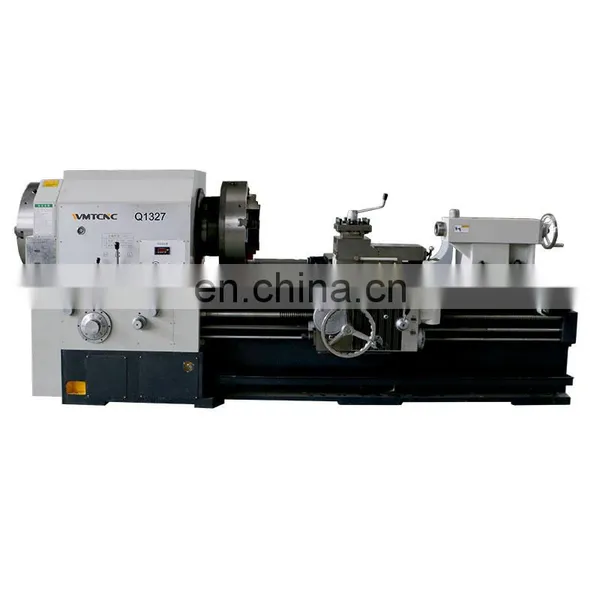

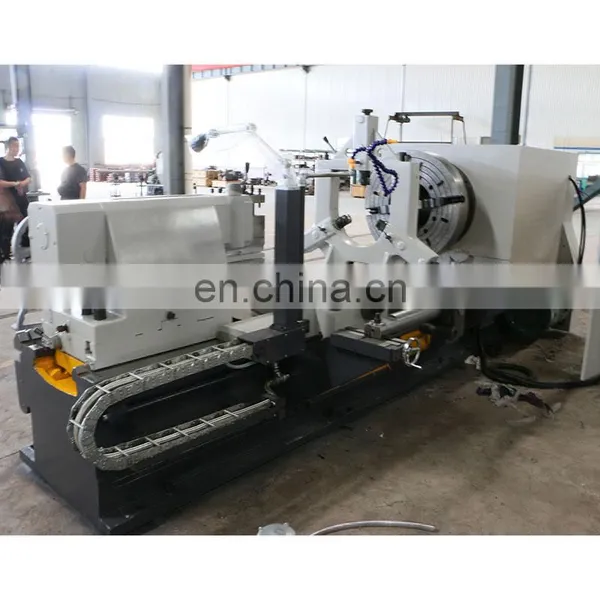

280mm big bore manual lathe pipe threading lathe machine Q1327 with CE stanfard
- 1000 per Month
- T/T Credit Card
- manual lathe machine C6128 high precision metal bench mini lathe machine price
- C0632A mini manual lathe machine price metal turning machine
- C0632B mini manual lathe machine price metal turning machine
- cjm280 mini lathe machine torno horizontal manual lathe turning
- torno CW6163 3m heavy duty manual lathe turning machine
- torno CW6163 heavy duty manual lathes for metal turning
Product Description
1. Big spindle bore and double chuck allows clamp and process big diameter pipes;
2. Integral machine bed adopts high strength iron to realize high rigidity and precision;
3. Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
4. Equipped with taper guide bar device this enables the machine to process taper threads.
This lathe machine is mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks, this machinery is equipped with taper guide bar device which enables this series to process taper thread.
Item | Q1325 | Q1327 | Q1330 | ||
Max dia.swing over bed | 800mm | ||||
Max dia.swing over cross slide | 480mm | ||||
Max.length of work-piece | 1500mm | ||||
Width of bed | 550mm | 750mm | |||
Spindle bore | 255mm | 280mm | 305mm | ||
Power of spindle motor | 11kw | 15kw | |||
Spindle speed | 12-642rpm VF2 steps | 20-300rpm VF2 steps | 20-300rpm VF2 steps | ||
Z axis feed grade/range | 26/0.07-1.33 | 40/0.1-3 | 40/0.1-3 | ||
X axis feed grade/range | 22/0.02-0.45 | 40/0.05-1.5 | 40/0.05-1.5 | ||
Carriage rapid traverse speed | 4000rpm | 3740rpm | |||
Cross slide rapid traverse speed | 2300rpm | 1870rpm | |||
Metric thread grade/range | 52/1-224 | 30/1-30 | 30/1-30 | ||
Inch thread grade/range | 40/2-28 | 27/28-1 | 27/28-1 | ||
Module thread grade/range | 53/0.5-120 | ||||
DP thread grade/range | 24/1-28 | ||||
Traverse of cross slide | 320mm | 520mm | |||
Max. Traverse of turret | 200mm | 300mm | |||
Tailstock quill travel | 250mm | 300mm | |||
Tailstock quill Dia./taper | Φ100/MT5# | Φ140/MT6# | |||
Chuck | Φ630 4-jaw manual | Φ630 4-jaw manual | |||
Overall dimensions(L*W*H) | 3657×1757×1740mm | 5000×2100×1600mm | 5000×2100×1600mm | ||
Net weight | 3.8t | 4.2t | 4.3t |
