CJM250 Parallel Lathe 500mm Mini Metal Lathe Machine Price With Auto Feeding
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Variable Speed 26mm CQ0625V Manual Mini Lathe Machine Price With CE for SaleNegotiableMOQ: 1 -
AT300 Multi Purpose Metal Lathe MachineNegotiableMOQ: 1
-
China CD6250C Metal Lathe Machine With 80mm Big Spindle BoreNegotiableMOQ: 1
-
3 in 1 Lathe Mill Drill Combo BV25-3 Mini Multi Purpose Lathe Machine With Certificate ApprovedNegotiableMOQ: 1
-
CQ6236F High Quality Metal Lathe Machine Cutting ToolsNegotiableMOQ: 1
Product Description
Bench Lathe Machine Main Features:
1. Precision ground and hardenedbed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 80-1600rpm.
6. Easy operating gear box has various feeds and thread cutting function.
7. With or without cabinet according to requirement.
Specifications |
CJM250 |
Max. turning diameter over bed |
Φ250mm(10") |
Max. length of work piece |
500mm(20") |
Max. swing diameter over tool post |
Φ100mm(4") |
Spindle bore |
Φ26mm(1") |
Spindle taper |
MT4 |
Max. lateral stroke over tool post |
130mm(5-1/8") |
Max. Longitudinal stroke over tool post |
60mm(2-3/8") |
Metric threads available |
15 |
Inch threads available |
9 |
Metric pitches |
0.25-2.5mm |
Inch pitches |
12-96 1/n |
Longitudinal-feed on spindle tool post |
0.03-1.50mm/r |
Cross-feed on spindle tool post |
0.015-0.137mm/r |
Max. travel of tailstock sleeve |
60mm(2-3/8") |
Tailstock sleeve taper |
MT3 |
Spindle speeds |
12 kinds |
Spindle speeds range |
80-1600r/min |
Motor |
750W/ 400V /50HZ (230V/ 50HZ) |
Net weight (without base) |
180KGS |
Packing size(L×W×H)(without stands) |
1160×640×580mm |

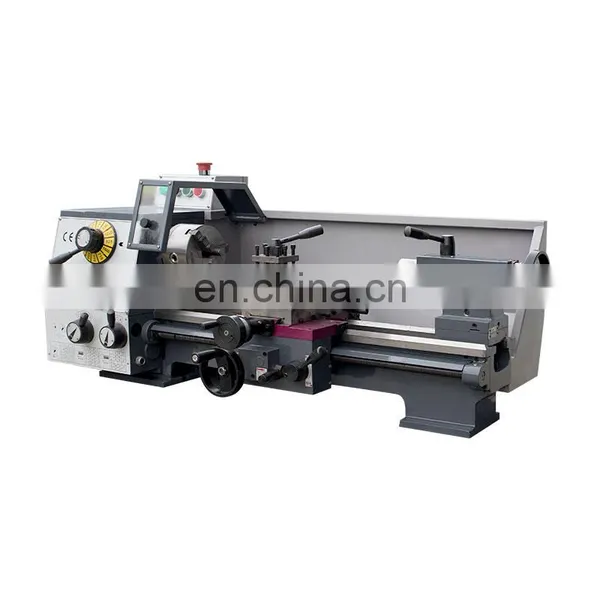

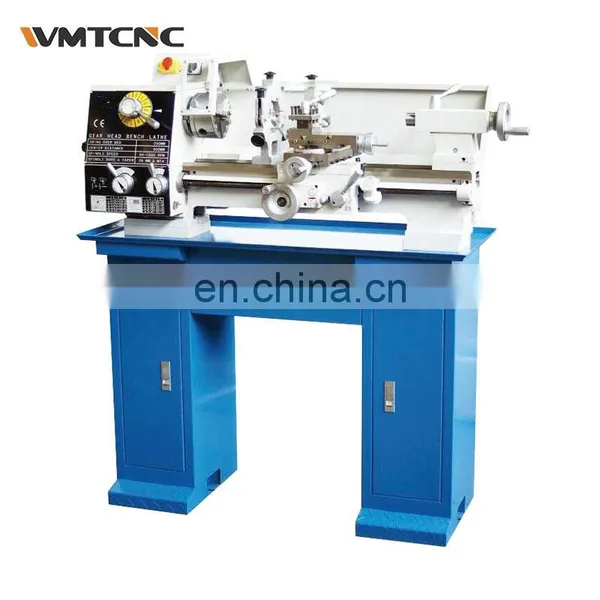

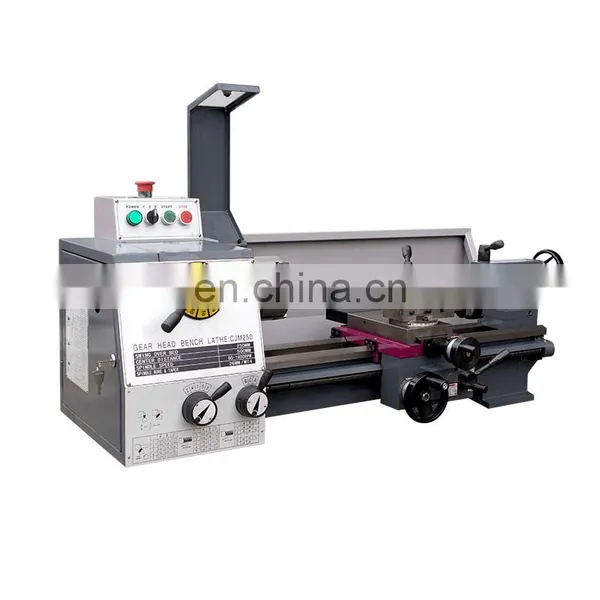

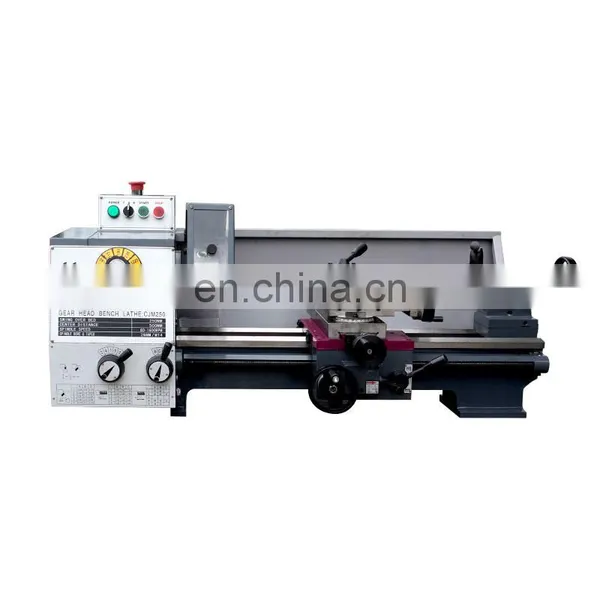

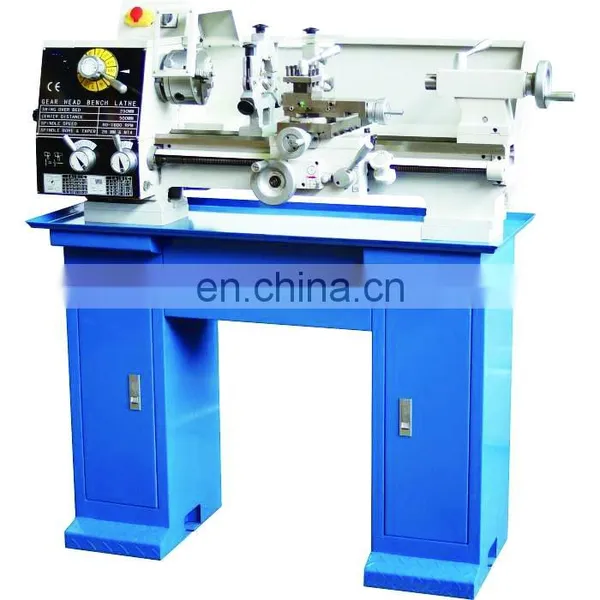

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
