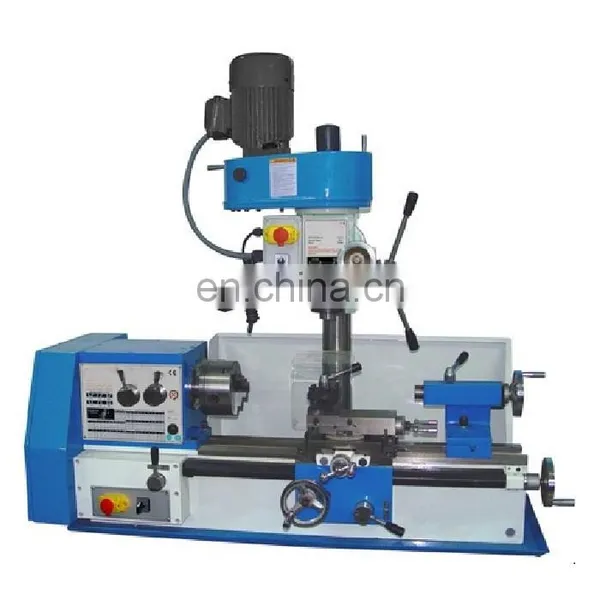

3 in 1 Lathe Mill Drill Combo BV25-3 Mini Multi Purpose Lathe Machine With Certificate Approved
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CQ6236F High Quality Metal Lathe Machine Cutting ToolsNegotiableMOQ: 1 -
CQ6232 Good Quality 38mm Bore Bench Machine With CENegotiableMOQ: 1
-
CW62100 Heavy Chinese Gap Lathe Machine Price With Lathe ChuckNegotiableMOQ: 1
-
Metal Lathe Mini D180V 7\" x 12\" Metal Lathes 180mm Metal Lathe for HobbyNegotiableMOQ: 1
-
CD6260B Engine Lathe Machine Price and Specification for Metal Cutting With CENegotiableMOQ: 1
Features:
V-way bed is precision ground.
Spindle is supported by precision tapered bearing.
Lathe headstock is constantly oiled during operating.
Belt driven mill head get quiet operation.
Mill head can be tilted ±90°.
Power longitudinal feed allows threading.
Adjustable gids for slideways.
Equipped with leadscrew cover and work table.
Change gears has large feed and threading ructions
Tailstock can be offset for turning tapers
Tolerance test certificate,test flow chart included.
Lathe |
||
Distance between centers |
450/700 mm(17-3/4"/27-1/2") |
|
Swing over bed |
250 mm(10") |
|
Taper of spindle bore |
MT4 |
|
Spindle bore |
27 mm(1") |
|
Range of spindle speeds |
115-1620 rpm |
|
Range of inch threads |
8-56 T.P.I |
|
Range of metric threads |
0.2-3.5 mm |
|
Travel of cross slide |
140 mm(5-1/2") |
|
Taper of tailstock quill |
MT3 |
|
Motor |
750W |
|
Mill & drill |
||
Taper of spindle bore |
MT3 |
|
Spindle stroke |
80 mm(3-1/8") |
|
Step of spindle speeds |
4 steps |
|
Range of spindle speeds |
400-1600 rpm |
|
Head stroke |
240 mm(9-1/2") |
|
Head tilt |
±90° |
|
Motor |
550W |
|
Packing size |
1510x670x920 mm |
|
Net weight |
245 kg |
|
You may find the accessories as you like:
Standard Accessories |
Optional Accessories |
3-jaw chuck |
4-jaw chuck (160mm) |
Splash guard |
Backplate |
Chip tray |
Follow rest |
Drawbar |
Steady rest |
Arbor |
Face plate |
Toolbox & tools |
Turning tools |
Stand |
