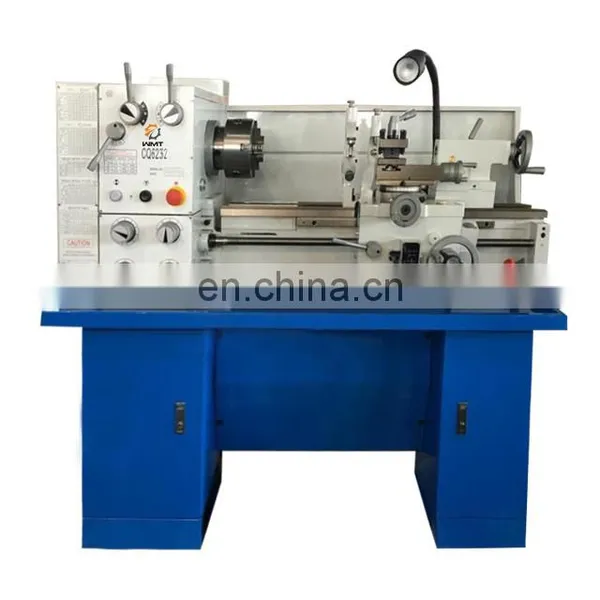

CQ6232 Good Quality 38mm Bore Bench Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CW62100 Heavy Chinese Gap Lathe Machine Price With Lathe ChuckNegotiableMOQ: 1 -
Metal Lathe Mini D180V 7\" x 12\" Metal Lathes 180mm Metal Lathe for HobbyNegotiableMOQ: 1
-
CD6260B Engine Lathe Machine Price and Specification for Metal Cutting With CENegotiableMOQ: 1
-
CY62100 Manual Metal Precision Gap Heavy Duty Lathe Machine With CENegotiableMOQ: 1
-
CQ6232B High Quality Bench Lathe,Manual Bench Lathe Machine With CENegotiableMOQ: 1
Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function
Main specification
Specifications |
CQ6230/CQ6232 |
Max.swing over bed |
Φ300mm(12")/320mm(12-4/5")) |
Max.swing over cross slide |
Φ180mm(7")/198mm(7-25/32") |
Max. swing over gap |
Φ430mm(17")/476mm(18-3/4") |
Distance between centers |
750/910/1000mm(30"/36"/40") |
Spindle bore |
Φ38mm(1-1/2") |
Taper of spindle bore |
MT5 |
Range of spindle speeds |
65-1400)rpm or 65-1810rpm |
Range of longitudinal feeds |
0.079-1.291mm/rev(0.003"-0.0508"/rev) |
Range of cross feeds |
0.017-0.276mm/rev(0.0007"-0.0108"/rev) |
Metric threads can be cut |
0.4-7mm |
Inch threads can be cut |
4-60 T.P.I. |
Max. travel of tail stock quill |
100mm(4") |
Taper of tail stock |
MT3 |
Motor power |
1.1kw/1.5kw |
Gross weight |
550/590/670kg |
Net weight |
500/540/620kg |
Packing size |
1480/1680/1940×750×1400mm |

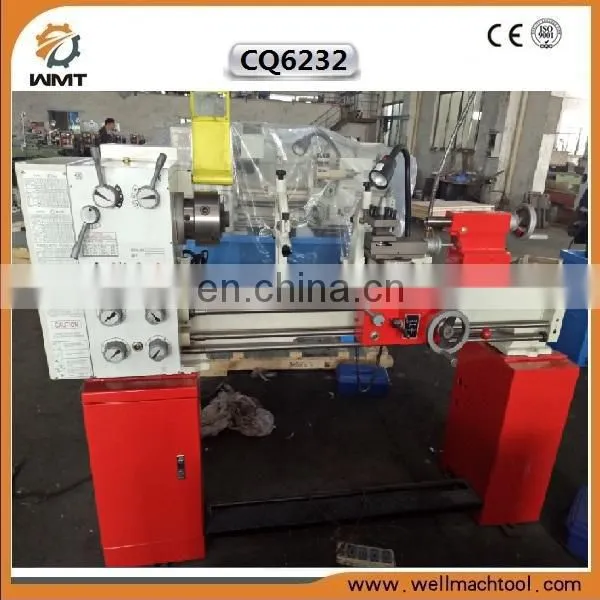

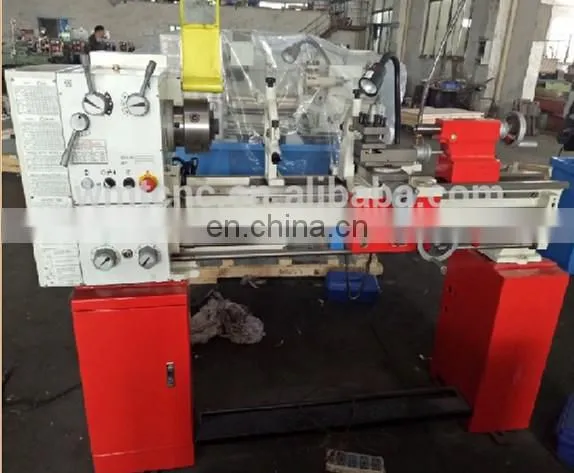

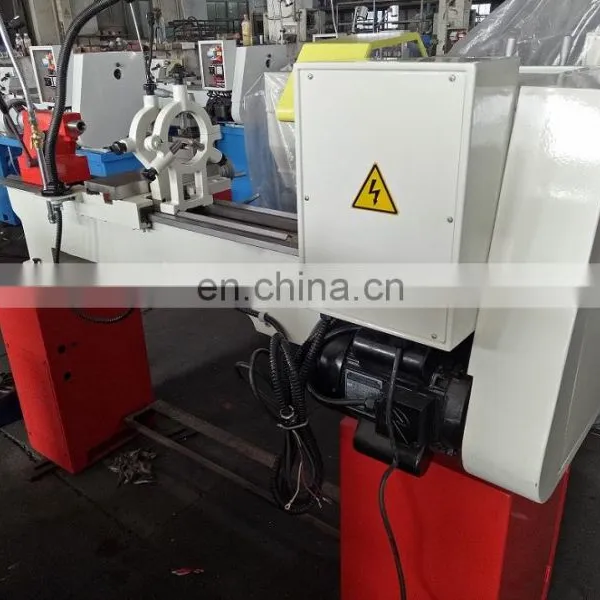

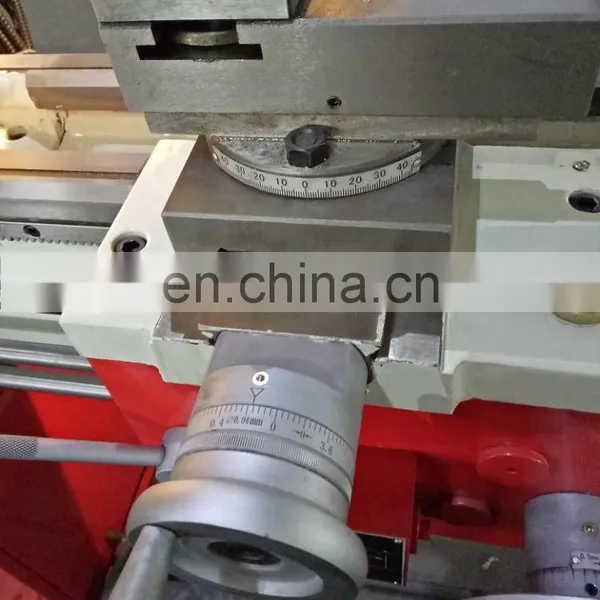

Machine details
