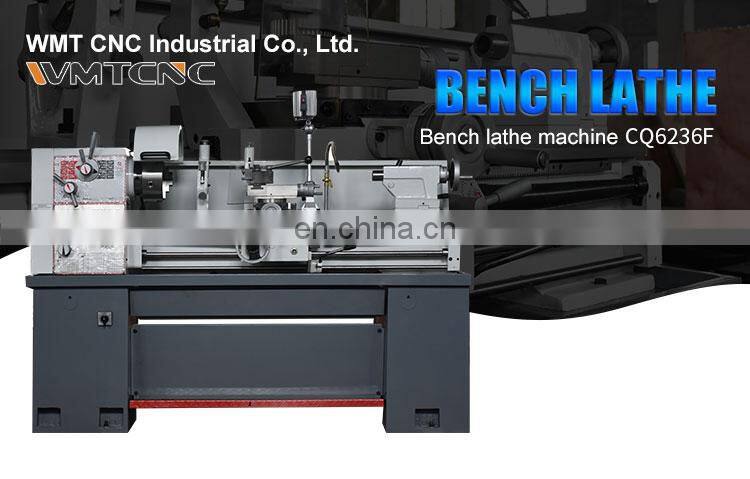

Home > Auto, Motorcycle Parts & Accessories > Auto Engine Structure > Ignition System > CQ6236F High Quality Metal Lathe Machine Cutting Tools
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CQ6232 Good Quality 38mm Bore Bench Machine With CENegotiableMOQ: 1 -
CW62100 Heavy Chinese Gap Lathe Machine Price With Lathe ChuckNegotiableMOQ: 1
-
Metal Lathe Mini D180V 7\" x 12\" Metal Lathes 180mm Metal Lathe for HobbyNegotiableMOQ: 1
-
CD6260B Engine Lathe Machine Price and Specification for Metal Cutting With CENegotiableMOQ: 1
-
CY62100 Manual Metal Precision Gap Heavy Duty Lathe Machine With CENegotiableMOQ: 1
Product Description
Manual Metal Bench Lathe Main Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel ground and hardened.
4. CQ6236F is easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
Specification | CQ6236F |
Max,swing over bed | 356mm |
Max.swing over cross slide | 220mm |
Max.swing in gap | 506mm |
Max.length of workpiece | 1000mm |
Width of bed | 206mm |
Spindle speed range | (16 changes)45-1800rpm |
Spindle bore | 38mm or 51mm |
Spindle nose | D4 or D5 |
Taper of spindle bore | MT5 or MT6 |
Center height | 178mm |
Threads metric pitches | 0.4-7mm/28kinds(Metric lathe)0.45-7.5mm/22kinds(Inch lathe) |
Threads imperial pitches | 4-56TPI/28kinds(Metric lathe) 4-112TPI/40kinds(Inch lathe) |
Compound rest travel | 90mm |
Cross slide travel | 150mm |
Max.section of tool | 16x16mm |
Longitudinal feeds range | 0.043-0.653mm/rev(Metric lathe)0.0012-0.0297in/rev(Inch lathe) |
External diameter | 45mm |
Max.travel | 100mm |
Taper of bore | MT3 |
Main motor power | 1.5/2.4KW |
Coolant pump power | 40W |
Packing size(LxWxH) | 1950X750X1500mm |
Net weight | 700kg |
Gross weight | 800kg |

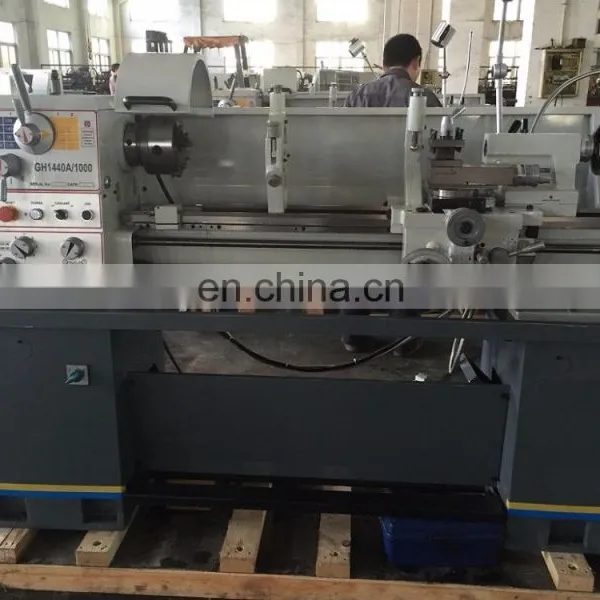

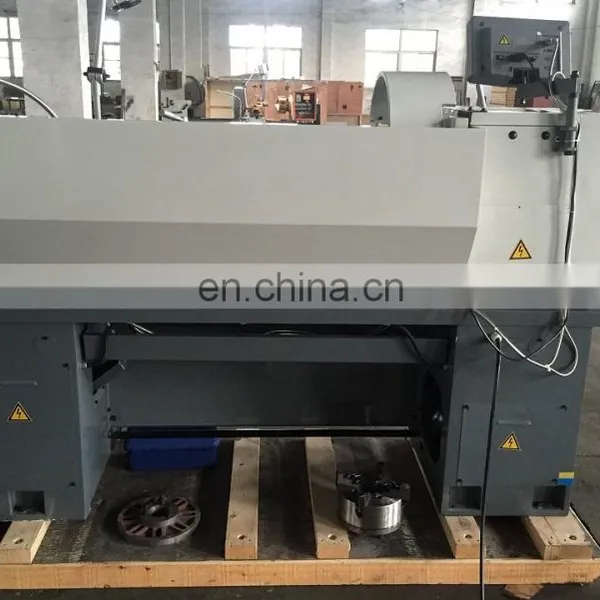

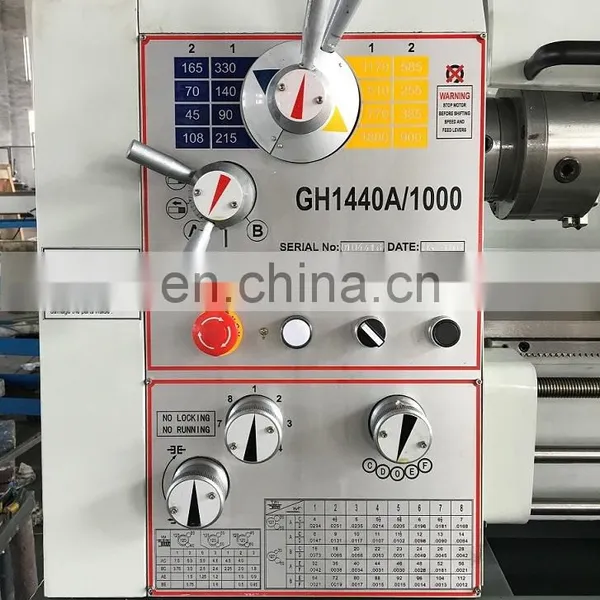

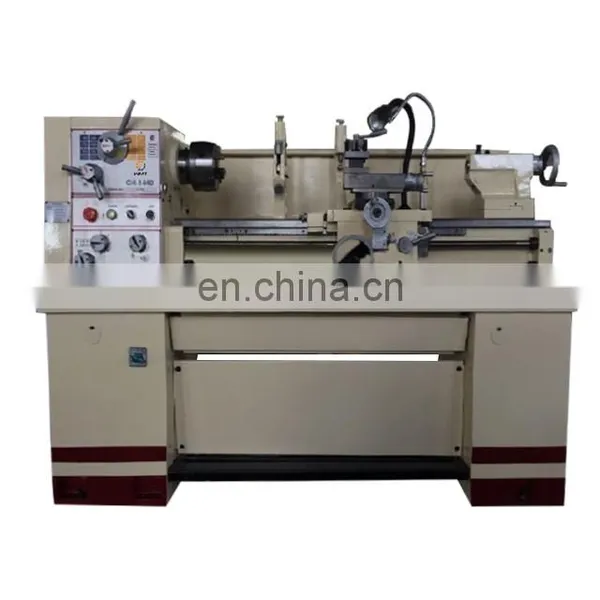

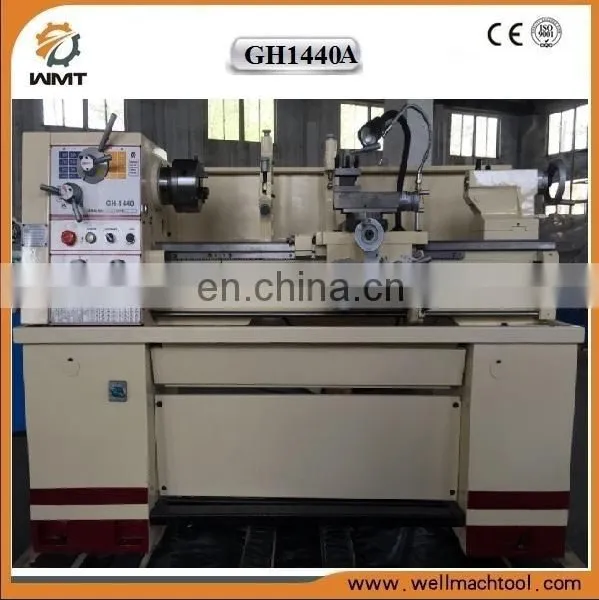

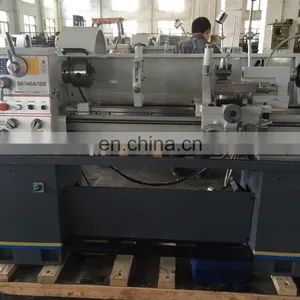

Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
