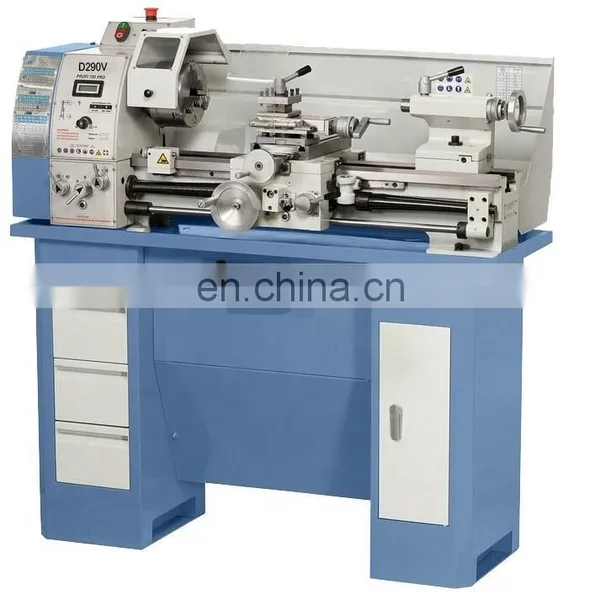

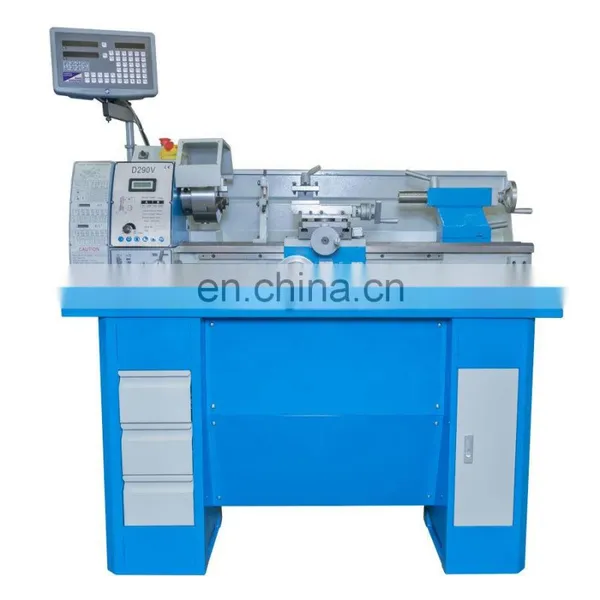

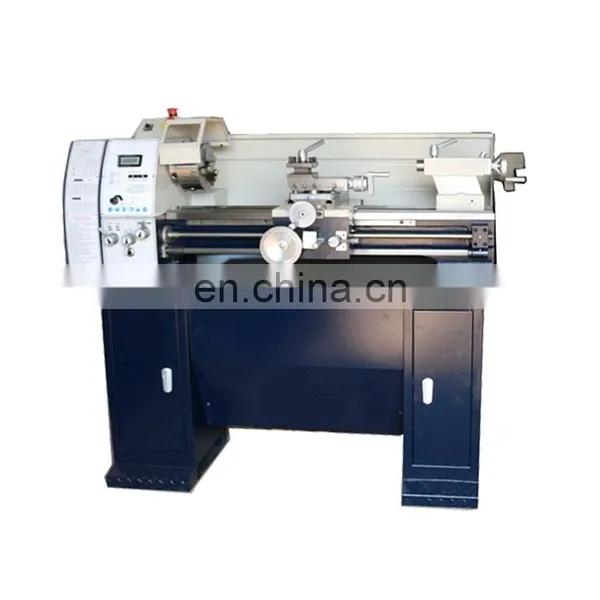

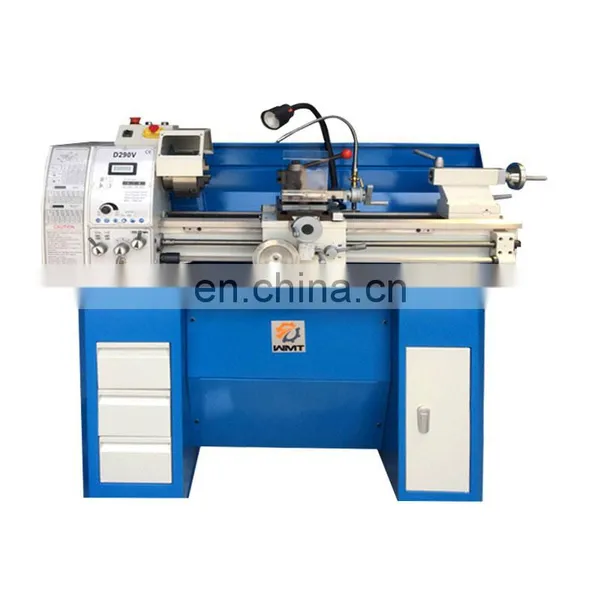

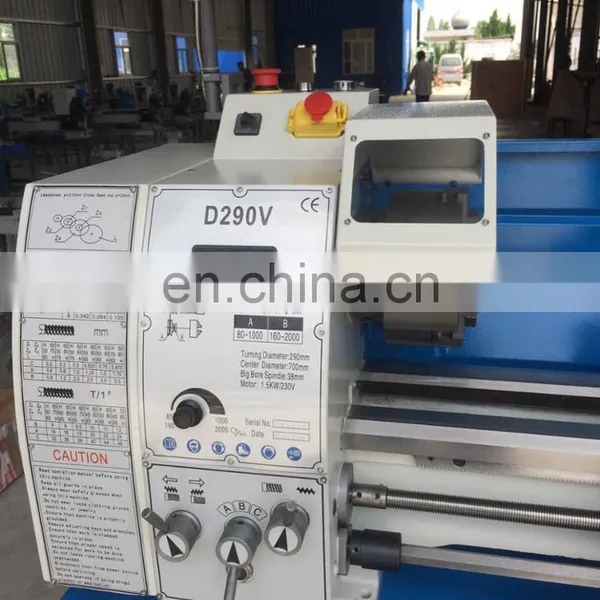

Manual Lathe D290V Mini Metal Lathe Machine With Variable Speed
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
D250V Mini Metal Machine for Metal WorkingNegotiableMOQ: 1 -
CQ6280B Turning Manual Lathe Machine Manufacturer PriceNegotiableMOQ: 1
-
CQ6125 Mini Small Hobby Lathe Machine Price With CENegotiableMOQ: 1
-
C6256 China Big Manual Metal Lathe Machine Price for SaleNegotiableMOQ: 1
-
DIY1028(BVB25L) 8x16 Lathe Mini Metal Lathe With CE StandardNegotiableMOQ: 1
Product Description
Specification |
D290V |
Distance between centers |
700mm |
Swing over bed |
290mm |
Swing over cross slide |
180mm |
Width of bed |
182mm |
Taper of spindle bore |
MT5 |
Spindle bore |
38mm |
Number of spindle speed |
Variable speed |
Range of spindle speed |
80-2000r/min |
Range of cross feed |
0.01~0.10mm/rev |
Range of longitudinal feed |
0.085~0.832mm/rev |
Range of imperial thread |
8~56 T.P.I. |
Range of metric thread |
0.2~3.5mm |
Top slide travel |
70mm |
Cross slide travel |
160mm |
Tailstock quill travel |
70mm |
Taper of tailstock quill |
MT3 |
Main Motor |
1.5KW |
Packing size |
1450X700X680mm |
Net weight |
260Kg |
Detailed Images
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
