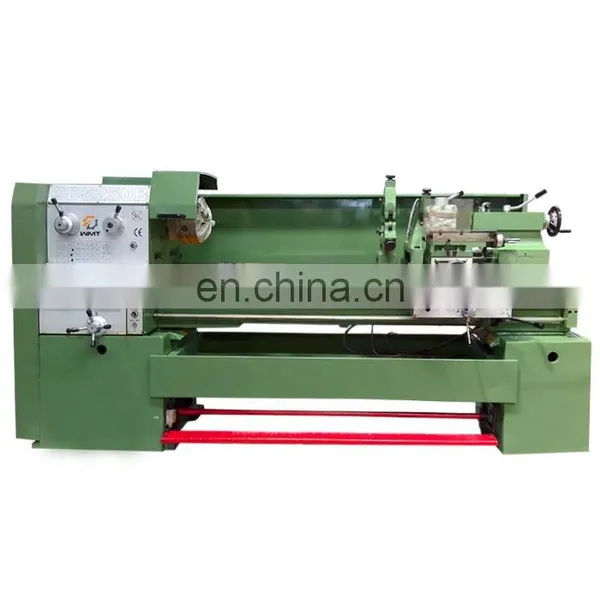

CD6260B Engine Lathe Machine Price and Specification for Metal Cutting With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CY62100 Manual Metal Precision Gap Heavy Duty Lathe Machine With CENegotiableMOQ: 1 -
CQ6232B High Quality Bench Lathe,Manual Bench Lathe Machine With CENegotiableMOQ: 1
-
MPV290 Multi-purpose Lathe Machine Price With CE CertificateNegotiableMOQ: 1
-
CQ6230 Mini Metal Lathe Horizontal Metal Precision Manual Bench Lathe Machine With CENegotiableMOQ: 1
-
Manual Lathe D290V Mini Metal Lathe Machine With Variable SpeedNegotiableMOQ: 1
Features:
Super voice frequency heated bedways cheap cnc lathe machine
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
MODEL |
CD6236B |
CD6240B |
CD6250B |
CD6260B |
|||
CD6236C |
CD6240C |
CD6250C |
CD6260C |
||||
Max.swing over bed |
360mm(14") |
400mm(16") |
500mm(19-3/5") |
600mm(23-3/5") |
|||
Max.swing over cross slide |
185mm(7-1/4") |
225mm(9") |
325mm(13") |
360mm(14") |
|||
Max.swing over gap |
490mm(20") |
550mm(21-1/2") |
630mm(25") |
730mm(29") |
|||
Effective length of gap |
260mm(10-1/4") |
||||||
Center Distance |
1000/1500/2000/3000mm(40"/60"/80"/120") |
||||||
Bed Width |
330mm(13") |
||||||
Spindle hole |
65mm(2-3/5")/80mm(3-3/5") |
||||||
Spindle nose |
ISO-D8 |
||||||
Spindle speed(Number) |
(15steps)24-1600/24-1600rpm(15steps) |
||||||
Longitudinal feeds range |
66kinds 0.072-4.038mm/rev |
||||||
Cross feeds range |
66kinds 0.036-2.019mm/rev |
||||||
Metric threads range |
66kinds 0.5-28 |
||||||
Inch threads range |
66kinds 1-56inch |
||||||
Moudle threads range |
33kinds 0.5-3.5mπ |
||||||
Diametral threads range |
33kinds 8-56D.P |
||||||
Max.travel of top slide |
130mm(5") |
||||||
Max.travel of cross slide |
300mm(12") |
||||||
Max.size of toolshank |
20x20mm/25x25mm |
||||||
Dia.of tailstock sleeve |
65mm(2-1/2") |
||||||
Taper of tailstock sleeve |
MT5 |
||||||
Max.travel of tailstock |
120mm(4-3/4") |
||||||
Main drive motor |
5.5kw |
7.5kw |
|||||
Rapid traverse motor |
250w |
||||||
Coolant pump motor |
125w |
||||||
Center Distance(1000mm) |
2450x1150x17500mm(96x46x71") |
||||||
Center Distance(1500mm) |
2950x1150x17500mm(115x46x71") |
||||||
Center Distance(2000mm) |
3450x1150x17500mm(137x46x71") |
||||||
Center Distance(1000mm) |
1520/2170kg 1350/2000kg |
1560/2210kg 1640/2290kg |
1600/2250kg 1700/2350kg |
1640/2290kg 1800/2500kg |
|||
Center Distance(1500mm) |
1750/2390kg 1850/2550kg |
1770/2410kg 1890/2590kg |
1830/2470kg 1910/2610kg |
1870/2530kg 2010/2760kg |
|||
Center Distance(2000mm) |
/ 2090/2860kg |
2010/2780kg 2090/2860kg |
2070/2820kg 2150/2920kg |
2130/2860kg 2250/3070kg |
|||
Center Distance(3000mm) |
/ |
/ |
/ |
/ |
|||
You may find the accessories as you like:
Details about the machine:
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
