CY62100 Manual Metal Precision Gap Heavy Duty Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CQ6232B High Quality Bench Lathe,Manual Bench Lathe Machine With CENegotiableMOQ: 1 -
MPV290 Multi-purpose Lathe Machine Price With CE CertificateNegotiableMOQ: 1
-
CQ6230 Mini Metal Lathe Horizontal Metal Precision Manual Bench Lathe Machine With CENegotiableMOQ: 1
-
Manual Lathe D290V Mini Metal Lathe Machine With Variable SpeedNegotiableMOQ: 1
-
D250V Mini Metal Machine for Metal WorkingNegotiableMOQ: 1
Product Description

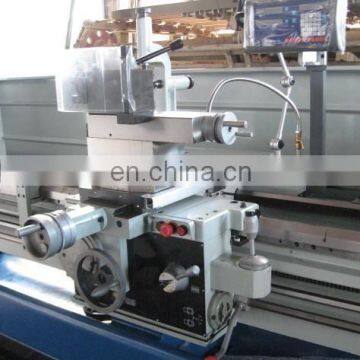

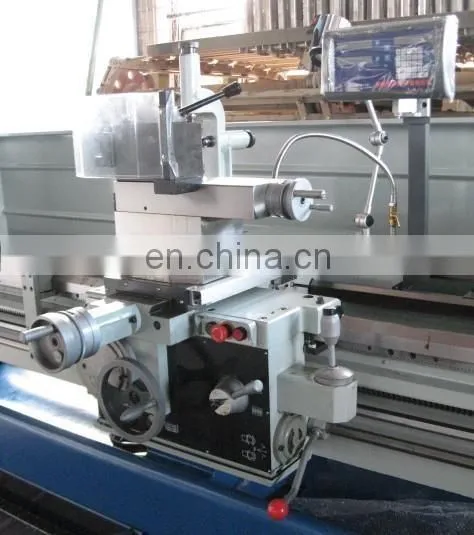

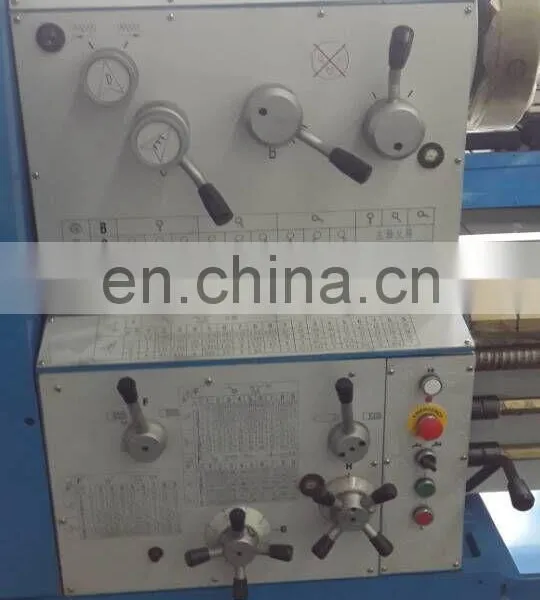

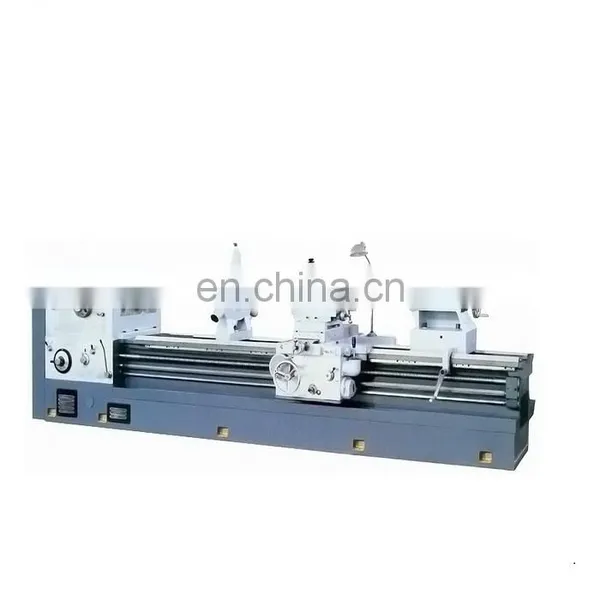

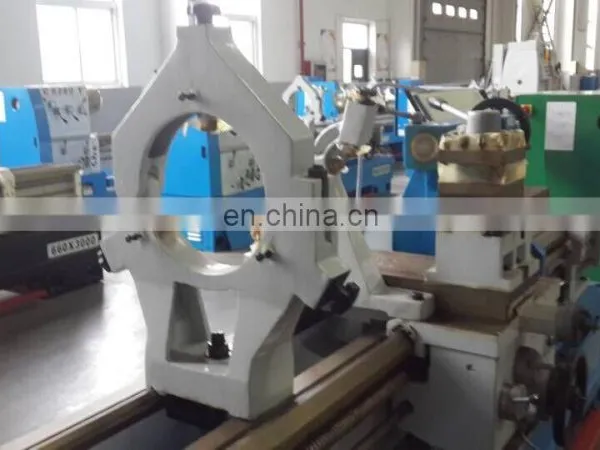

CY62100 manual metal percision gap heavy duty lathe machine with CE
| SPECIFICATION | Unit | CY6266 | CY6280 | CY62100 |
| Max.swing over bed | mm(in) | 660(27 1/2") | 800(33 5/16") | 1000(62 1/2") |
| Max.swing over cross slide | mm(in) | 435(18 1/8") | 560(23 5/16") | 705(44") |
| Max.swing over gap | mm(in) | 860(35 13/16") | 1000(41 11/16") | 1200(75") |
| Effective length of gap | mm(in) | 280 | ||
| Center Distance | mm(in) | 1000/200/3000/4000 | ||
| Bed Width | mm(in) | 400(16 11/16") | ||
| Spindle hole | mm(in) | 103 | ||
| Spindle nose | ISO-D11 | |||
| Spindle taper | mm(in) | Metric 115 | ||

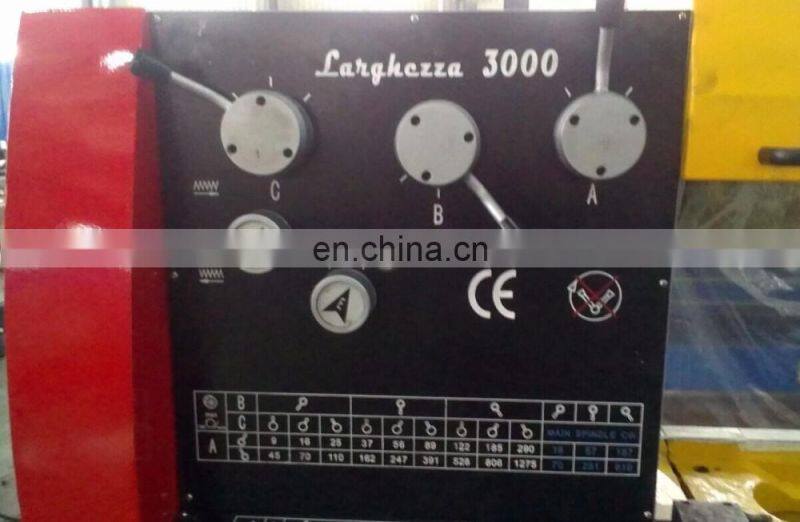

| Spindle speed(Number) | rpm | (ccw/18)9-1275 (cw/6)16-816 | ||
| Longitudinal feeds range | mm/rev. | 72kinds 0.073-4.066 | ||
| Cross feeds range | mm/rev. | 72kinds 0.036-2.033 | ||
| Metric threads range | mm/in | 72kinds 0.5-112 | ||
| Inch threads range | inch | 72kinds 1/4-56 | ||
| Moudle threads range | mπ | 36kinds 0.5-7 | ||
| Diametral threads range | D.P | 36kinds 4-56D.P | ||
| Max.travel of top slide | mm/in | 110 | ||
| Max.travel of cross slide | mm/in | 325 | ||
| Max.size of toolshank | m2 | 32×32 | ||
| Dia.of tailstock sleeve | mm/in | 90 | ||
| Taper of tailstock sleeve | MT6 | |||
| Max.travel of tailstock | mm/in | 150 | ||
| Main drive motor | Kw | 7.5 | 11 | |
| Rapid traverse motor | W | 250 | ||
| Coolant pump motor | W | 125 | ||
| Center Distance(1000mm) | mm/in | 2850×1150×18500 | ||
| Center Distance(2000mm) | mm | 3850×1150×18500 | ||
| Center Distance(3000mm) | mm | 4850×1150×18500 | ||
| Center Distance(1000mm) | kgs | 3000/3500 | 3150/3650 | 3300/3700 |
| Center Distance(2000mm) | kgs | 3500/4000 | 3650/4150 | 3800/4200 |
| Center Distance(3000mm) | kgs | 3900/4400 | 4050/4550 | 4200/4600 |
