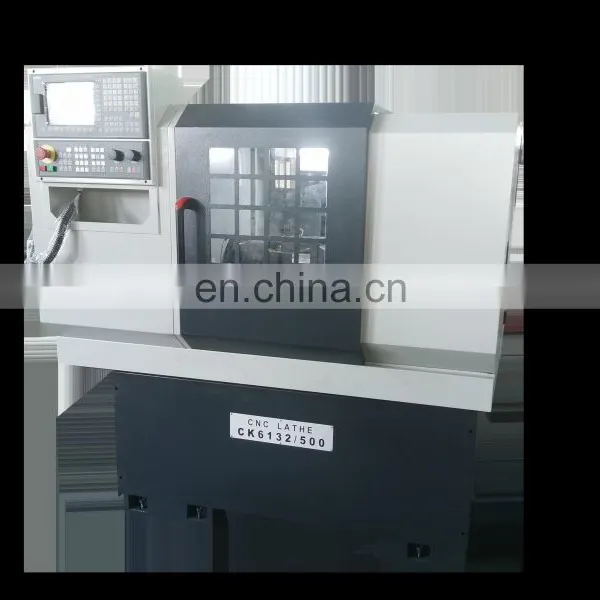

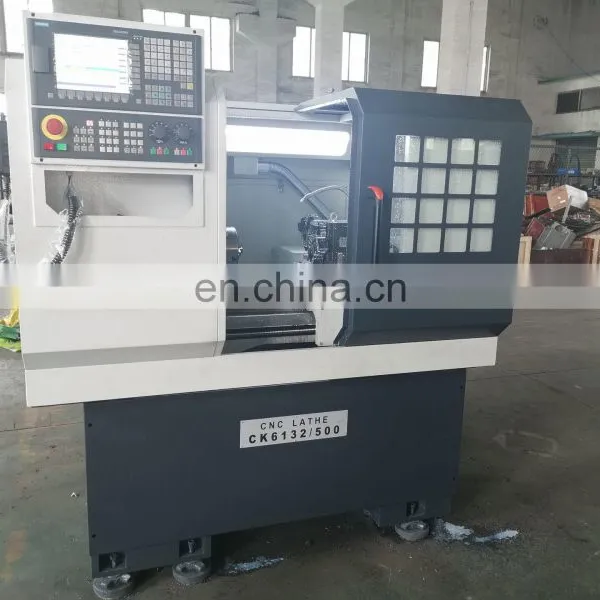

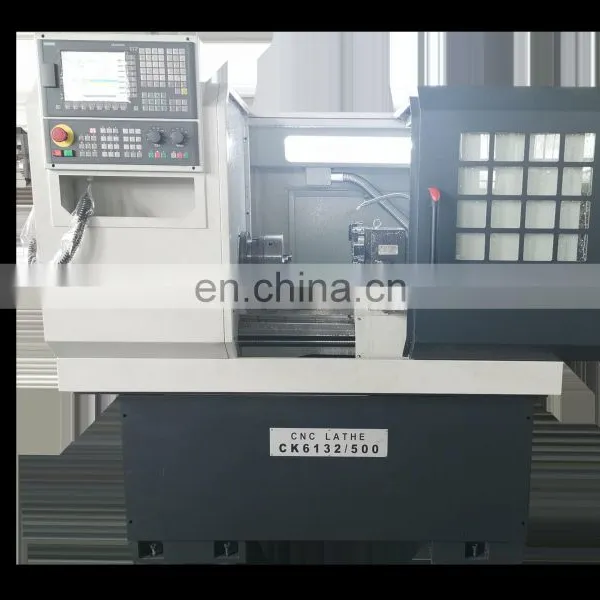

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe thumbnail-3

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe thumbnail-4

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe thumbnail-5

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe photo-1

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe photo-2

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe photo-3

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe photo-4

Ck6132 Cnc Lathe From China Type Cnc Automatic Lathe photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

CNC Lathe CK6150

91.8% Response Rate

CNC milling machine VMC850L

91.8% Response Rate

Manual Lathe CS6266C

91.8% Response Rate

Products Description

CNC lathe CK6132 Features:

1. High rigidity casting bed;
2. High precision spindle bearing;
3. Bed guideways industively hardened.

Specification	CK6132x500/750/1000mm
Max.swing over bed	Φ320 mm
Max.swing over carriage	Φ150 mm
Distance between centers	500/750/1000mm
Spindle bore	40mm
Spindle nose	A2-5
Rail width	212mm
Taper of spindle bore	MT5
Chuck	6''
Range of speed (Variable)	150-2500 rpm
X axis travel	180mm
Z axis travel	500/750/1000mm
X/Z rapid speed	4/7m/min
X/Z screw	2004/4006
Station of toolpost	4 or 6
Max. section of tool	2020mm or 1616mm
Stroke of tailstock sleeve	100mm
Dia./hole of tailstock sleeve	32mm/MT3
Main motor power	2.2kw or 3.7kw
Coolant pump power	120w
Overall dimenstion (LWH)	1600/1920/2100x1120x1750mm
Packing size (LWH)	1815/2120/2300x1300x2000mm
NW/GW	800/900/1050kg;950/1050/1200kgs

Detailed Images

Standard Accessories

Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Manual 3-jaw chuck

Optional Accessories

GSK218M controller
Simens 808D controller, Advance controller
Fanuc Oi TF controller
6-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)

Gang tools type
