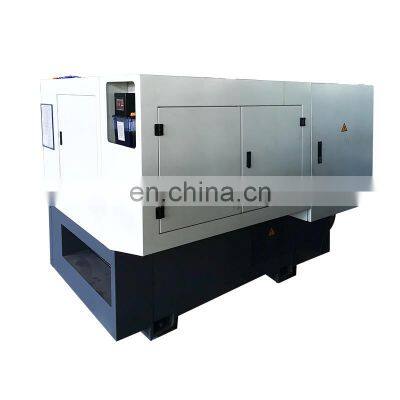

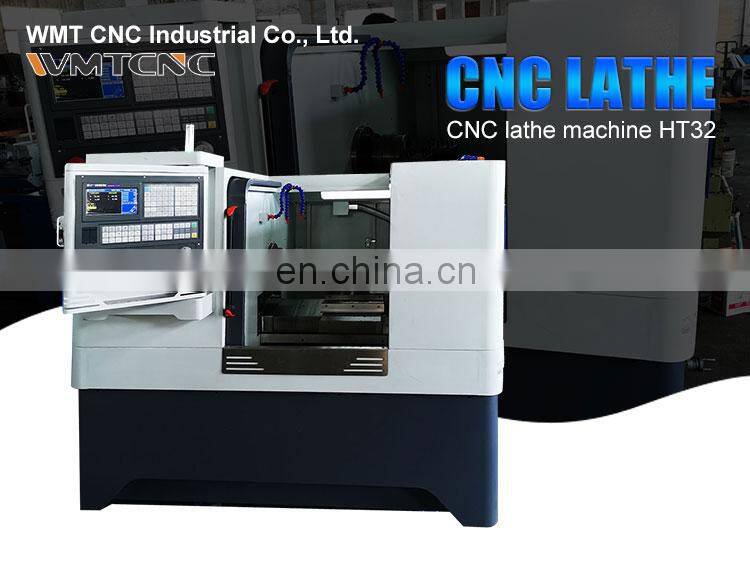

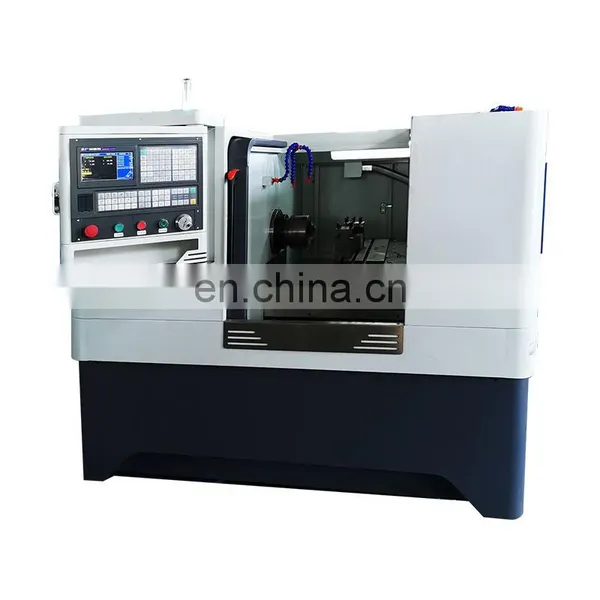

HT32 Flat Bed Double Linear Guides Horizontal CNC Lathe With High Precision
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M42-I High Precision Swiss Type Cnc Lathe With Cheap PriceNegotiableMOQ: 1 -
2021 Hot Selling High Precision CK40L Full-automatic Slant Bed Cnc Lathe Machine for Metal WorkingNegotiableMOQ: 1
-
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CENegotiableMOQ: 1
-
CK0625A Good Rigid CNC Lathe Machine With CENegotiableMOQ: 1
-
Cnc Lathe Machining CK5120 Vertical Lathe Hiot Sale With CENegotiableMOQ: 1

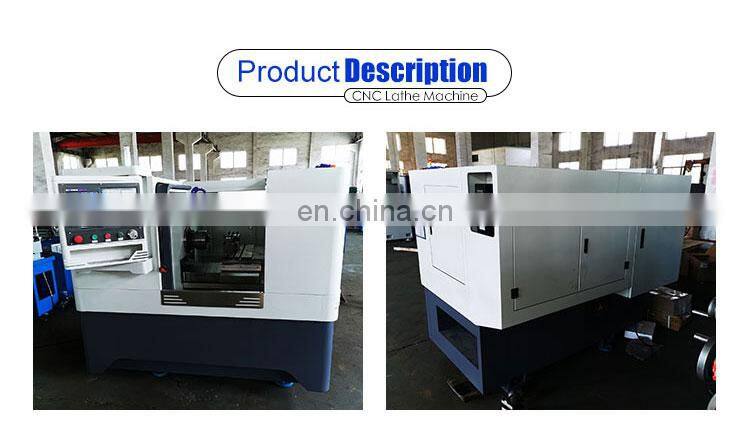

Product Description
Machine features of cnc lathe:
1.Double linear guides for X & Z axis 2.Intermediate ball screw 3.Adaptable to various control systems such as GSK,KND, Siemens, Fanuc, etc 4.Different appearance shapes such as square,circular arc and so on 5.Optimized guide rail structure by double trianglesSteady integral cast iron footSpecificatin | HT32 |
Max. swing over bed | Φ350mm |
Max. swing over cross slide | Φ180mm |
Max. length of workpiece | 250mm |
Width of bed | 350mm |
Spindle speed range | 150-2500mm |
Spindle bore | Φ49mm |
Spindle nose | A2-5 |
Taper of spindle bore | MT6 |
Chuck diameter | Φ160mm |
X-axis travel | Φ350mm |
Z-axis travel | 300mm |
X-axis Rapid traverse | 8m/min |
Z-axis Rapid traverse | 10m/min |
Tool station number | 4 or 6 or Tool array |
Max.section of tool | 20X20 |
Main motor power | 4KW |
Coolant pump power | 120W |
Overall dimension(LxWxH) | 1880X1377X1610mm |
Packing size(LxWxH) | 1980X1477X1800mm |
Net weight | 1300Kg |
Gross weight | 1500Kg |
Standard configuration
Integral cast iron foot
Conventional main motor3-jaw manual chuck
Tool array
Work light
Automatic lubrication systemAutomatic cooling systemDead center
Leveling block set
Tool box & tools
No tailstock
Optional configuration
Variable frequency main motorServo main motor
Spindle unit
Hydraulic chuck & tailstockPneumatic chuck & tailstock4 or 6-position electric turretSpring collet
Power head
Robot arm
Automatic bar-feeder

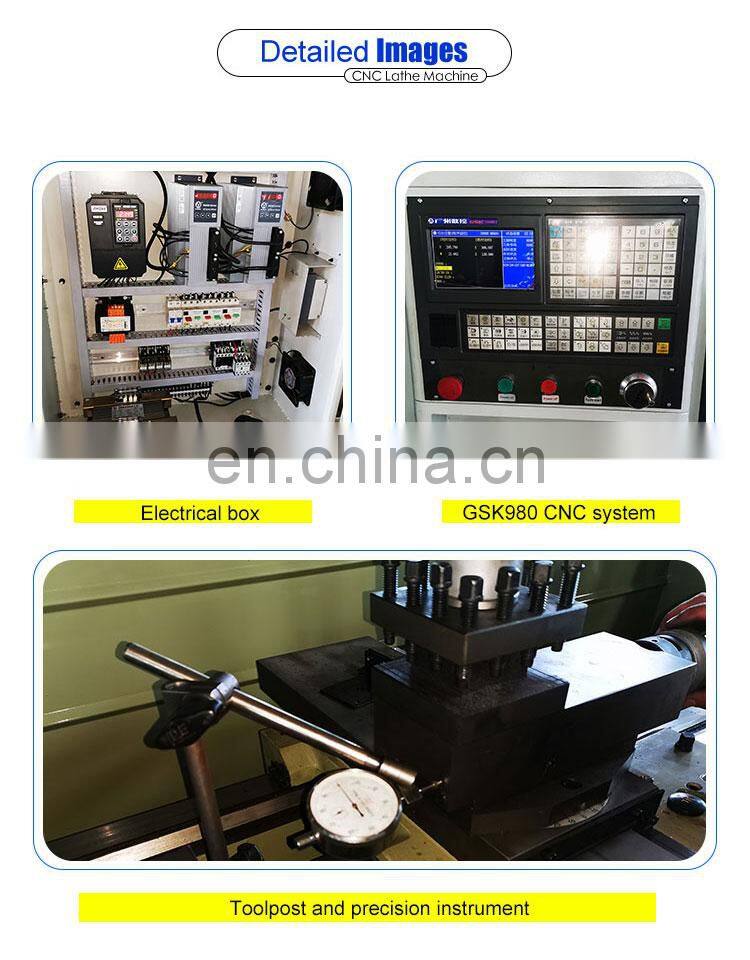

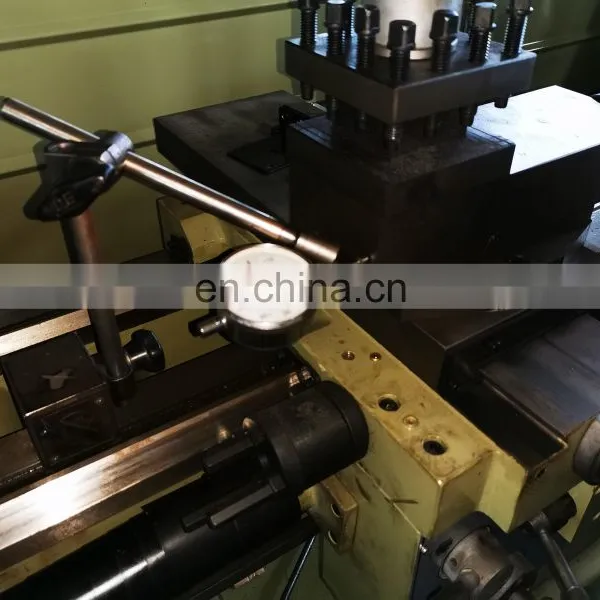

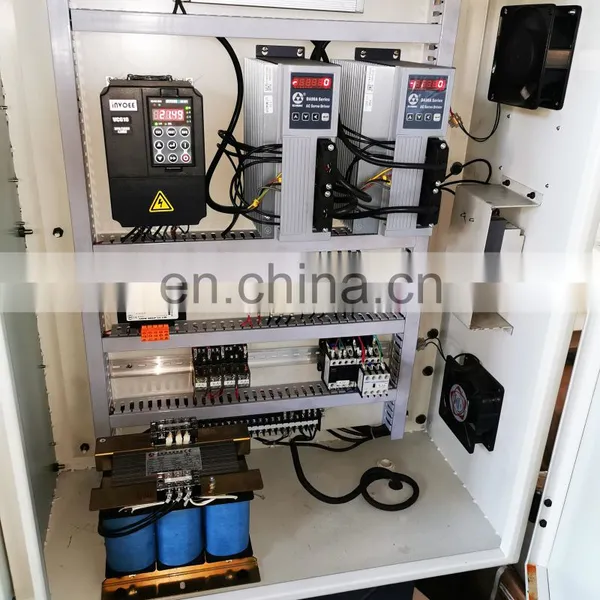

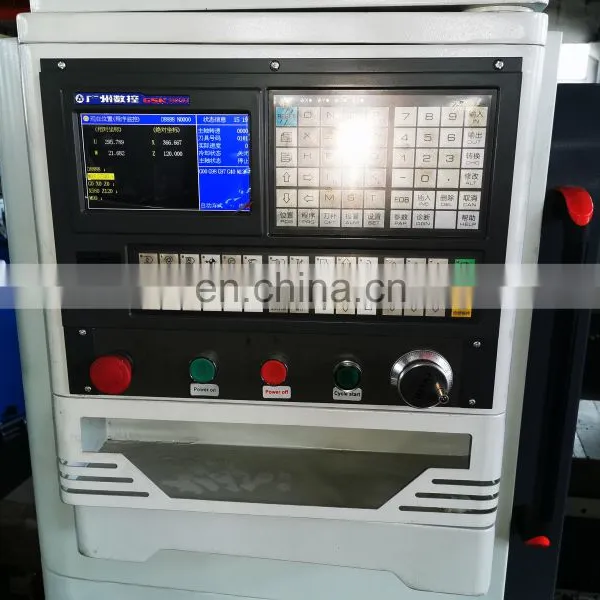

Details Images

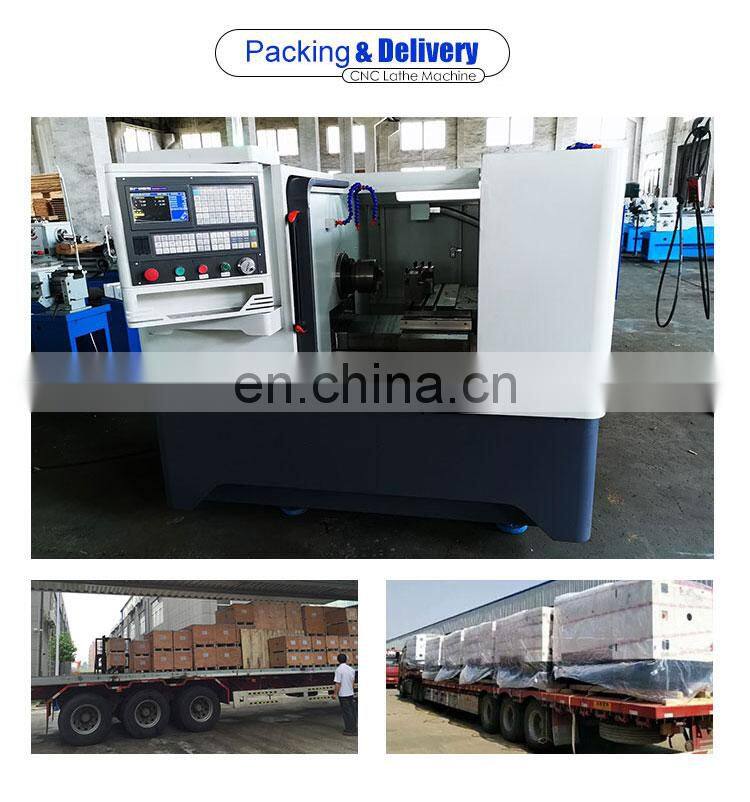

Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
Related Products

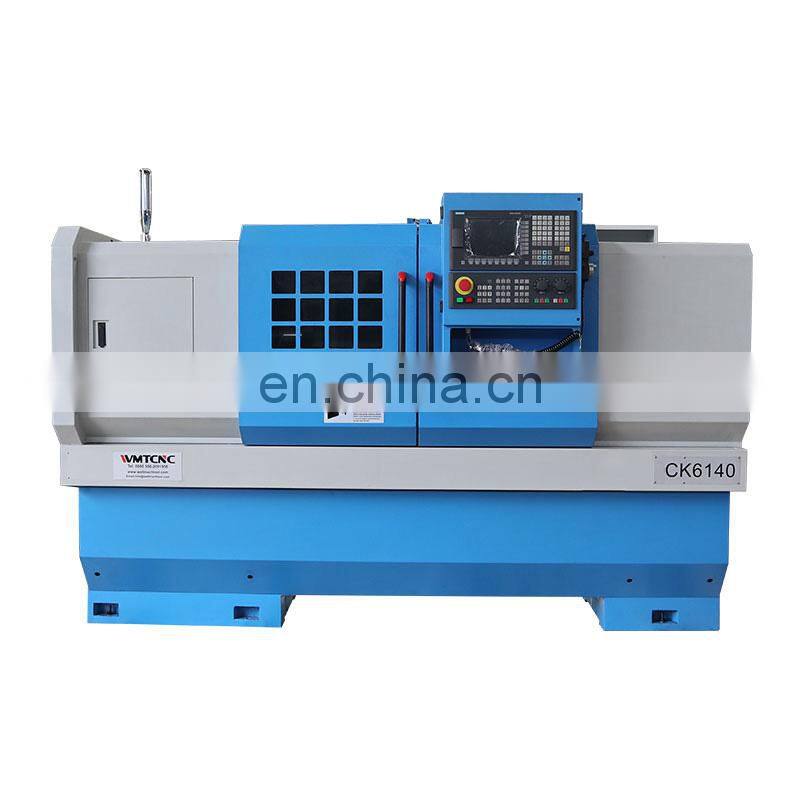

CNC lathe machine CK6140
