SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE

SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE thumbnail-1
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE thumbnail-2
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE thumbnail-3
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE thumbnail-4
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE thumbnail-5
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE photo-1
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE photo-2
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE photo-3
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE photo-4
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CE photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Main Features:
1. The SGL280 features a high-quality, heavy cast iron bed.

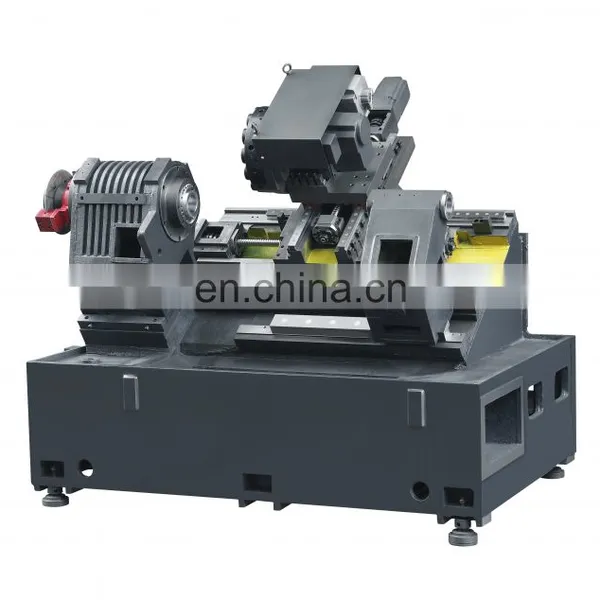

2. The bed is heat treated and annealed to provide a strong foundation for the SL series of lathes. 3. The single piece 35 degree slant bed design is extremely rigid - able to withstand heavy cutting forces. 4. The SL280 will consistantly produce high precision parts parts for the long-term. 5. Heat treated and annealed high quality cast iron base-provides strong foundation for the high speed, highly accurate SL Series of CNC Lathes. 6. True slant bed design is highly rigid and withstands heavy cutting forces. 7. Slant bed also allows for easy operator access and efficient chip removal. 8. The combination of high X/Z rapid speeds and gang tool set-up increases productivity tremendously.
9. Highly accurate parts at the lowest cost. 10. Quality machine at a value price-High volume production and good QC.
Specifications
Unit
SGL280
Capacity
Chuck/collet
Hydraulic Collet
*Hydraulic Chuck 6", *8"
Max. swing dia. over bed
mm
Ф420
Max. length of workpiece
mm
Collet 240, * Chuck 210
Max. swing dia. over slide
mm
Ф140
Spindle
Spindle bore
mm
Ф48
*Ф55
*Ф62
*Ф81
Max. dia. of through-hole
mm
Ф40
*Ф46
*Ф52
*Ф70
Spindle nose
A2-5
*A2-5
*A2-6
*A2-8
Max. Spindle speed
rpm
3000
*4500
*2500
*2000
*4000
*1 600
*4500
*5000
Main motor power
kW
3.7/5.5, *5.5/7.5
Axis
X travel
mm
280
Z travel
mm
240
X/Z rapid traverse
m/min
28/28
Toolpost
Type
Gang type
NO. of too stations
No.
4~6
OD lol and bore loo shank
mm
20x20/ Ф25
Structure
Inclined bed degree
35
Guideway type
LM
Others
Power capacity
kVA
11
Dimensions(LxWxH)
mm
1750x1320x1500
Weight(about)
kgs
2000

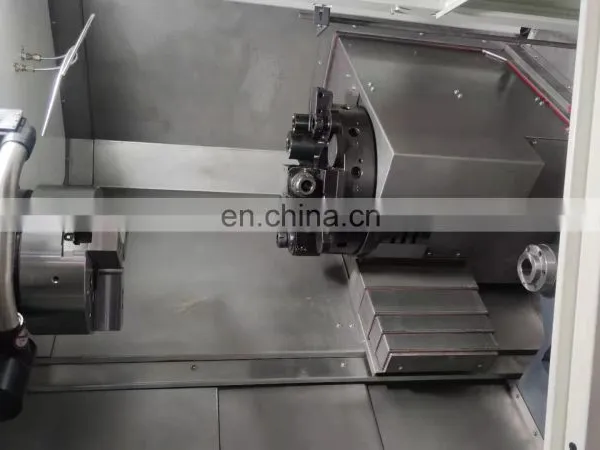

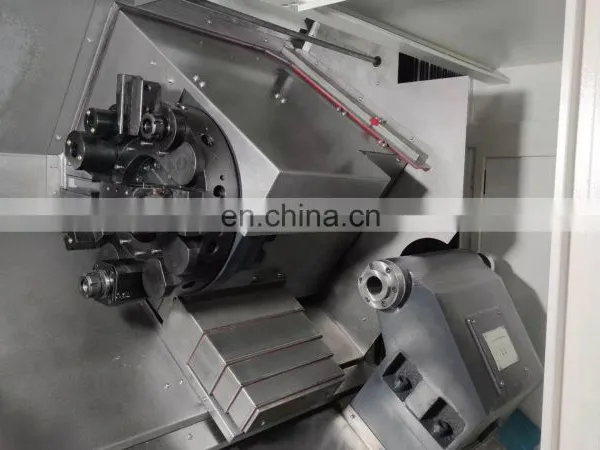

Detailed Images
Packing Delivery
Company profile
FAQ


Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?
A4: One set only.

Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
