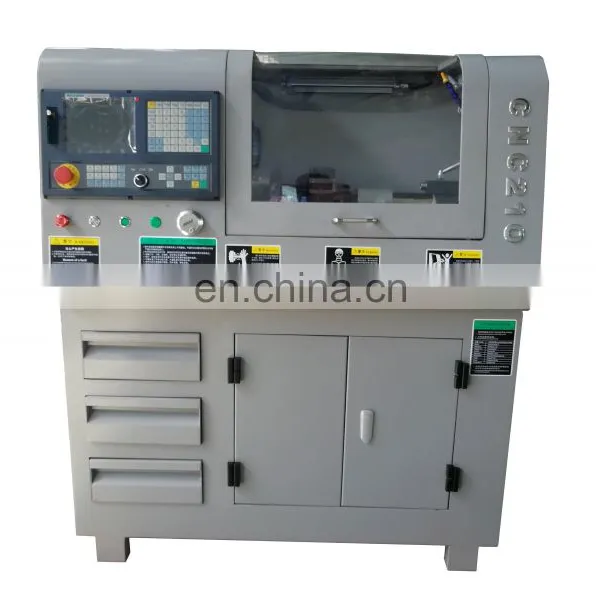

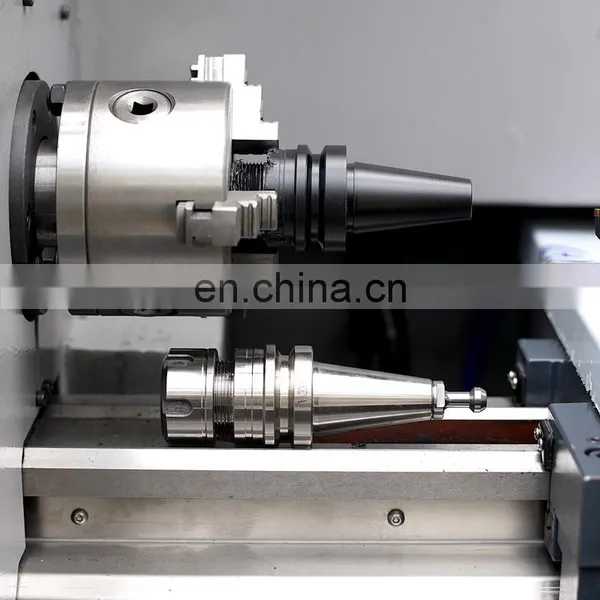

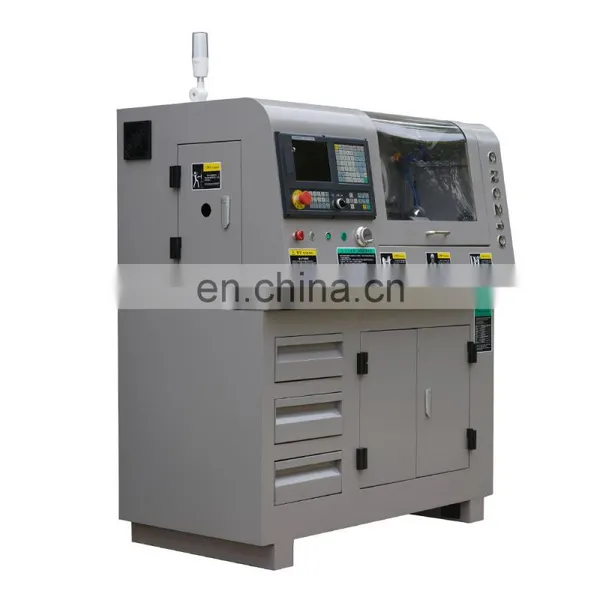

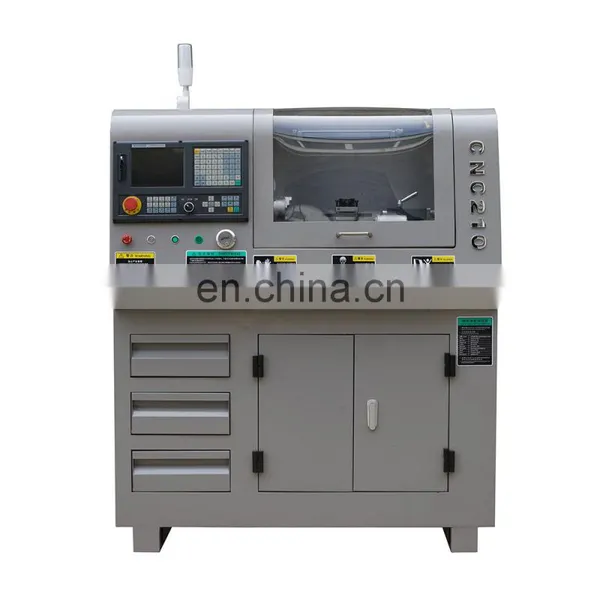

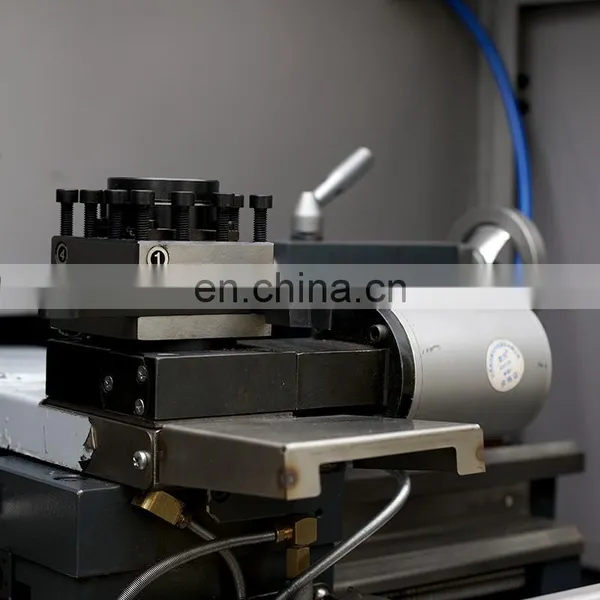

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller thumbnail-3

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller thumbnail-4

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller thumbnail-5

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller photo-1

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller photo-2

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller photo-3

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller photo-4

CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC Controller photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

CNC120 CNC Lathe with below features:

1.DC brushless spindle motor.
2.The machine can process precisely internal or external diameter,face,taper and threading with high efficiency.
3.Small occuping, lower energy consumption,easy operation,suitable for small processing.
4,High-quality spindle by high-precision grinding and support by Angular contact bearing.
5.Induction harden bed-way,Bed saddle with plastic sticker can improve the accuracy and service life of machine.
6.Macro arithmetic operation can be performed,the processing of complex parts,fully functional,economical and practical with a textbook for teaching.

Specification	CNC210
Max. swing over bed	210mm
Distance between centers	400mm
Spindle bore dia.	26mm
Spindle taper	MT4
Spindle speed	3000rpm
Tool post	4-position
Gangtool bar size	12mm
X-axis travel	90mm
Z -axis travel	300mm
X moving speed	2000mm/min
Z moving speed	2000mm/min
Spindle motor power	1.2kw
X motor torque	3N.m
Z motor torque	3N.m
Min. setting unit	0.001mm
Tailstock dia.	22m
Tailstock tavel	50mm
Tailstock taper	MT2
Overall size	1170X700X860mm
N.W	200kgs

Detailed Images

Company profile

FAQ

Q1: How is the warranty? A1: Warranty time is 13 months after BL date. Q2:Can we visit your factory before order? A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3:Do you have a stock? A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs. Q4:What’s the MOQ? A4:One set only. Q5:How about your quality? A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. Q6:Do you have professional engineers? A6:Yes.we have professional engineers and designers. We can provide OEM services. Q7:Can you provide customized machines? A7:Yes, we can design and manufacture according to your specific requirements.
