2021 Hot Selling High Precision CK40L Full-automatic Slant Bed Cnc Lathe Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SGL280 Hot Sales Slant Bed Cnc Lathe Machine From China Factory With CENegotiableMOQ: 1 -
CK0625A Good Rigid CNC Lathe Machine With CENegotiableMOQ: 1
-
Cnc Lathe Machining CK5120 Vertical Lathe Hiot Sale With CENegotiableMOQ: 1
-
CK5120 Single Column CNC Vertical Lathe From China Factory With High PrecisionNegotiableMOQ: 1
-
CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC ControllerNegotiableMOQ: 1
Products Recommend
Product Description
Slant Bed CNC Lathe Main Features：
1. High rigid 45°slant bed.
2. X/Z Taiwan linear guideway.
3. X/Z Taiwan precision ballscrew.
4. Artistic appearance with high precision.
5. Suitable for good precision workpiece.
Our products are hot sale in domestic market, meanwhile, they have been exported to Europe, America, Southeast Asia and other countries.
3. X/Z Taiwan precision ballscrew.
4. Artistic appearance with high precision.
5. Suitable for good precision workpiece.
Our products are hot sale in domestic market, meanwhile, they have been exported to Europe, America, Southeast Asia and other countries.
MODEL |
CK40L |
||
Distance between centers |
500mm |
750mm |
|
Max. swing over bed |
Φ400mm |
||
Max. Spindle speed |
4000rpm |
||
Spindle bore |
Φ 62mm |
||
Chuck diameter |
Φ200mm |
||
X axis travel |
240 mm |
||
Z axis travel |
500 mm |
750mm |
|
X/Z axis Rapid traverse |
15 / 15 m/min |
||
Tool station number |
8 |
||
External diameter |
Φ75 mm |
||
Max. travel |
80 mm |
||
Spindle motor power |
7.5 KW |
||
Coolant pump power |
120W |
||
Overall dimension(L×W×H) |
2800 x1800x1800mm |
3150 x1800x1800mm |
|
Packing size(L×W×H) |
3000 x2000x2000mm |
3450 x2000x2000mm |
|
Net/Gross weight |
2800/3100kg |
3000/3300kg |
|

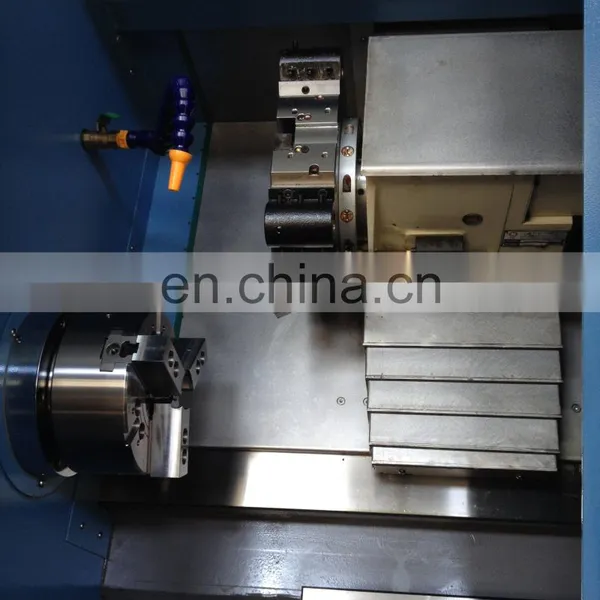

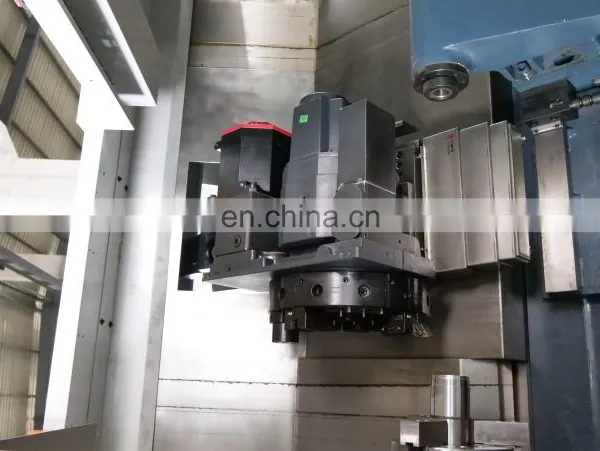

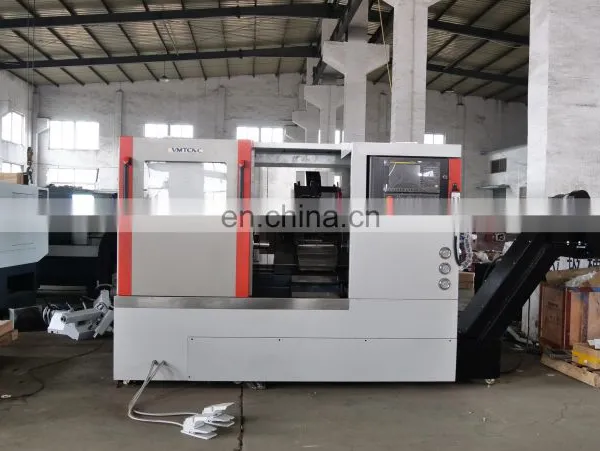

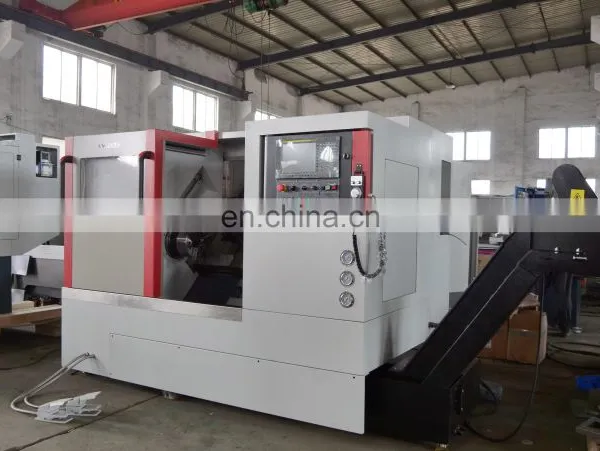

Detailed Images
Standard Accessories: |
Optional Accessories: |
1. Fanuc Controller |
1. Siemens, GSK controller |
2. Feed motor and driver |
2. 6 or 8-station electric turret |
3. Hydraulic 3-jaw chuck |
3. 12-station Hydraulic turret |
4. Hydraulic tailstock |
4. Conveyor |
5. Hydraulic 8-station turret |
5. Spring collet |
6. Cartridge type spindle |
Company Profile
WMT CNC Industrial Co., Ltd is a professional manufacturer and experienced exporter of machine tools. The machines we have sold are enjoy wide popularity in the world.
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
