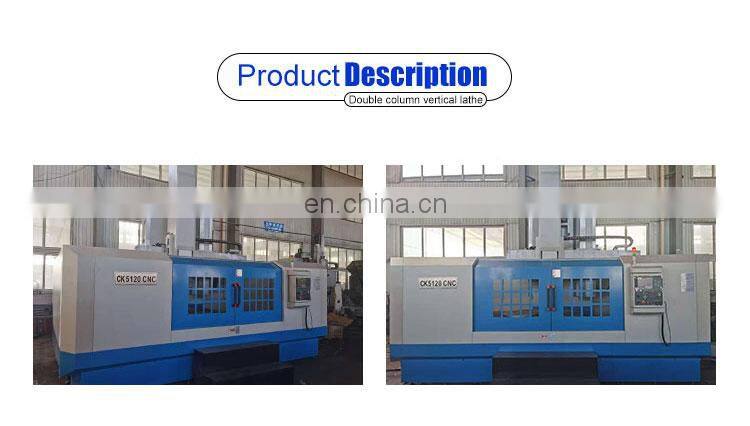

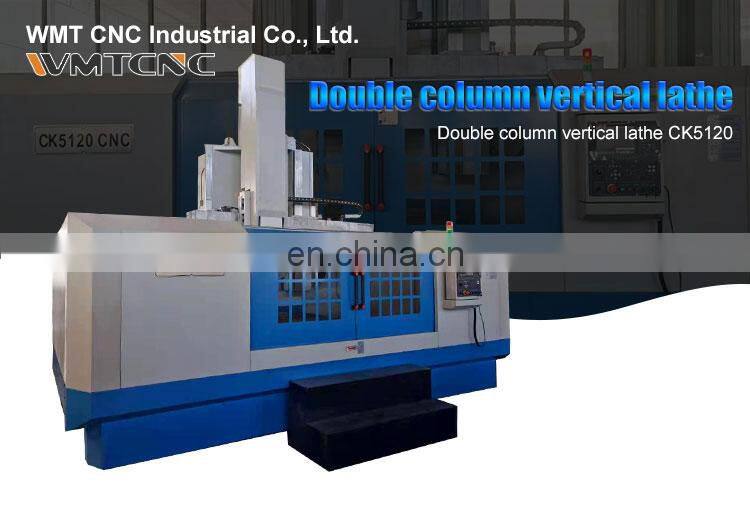

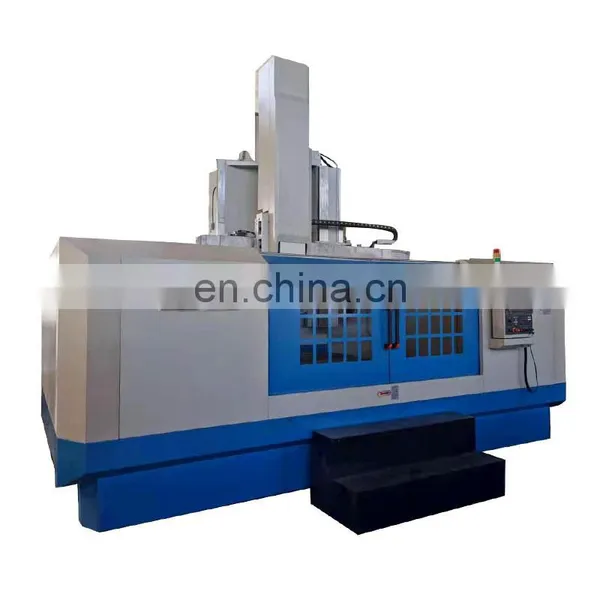

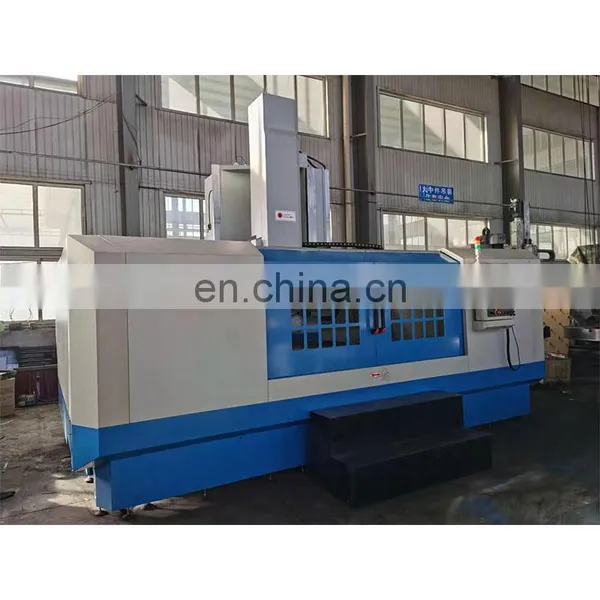

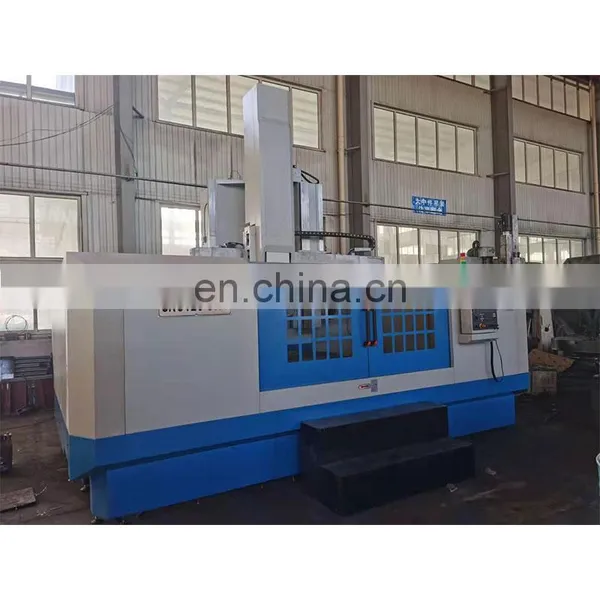

Cnc Lathe Machining CK5120 Vertical Lathe Hiot Sale With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK5120 Single Column CNC Vertical Lathe From China Factory With High PrecisionNegotiableMOQ: 1 -
CNC 210 Mini Lathe Machine for School Education and DIY Hobby Users With After Chinese CNC ControllerNegotiableMOQ: 1
-
1000mm Automatic Flat Bed Cnc Lathe Machine CK6140 With GSK Controller for Metal TurningNegotiableMOQ: 1
-
High Precision Mini Slant Bed CNC Lathe Machine CK36L for Metal Threading With CENegotiableMOQ: 1
-
Hot Sale 1000mm CK6150 Horizontal CNC Lathe Machine for Metal WorkingNegotiableMOQ: 1
Main features:
1. This vertical CNC lathe is a advanced equipment of high performance, widely technology range, high production efficiency. It lathe is apply to machining of all industries. Rough and finish machining of inside&outside cylindrical surface, circular conical
surface, end face, grooving, arc surface, sorts of curve face and thread
2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to
centering to centering. Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big bearing capacity, small thermal deformation.
3. The lathe feed adopts AC servo motor, ball screw for drive. Rail head of cross beam equipped with close shield, increase the safety and the amenity
4. The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed

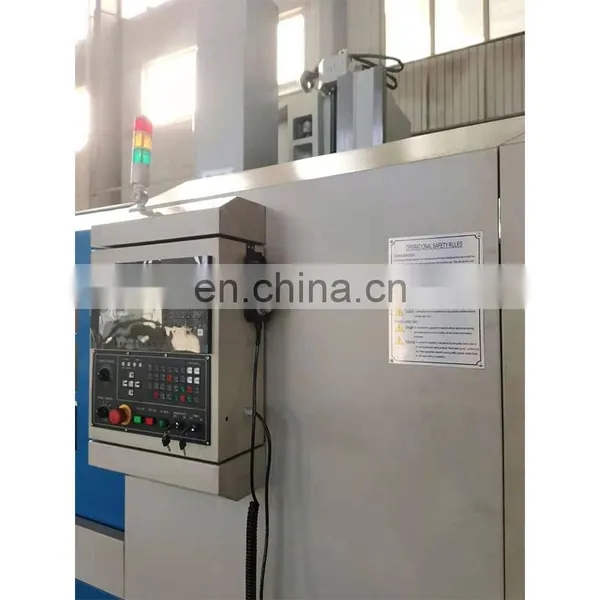

5. CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover housing, chip removal and cooling liquid recovery device
6. Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55
surface, end face, grooving, arc surface, sorts of curve face and thread
2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to
centering to centering. Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big bearing capacity, small thermal deformation.
3. The lathe feed adopts AC servo motor, ball screw for drive. Rail head of cross beam equipped with close shield, increase the safety and the amenity
4. The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed
5. CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover housing, chip removal and cooling liquid recovery device
6. Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55
Specification | CK5120 |
Table dia. | 1800mm |
Max. turning dia. | 2000mm |
Max. workpiece height | 1250/1600mm |
Max. workpiece weight | 8t |
Table speed step | 16 |
Table rotation speed range | 3.2-100(5-160)r/min |
Horizontal travel of toolpost (X-axis) | 1110mm |
Vertical travel of toolpost (Z-axis) | 800/1000mm |
Crossam ram travel | 890mm |
Tool bar section size(Lx W) | 30x40mm |
Main motor power | 30kw |
N.W | 18.2/19.2t |
Overall size(LXWXH) | 3210x2850x3910/4310mm |
